Features
High-Power Performance

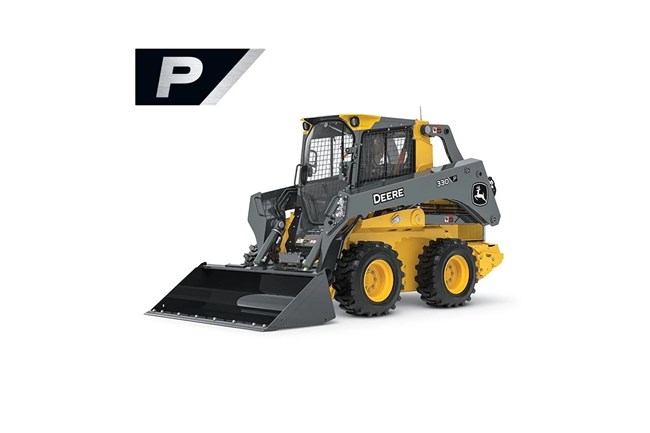

With 98 hp (73 kW) and a 2,950‑lb (1338 kg) rated operating capacity, the 330 P‑Tier delivers the muscle needed for grading, material handling, and site work without sacrificing maneuverability.
Redesigned Cab and Improved Visibility
A sealed, pressurized cab with increased glass area improves visibility and reduces noise, while optional comfort upgrades help operators stay focused during long workdays.

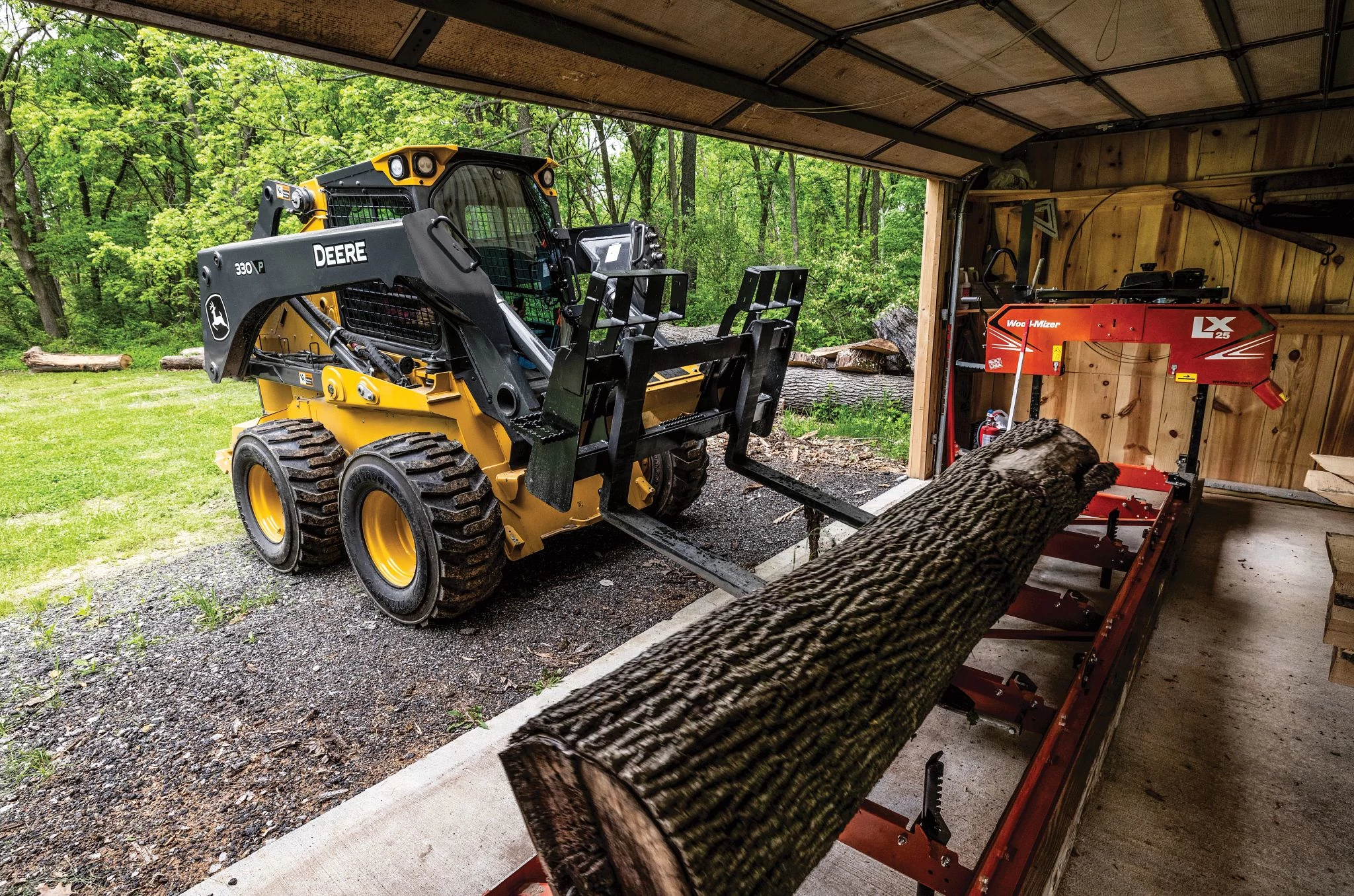

Versatile Hydraulics & Attachment Capability
Responsive hydraulics and compatibility with a wide range of attachments allow the 300 Series P‑Tier to adapt easily to changing tasks on the jobsite.
Specifications
Machine Dimensions
| Length Without Bucket (in.) | 125 in. |
| Length Without Bucket (ft, in.) | 10, 5 ft, in. |
| Length With Foundry Bucket (in.) | 150.7 in. |
| Length With Foundry Bucket (ft in.) | 12, 7 ft, in. |
| Width Without Bucket (in.) | 78.5 in. |
| Width Without Bucket (ft in.) | 6, 7 ft, in. |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 86.25 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 7, 2 ft, in. |
| Height To Hinge Pin (in.) | 132.3 in. |
| Height To Hinge Pin (ft in.) | 11, 0 ft, in. |
| Dump Height, Foundry Bucket (in.) | 106.1 in. |
| Dump Height, Foundry Bucket (ft in.) | 8, 10 ft, in. |
| Dump Reach, Foundry Bucket (in.) | 28 in. |
| Dump Reach, Foundry Bucket (ft in.) | 2, 4 ft, in. |
| Dump Reach, Construction Bucket (in.) | 35.6 in. |
| Dump Reach, Construction Bucket (ft in.) | 3, 0 ft, in. |
| Wheelbase (in.) | 49.9 in. |
| Wheelbase (ft in.) | 4, 2 ft, in. |
| Ground Clearance (in.) | 9.7 in. |
| Ground Clearance (ft in.) | 0, 10 ft, in. |
| Angle Of Departure Degree | 23 degree (angle) |
| Front Turn Radius, Foundry Bucket (in.) | 84.25 in. |
| Front Turn Radius, Foundry Bucket (ft in.) | 7, 0 ft, in. |
| Dump Angle (Full Lift Height) Degree | 48 degree (angle) |
| Bucket Rollback (Ground Level) Degree | 35 degree (angle) |
| Advertised Tipping Load (lb) | 5900 lb. |
| Advertised SAE Rated Operating Capacity (lb) | 2950 lb. |
| Boom Breakout Foundry Bucket (lb) | 6600 lb. |
| Boom Breakout Construction Bucket (lb) | 6000 lb. |
| Bucket Breakout Foundry Bucket (lb) | 10500 lb. |
| Bucket Breakout Construction Bucket (lb) | 7400 lb. |
Hydraulics
| Standard Pump Flow (gpm) | 25 gpm |
| High Flow Option Total Pump Flow (gpm) | 39 gpm |
| System Pressure At Couplers (psi) | 3450 psi |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 50.32 hp |
| Hydraulic Horsepower High Flow (calculated) (hp) | 78.5 hp |
Powertrain
| Controls Type | Electrohydraulic |
| Travel Speed High (mph) | 12.5 mph |
| Tractive Effort (lbf) | 8610 lbf |
| Final Drive | Chains high strength, adjustment free |
| Parking Brake Type | Spring applied, hydraulically released wet-disk park brake |
Operating Weight
| Machine Configuration That Will Produce Base Machine Weight (ISO 6016) | Base Machine |
| Base Machine Weight (lb) | 9930 lb. |
Serviceability
| Fuel Tank (gal.) | 25.5 gal. |
| Fuel Tank (L) | 25.5 L |
Monitoring
| Alternator, Low Voltage | Indicator light |
| Battery Voltage | Digital |
| Diagnostics | Digital |
| Engine Air Filter Restriction Indicator | Indicator light |
| Engine Coolant Temperature | Indicator light, Gauge, Digital |
| Engine Oil Pressure | Indicator light |
| Engine RPM Indicator | Digital |
| Fuel Gauge | Gauge |
| Diesel Exhaust Fluid (DEF) Level Indicator | Audible warning, Gauge |
| Hourmeter | Digital |
| Hydraulic Oil Filter Restriction | Indicator light |
| Hydraulic Oil Temperature | Indicator light, Gauge, Digital |
| Park Brake Engaged | Indicator light |
| Warm-Up Indicator | Indicator light, Digital |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV94FHT |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Engine Cylinders | 4 |
| Net Power (SAE J1349, ISO 9249) At 2500 RPM (HP) | 94.96 hp |
| Rated Gross Power (ISO 14396) At 2500 RPM (HP) | 97.89 hp |
| Peak Torque At 1700 RPM (lb-ft) | 281.75 lb-ft |
| Displacement (cu in.) | 186.33 cu in. |
| Rated Engine Speed (RPM) | 2500 rpm |
| Torque Rise At 1700 RPM (percent) | 47 % |
| Aspiration | Turbocharged, intercooled |
| Air Cleaner | Dry dual element |
Cylinders
| Cylinders Type | John Deere heat treated, chrome-plated, polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Electrical
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 950 CCA |
| Alternator Rating (amp) | 120 amp |
| Lighting Options | Halogen, Two (2) Front and One (1) Rear; (Optional): LED, Four (4) Front, and One (1) Rear |
Operator Station
| Structure | ROPS (ISO3471) FOPS (ISO3449) Structure with Quick Pivot |
Tires and Wheels
| Standard Tire Size | 14X17.5 14 PR TITAN HD2000-II |
Cooling
| Fan Drive Type | Variable speed hydraulic drive |
