Features
Compact Vertical‑Lift Performance

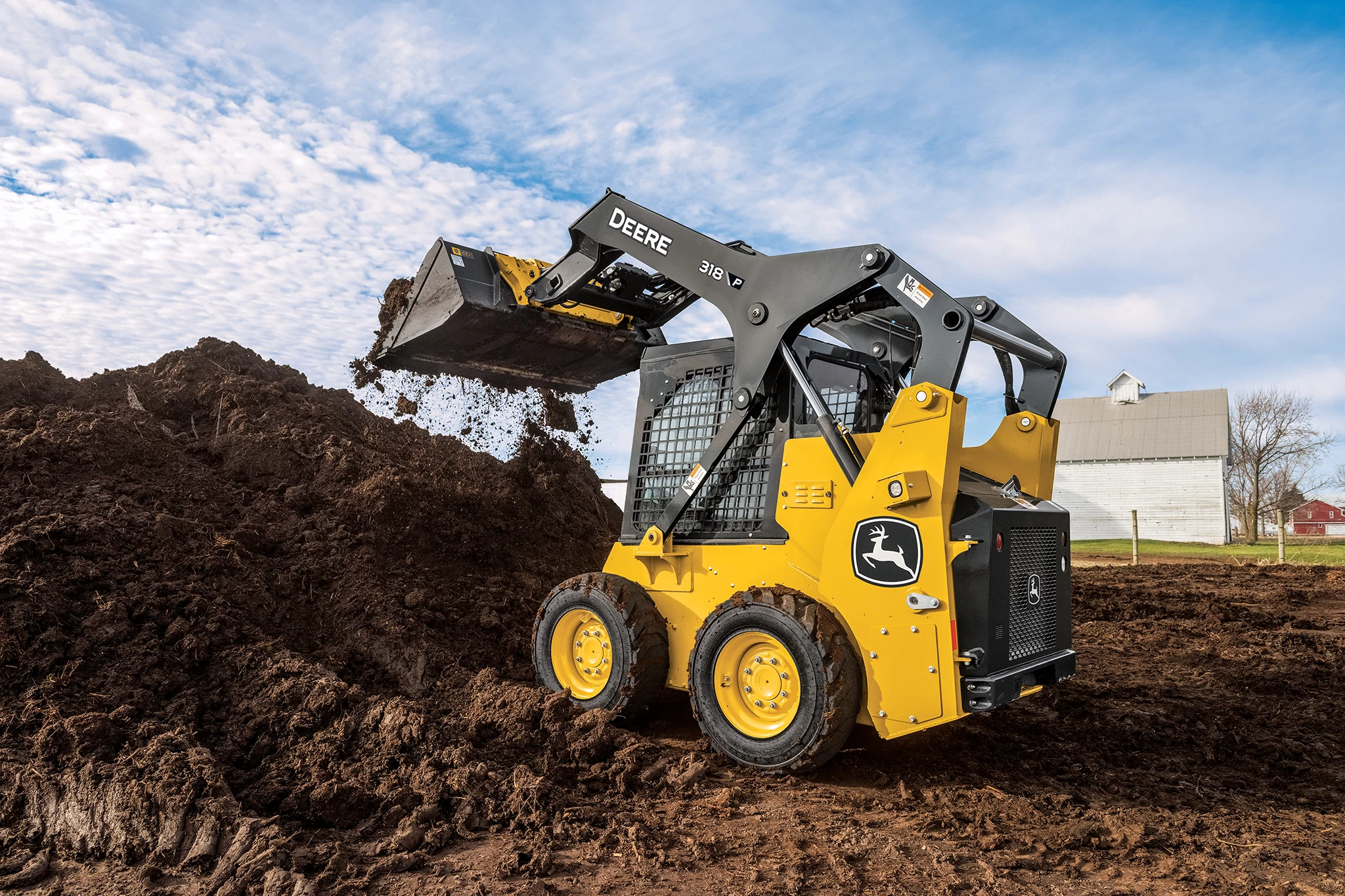

The vertical‑lift boom provides added reach and stability at full lift, making the 318 P‑Tier ideal for stacking, truck‑loading, and material placement in confined jobsites
Operator‑Focused Cab & Controls
A sealed, pressurized cab with increased interior space, optional air‑ride heated seat, and electrohydraulic controls helps reduce fatigue and improve comfort through long workdays.
Attachment Versatility & Precise Control
Compatibility with over 100 John Deere attachments—along with features like optional creep control and Quik‑Tatch™ allows operators to easily adapt the machine to a wide range of tasks.
Specifications
Machine Dimensions
| Length Without Bucket (in.) | 103 in. |
| Length Without Bucket (ft, in.) | 8, 7 ft, in. |
| Length Without Bucket (m) | 2.63 m |
| Length With Foundry Bucket (in.) | 127.6 in. |
| Length With Foundry Bucket (ft in.) | 10, 8 ft, in. |
| Length With Foundry Bucket (m) | 3.24 m |
| Width Without Bucket (in.) | 62.9 in. |
| Width Without Bucket (ft in.) | 5, 3 ft, in. |
| Width Without Bucket (m) | 1.6 m |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 77.2 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 6, 5 ft, in. |
| Height To Top Of Rollover Protective Structure (ROPS) (m) | 1.96 m |
| Height To Hinge Pin (in.) | 120 in. |
| Height To Hinge Pin (ft in.) | 10, 0 ft, in. |
| Height To Hinge Pin (m) | 3.05 m |
| Dump Height, Foundry Bucket (in.) | 94.3 in. |
| Dump Height, Foundry Bucket (ft in.) | 7, 10 ft, in. |
| Dump Height, Foundry Bucket (m) | 2.4 m |
| Dump Reach, Foundry Bucket (in.) | 34 in. |
| Dump Reach, Foundry Bucket (m) | 0.86 m |
| Dump Reach, Construction Bucket (in.) | 41.3 in. |
| Dump Reach, Construction Bucket (ft in.) | 3, 5 ft, in. |
| Dump Reach, Construction Bucket (m) | 1.05 m |
| Wheelbase (in.) | 41.5 in. |
| Wheelbase (ft in.) | 3, 5 ft, in. |
| Wheelbase (m) | 1.05 m |
| Ground Clearance (in.) | 7 in. |
| Ground Clearance (m) | 0.18 m |
| Angle Of Departure Degree | 22.3 degree (angle) |
| Front Turn Radius, Foundry Bucket (in.) | 79 in. |
| Front Turn Radius, Foundry Bucket (ft in.) | 6, 7 ft, in. |
| Front Turn Radius, Foundry Bucket (m) | 2.01 m |
| Dump Angle (Full Lift Height) Degree | 42 degree (angle) |
| Bucket Rollback (Ground Level) Degree | 30 degree (angle) |
| Advertised Tipping Load (lb) | 3890 lb. |
| Advertised Tipping Load (kg) | 1766 kg |
| Advertised SAE Rated Operating Capacity (lb) | 1945 lb. |
| Advertised SAE Rated Operating Capacity (kg) | 883 kg |
| Rated Operating Capacity With Counterweight (lb) | 2095 lb. |
| Rated Operating Capacity With Counterweight (kg) | 951 kg |
| Boom Breakout Foundry Bucket (lb) | 5250 lb. |
| Boom Breakout Foundry Bucket (kg) | 2384 kg |
| Boom Breakout Construction Bucket (lb) | 5000 lb. |
| Boom Breakout Construction Bucket (kg) | 2270 kg |
| Bucket Breakout Force Foundry Bucket (lb) | 6000 lb. |
| Bucket Breakout Force Foundry Bucket (kg) | 2724 kg |
| Bucket Breakout Force Construction Bucket (lb) | 4250 lb. |
| Bucket Breakout Force Construction Bucket (kg) | 1930 kg |
Hydraulics
| Standard Pump Flow (gpm) | 17 gpm |
| Standard Pump Flow (L/min) | 63 L/min |
| System Pressure At Couplers (psi) | 3450 psi |
| System Pressure At Couplers (kPa) | 23787 kPa |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 33 hp |
| Hydraulic Power Standard Flow (calculated) (kW) | 25 kW |
Powertrain
| Pump Type | Hydrostatic-manual or electrohydraulic (EH); 4 – 80 heavy-duty (HD) continuous-loop chain |
| Travel Speed High (mph) | 10.1 mph |
| Tractive Effort (lbf) | 7831 lbf |
| Tractive Effort (kgf) | 3552 kgf |
| Final Drive | High-strength, adjustment-free chains |
| Parking Brake Type | Integral, automatic, spring-applied, hydraulically released, wet-disc park brake |
Serviceability
| Fuel Tank (gal.) | 19 gal. |
| Fuel Tank (L) | 71 L |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV86CHT |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Engine Cylinders | 4 |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (HP) | 61 hp |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (kW) | 45.6 kW |
| Rated Gross Power (ISO 14396) At 2600 RPM (HP) | 65 hp |
| Rated Gross Power (ISO 14396) At 2600 RPM (kW) | 48.5 kW |
| Displacement (cu in.) | 128 cu in. |
| Displacement (L) | 2.1 L |
| Rated Engine Speed (RPM) | 2600 rpm |
| Aspiration | Turbocharged |
| Air Cleaner | Dry dual element |
Cylinders
| Cylinders Type | John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Operating Weight
| Base Machine Weight (lb) | 6542 lb. |
| Base Machine Weight (kg) | 2970 kg |
Electrical
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 750 CCA |
| Alternator Rating (amp) | 75 amp |
| Lighting Options | Halogen: 2 front and 1 rear |
Operator Station
| Structure | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard |
Tires and Wheels
| Standard Tire Size | 10 x 16.5 |
Cooling
| Fan Drive Type | Direct belt drive |
