Features

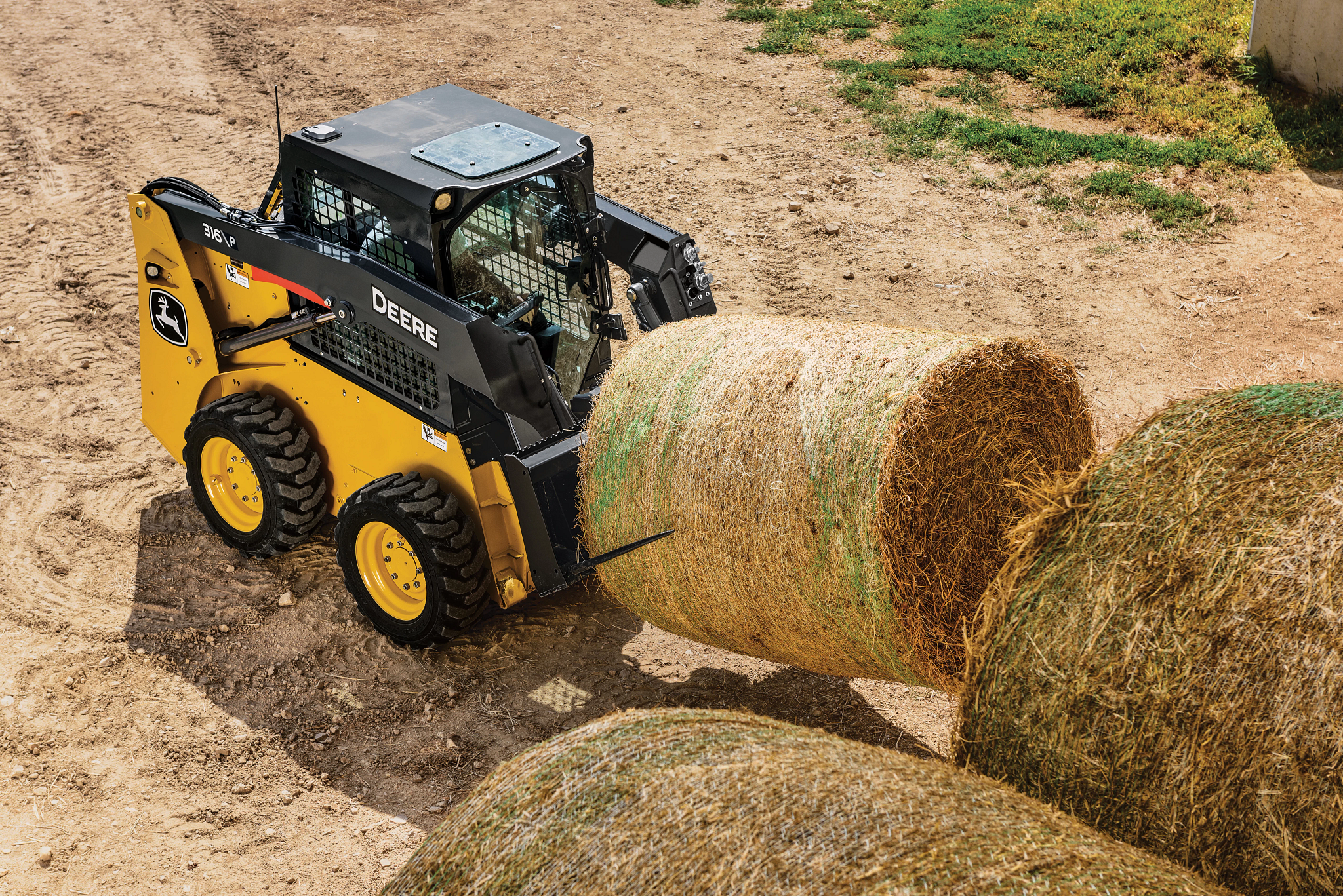

Compact Radial‑Lift Design

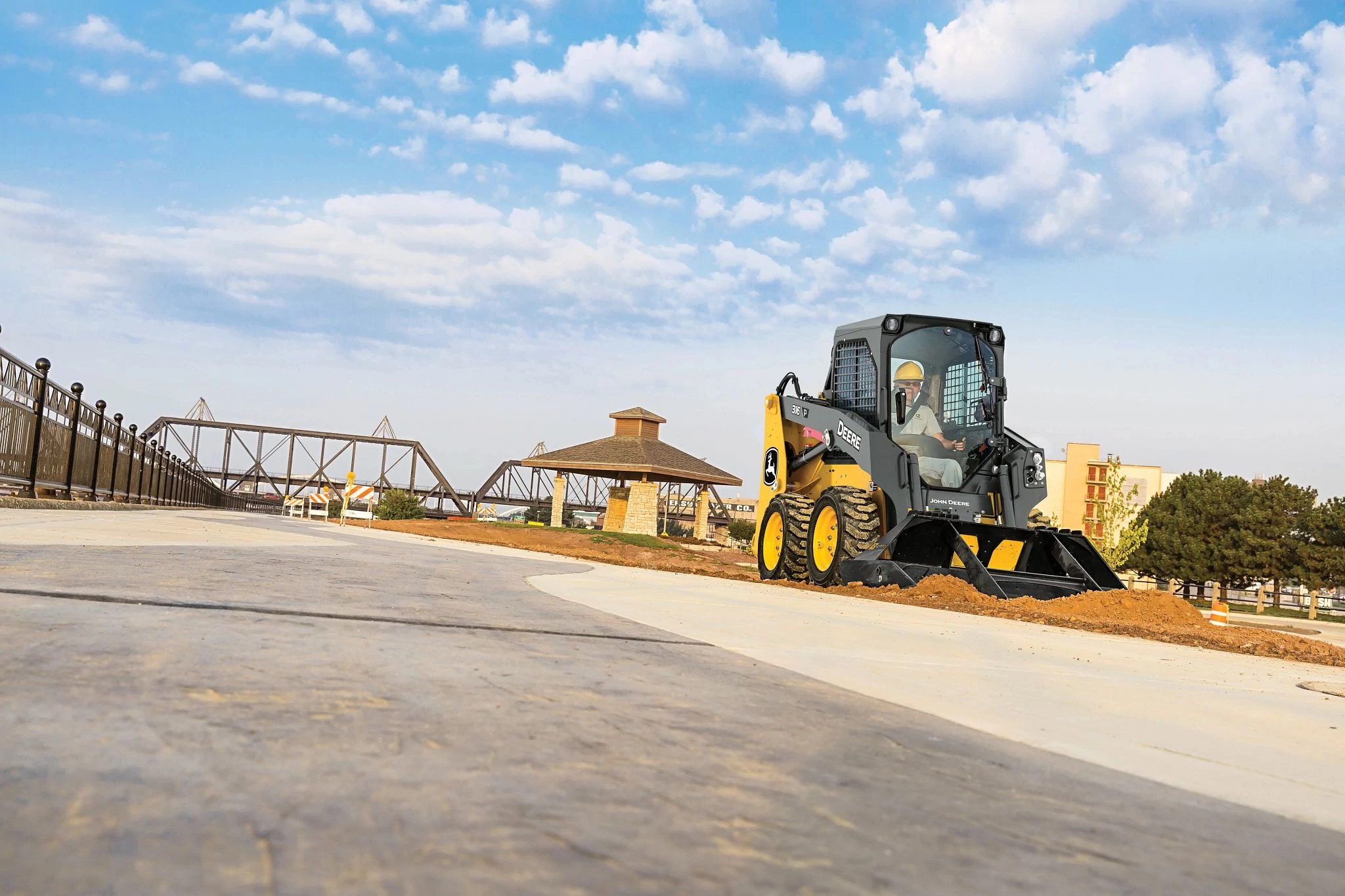

The radial‑lift boom provides strong breakout force and excellent mid‑range performance, making the 316 P‑Tier well suited for digging, grading, and ground‑level material handling in confined spaces.
Operator‑Focused Cab & Controls
A sealed, pressurized cab with increased interior space, optional air‑ride heated seat, and electrohydraulic controls helps reduce fatigue and improve comfort through long workdays.
Attachment Versatility & Precise Control
Compatibility with over 100 John Deere attachments—along with features like optional creep control and Quik‑Tatch™ allows operators to easily adapt the machine to a wide range of tasks.
Specifications
Machine Dimensions
| Length Without Bucket (in.) | 103 in. |
| Length Without Bucket (ft, in.) | 8, 7 ft, in. |
| Length Without Bucket (m) | 2.63 m |
| Length With Foundry Bucket (in.) | 127.6 in. |
| Length With Foundry Bucket (ft in.) | 10, 8 ft, in. |
| Length With Foundry Bucket (m) | 3.24 m |
| Width Without Bucket (in.) | 62.9 in. |
| Width Without Bucket (ft in.) | 5, 3 ft, in. |
| Width Without Bucket (m) | 1.6 m |
| Height To Top Of Rollover Protective Structure (ROPS) (in.) | 77.2 in. |
| Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 6, 5 ft, in. |
| Height To Top Of Rollover Protective Structure (ROPS) (m) | 1.96 m |
| Height To Hinge Pin (in.) | 115.1 in. |
| Height To Hinge Pin (ft in.) | 9, 7 ft, in. |
| Height To Hinge Pin (m) | 2.92 m |
| Dump Height, Foundry Bucket (in.) | 88.6 in. |
| Dump Height, Foundry Bucket (ft in.) | 7, 5 ft, in. |
| Dump Height, Foundry Bucket (m) | 2.25 m |
| Dump Reach, Foundry Bucket (in.) | 15.8 in. |
| Dump Reach, Foundry Bucket (m) | 0.4 m |
| Dump Reach, Construction Bucket (in.) | 22.8 in. |
| Dump Reach, Construction Bucket (m) | 0.58 m |
| Wheelbase (in.) | 41.5 in. |
| Wheelbase (ft in.) | 3, 5 ft, in. |
| Wheelbase (m) | 1.05 m |
| Ground Clearance (in.) | 7 in. |
| Ground Clearance (m) | 0.18 m |
| Angle Of Departure Degree | 22.3 degree (angle) |
| Front Turn Radius, Foundry Bucket (in.) | 79 in. |
| Front Turn Radius, Foundry Bucket (ft in.) | 6, 7 ft, in. |
| Front Turn Radius, Foundry Bucket (m) | 2.01 m |
| Dump Angle (Full Lift Height) Degree | 45 degree (angle) |
| Bucket Rollback (Ground Level) Degree | 30 degree (angle) |
| Advertised Tipping Load (lb) | 3500 lb. |
| Advertised Tipping Load (kg) | 1589 kg |
| Advertised SAE Rated Operating Capacity (lb) | 1750 lb. |
| Advertised SAE Rated Operating Capacity (kg) | 795 kg |
| Rated Operating Capacity With Counterweight (lb) | 1900 lb. |
| Rated Operating Capacity With Counterweight (kg) | 863 kg |
| Boom Breakout Foundry Bucket (lb) | 4750 lb. |
| Boom Breakout Foundry Bucket (kg) | 2157 kg |
| Boom Breakout Construction Bucket (lb) | 4500 lb. |
| Boom Breakout Construction Bucket (kg) | 2043 kg |
| Bucket Breakout Force Foundry Bucket (lb) | 5250 lb. |
| Bucket Breakout Force Foundry Bucket (kg) | 2384 kg |
| Bucket Breakout Force Construction Bucket (lb) | 4000 lb. |
| Bucket Breakout Force Construction Bucket (kg) | 1816 kg |
Hydraulics
| Standard Pump Flow (gpm) | 17 gpm |
| Standard Pump Flow (L/min) | 63 L/min |
| System Pressure At Couplers (psi) | 3450 psi |
| System Pressure At Couplers (kPa) | 23787 kPa |
| Hydraulic Horsepower Standard Flow (calculated) (hp) | 33 hp |
| Hydraulic Power Standard Flow (calculated) (kW) | 25 kW |
Powertrain
| Pump Type | Hydrostatic-manual or electrohydraulic (EH); 4 – 80 heavy-duty (HD) continuous-loop chain |
| Travel Speed High (mph) | 10.1 mph |
| Tractive Effort (lbf) | 7831 lbf |
| Tractive Effort (kgf) | 3552 kgf |
| Final Drive | High-strength, adjustment-free chains |
| Parking Brake Type | Integral, automatic, spring-applied, hydraulically released, wet-disc park brake |
Serviceability
| Fuel Tank (gal.) | 19 gal. |
| Fuel Tank (L) | 71 L |
Engine
| Manufacturer | Yanmar® |
| Model | 4TNV86CHT |
| Non-Road Emission Standards | EPA Final Tier 4 |
| Engine Cylinders | 4 |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (HP) | 61 hp |
| Net Power (SAE J1349, ISO 9249) At 2600 RPM (kW) | 45.6 kW |
| Rated Gross Power (ISO 14396) At 2600 RPM (HP) | 65 hp |
| Rated Gross Power (ISO 14396) At 2600 RPM (kW) | 48.5 kW |
| Displacement (cu in.) | 128 cu in. |
| Displacement (L) | 2.1 L |
| Rated Engine Speed (RPM) | 2600 rpm |
| Aspiration | Turbocharged |
| Air Cleaner | Dry dual element |
Cylinders
| Cylinders Type | John Deere heat-treated, chrome-plated polished cylinder rods, hardened steel (replaceable bushings) pivot pins |
Operating Weight
| Base Machine Weight (lb) | 6180 lb. |
| Base Machine Weight (kg) | 2806 kg |
Electrical
| Voltage (V) | 12 V |
| Battery capacity (CCA) | 750 CCA |
| Alternator Rating (amp) | 75 amp |
| Lighting Options | Halogen: 2 front and 1 rear |
Operator Station
| Structure | ROPS (ISO 3471) / FOPS (ISO 3449) structure with quick pivot standard |
Tires and Wheels
| Standard Tire Size | 10 x 16.5 |
Cooling
| Fan Drive Type | Direct belt drive |
