John Deere VR73C Vibratory Roller

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / VR73C Vibratory Roller

Double tap to zoom



Features

Quik-Tatch™ System

Skid steer loader with a front grading attachment working on a dirt slope.

Equipped with the Quik-Tatch™ system, the C-Series vibratory rollers allows for rapid attachment to compatible loaders. In just one minute, operators can securely connect or disconnect the roller, minimizing downtime and boosting efficiency on site.

Versatile Drum Options

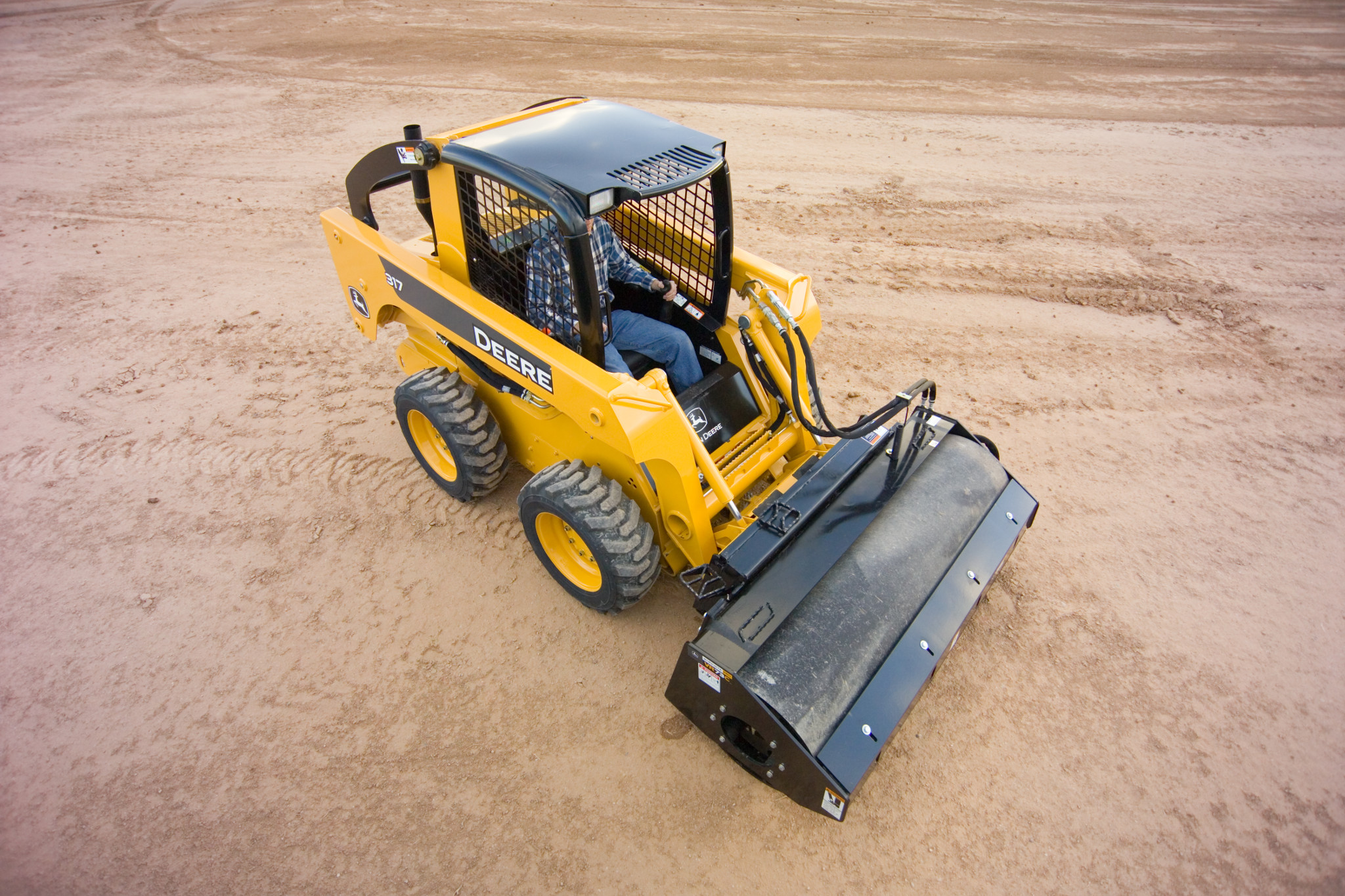

Overhead front right view of smooth drum vibratory roller mounted to the front of a skid steer in a large dirt field

The vibratory roller offers two drum styles: a smooth drum for coarse materials like sand and gravel, and a sheepsfoot drum for compacting dense materials such as clay. This allows operators to opt for the best configuration tailored to their specific tasks, enhancing productivity.

Improve Productivity with the C-Series Vibratory Rollers

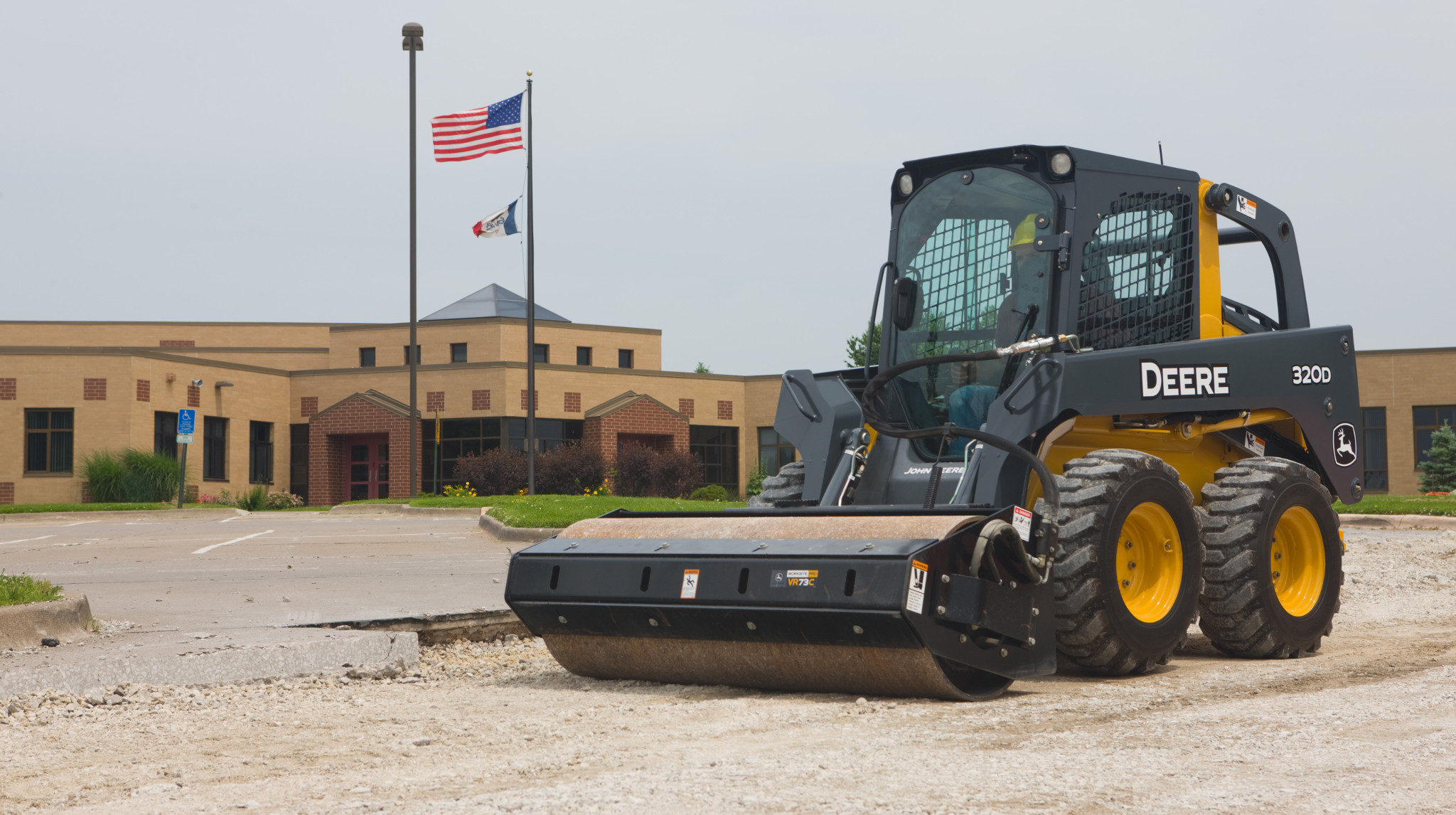

Front left view of VR Series Vibratory Roller on a 320D Skid Steer rolling a gravel section of parking lot outside a large building

Utilizing standard hydraulics, the roller produces significant compaction forces, and its drum oscillation of ±15 degrees ensures adaptability to different terrains. Compatible with John Deere loaders, it's an economic solution eliminating the costs tied to self-propelled rollers.

Specifications

Drum

Width1.8 m
Width73 in.
Diameter - Smooth Drum61 cm
Diameter - Smooth Drum24 in.
Diameter - Sheepsfoot Drum (Without Pads)51 cm
Diameter - Sheepsfoot Drum (Without Pads)20 in.
Oscillation15 degree (angle)

Operation

Dynamic Force3878 kgf
Vibrations Per Minute - Range41–95 L/min
Dynamic Force8550 lbf
Vibrations Per Minute - Range11–25 gpm
Vibrations Per Minute - Optimum Performance75.7 L/min
Vibrations Per Minute - Optimum Performance20 gpm
Operating Weight - Smooth Drum1043 kg
Operating Weight - Smooth Drum2300 lb.
Operating Weight - Sheepsfoot Drum1012 kg
Operating Weight - Sheepsfoot Drum2230 lb.

Dimensions

Overall Width2 m
Overall Width79 in.
Overall Length99 cm
Overall Length39 in.
Overall Height79 cm
Overall Height31 in.

Vehicle Compatibility

Compact Track Loader - Smooth Drum (May Require Additional Weights)317G, 325G, 331G, 333G
Skid Steer Loader - Smooth Drum (May Require Additional Weights)330G, 332G
Compact Track Loader - Sheepsfoot Drum (May Require Additional Weights)317G, 325G, 331G, 333G
Skid Steer Loader - Sheepsfoot Drum (May Require Additional Weights)330G, 332G
