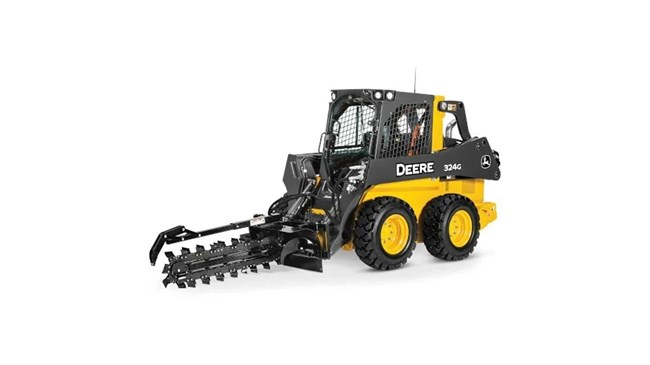

John Deere TR48B Trencher
Double tap to zoom
TR48B Trencher
Construction Attachments
Overview:
The TR48B Trencher provides efficient trenching capabilities, renowned reliability, and adaptability to various conditions and terrains.
- Ideal for Higher-Duty Cycles
- Heavy-Duty Planetary-Drive Design
- Adjustable Trench Depth
- Robust Construction for Extended Operational Lifespan
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Heavy-Duty Planetary Drive
The trencher features a heavy-duty planetary-drive design, leveraging more hydraulic horsepower from high-flow hydraulics. This design is optimal for high-duty cycles in commercial and heavy construction applications, offering robust performance.
Trencher Chain Options
The trencher comes with varied chain options suitable for different digging conditions. The "standard cup every station" chain is designed for moderately compacted soils, while the 70/30 combination shark tooth chain is for heavier-duty applications like rocky soils.
Convenient Two-Position Manual Side Shift
Equipped with a two-position manual side shift, the trencher can trench close to structures. This feature enhances functionality and adaptability on commercial construction sites, allowing for precision trenching in tight spaces.
Specifications
Digging Chain
| Chain Type | Double standard anti-back flex |
| Drive Type | Integrated planetary |
| Chain Rating | 22680 kg |
| Chain Rating | 50000 lb. |
| Chain Pitch | 51 mm |
| Chain Pitch | 2 in. |
| Chain Width - Standard Cup Teeth Option 1 | 152 mm |
| Chain Width - Standard Cup Teeth Option 1 | 6 in. |
| Chain Width - Standard Cup Teeth Option 2 | 203 mm |
| Chain Width - Standard Cup Teeth Option 2 | 8 in. |
| Chain Width - 70/30 Combo Shark Teeth | 152 mm |
| Chain Width - 70/30 Combo Shark Teeth | 6 in. |
Hydraulics
| 61-76 L/min (16-20 gpm) Standard-Flow Motor Option | Optional |
| 79-95 L/min (21-25 gpm) Standard-Flow Motor Option | Optional |
| 102-132 L/min (24-35 gpm) High-Flow Motor Option | Optional |
| 136-167 L/min (36-44 gpm) High-Flow Motor Option | Optional |
| Maximum Operating Pressure | 24132 kPa |
| Maximum Operating Pressure | 3500 psi |
Dimensions
| Weight | 535 kg |
| Weight | 1180 lb. |
| Length | 2184 mm |
| Length | 86 in. |
| Width | 1346 mm |
| Width | 53 in. |
| Height | 813 mm |
| Height | 32 in. |
Operation
| Trench Depth at 65-Degree Trenching Angle | 1219 mm |
| Trench Depth at 65-Degree Trenching Angle | 48 in. |
| Side Shift, Right of Center | 432 mm |
| Side Shift, Right of Center | 17 in. |
| Spoil-Discharge Reach | 457 mm |
| Spoil-Discharge Reach | 18 in. |
Vehicle Compatibility
| Hydraulic Connection (Standard Flow) | 12.7-mm (0.5 in.) quick-connect couplers |
| Hydraulic Connection (High Flow) | 12.7-mm (0.5 in.) quick-connect couplers with 9.525-mm (0.375 in.) case-drain coupler |
| Compact Track Loader | 317G, 325G, 331G, 333G |
| Skid Steer Loader | 316GR, 318G, 320G, 324G, 330G, 332G |
