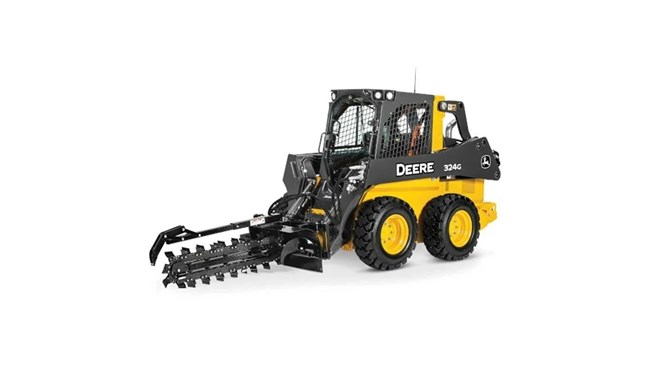

John Deere TR36B Trencher

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / TR36B Trencher

Double tap to zoom



Features

Heavy-Duty Planetary Drive

Front left view of a 300 series compact wheel loader using a TR series trencher at a dirt jobsite

The trencher features a heavy-duty planetary-drive design, leveraging more hydraulic horsepower from high-flow hydraulics. This design is optimal for high-duty cycles in commercial and heavy construction applications, offering robust performance.

Trencher Chain Options

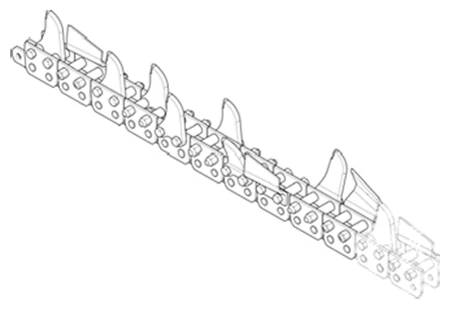

Black and white computer sketch of a short strand of trencher chain

The trencher comes with varied chain options suitable for different digging conditions. The "standard cup every station" chain is designed for moderately compacted soils, while the 70/30 combination shark tooth chain is for heavier-duty applications like rocky soils.

Convenient Two-Position Manual Side Shift

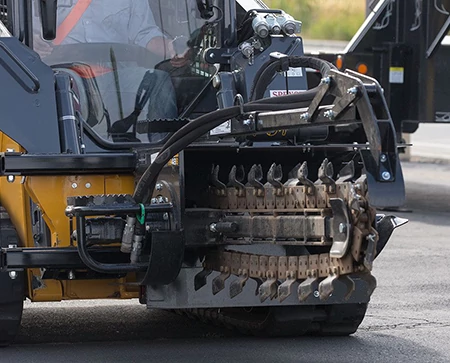

Front view of a TR series trencher attached to a loader traveling down a street

Equipped with a two-position manual side shift, the trencher can trench close to structures. This feature enhances functionality and adaptability on commercial construction sites, allowing for precision trenching in tight spaces.

Specifications

Digging Chain

Chain TypeDouble standard anti-back flex
Drive TypeIntegrated planetary
Chain Rating22680 kg
Chain Rating50000 lb.
Chain Pitch51 mm
Chain Pitch2 in.
Chain Width - Standard Cup Teeth Option 1152 mm
Chain Width - Standard Cup Teeth Option 16 in.
Chain Width - Standard Cup Teeth Option 2203 mm
Chain Width - Standard Cup Teeth Option 28 in.
Chain Width - Standard Cup Teeth Option 3254 mm
Chain Width - Standard Cup Teeth Option 310 in.
Chain Width - Standard Cup Teeth Option 4305 mm
Chain Width - Standard Cup Teeth Option 412 in.
Chain Width - 70/30 Combo Shark Teeth152 mm
Chain Width - 70/30 Combo Shark Teeth6 in.

Hydraulics

61-76 L/min (16-20 gpm) Standard-Flow Motor OptionOptional
79-95 L/min (21-25 gpm) Standard-Flow Motor OptionOptional
102-132 L/min (24-35 gpm) High-Flow Motor OptionOptional
136-167 L/min (36-44 gpm) High-Flow Motor OptionOptional
Maximum Operating Pressure24132 kPa
Maximum Operating Pressure3500 psi

Dimensions

Weight513 kg
Weight1130 lb.
Length1854 mm
Length73 in.
Width1346 mm
Width53 in.
Height813 mm
Height32 in.

Operation

Trench Depth at 65-Degree Trenching Angle914 mm
Trench Depth at 65-Degree Trenching Angle36 in.
Side Shift, Right of Center432 mm
Side Shift, Right of Center17 in.
Spoil-Discharge Reach457 mm
Spoil-Discharge Reach18 in.

Vehicle Compatibility

Hydraulic Connection (Standard Flow)12.7-mm (0.5 in.) quick-connect couplers
Hydraulic Connection (High Flow)12.7-mm (0.5 in.) quick-connect couplers with 9.525-mm (0.375 in.) case-drain coupler
Compact Track Loader317G, 325G, 331G, 333G
Skid Steer Loader316GR, 318G, 320G, 324G, 330G, 332G
