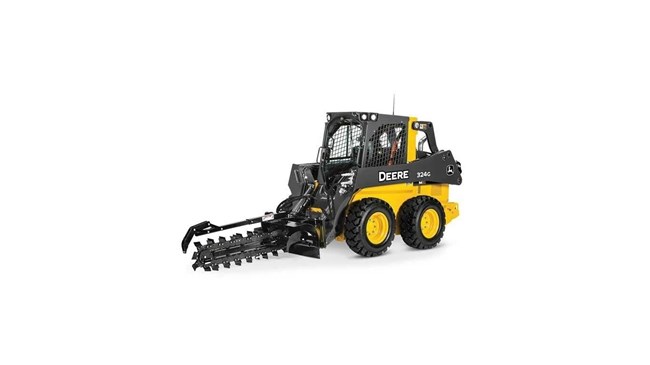

John Deere TC36 Trencher
Double tap to zoom
TC36 Trencher
Construction Attachments
Overview:
The TC36 Trencher is ideal for agriculture and light construction with several chain configurations and spring-loaded boom for reduced shocks.
- Ideal for Lower-Duty Cycles
- Low-Profile Chain and Sprocket Drive
- Standard-Flow Hydraulic Motor
- Multiple Chain Configurations to Match Conditions
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

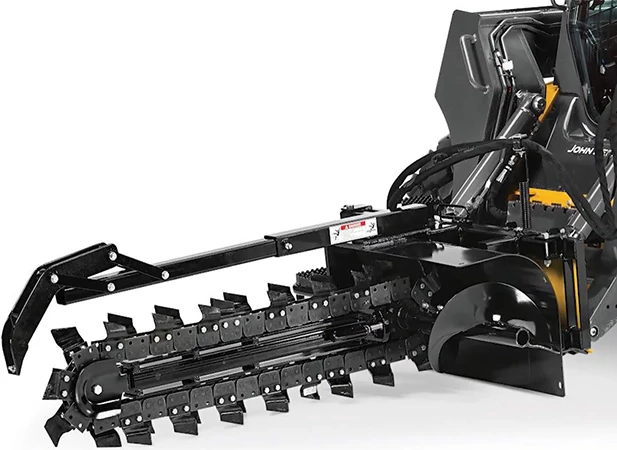

Shock Absorbing Spring-Loaded Boom
The trencher's spring-loaded boom reduces shocks to the hydraulic motor, machine, and operator. This feature minimizes operator fatigue and mechanical wear, extending the lifespan of the equipment.

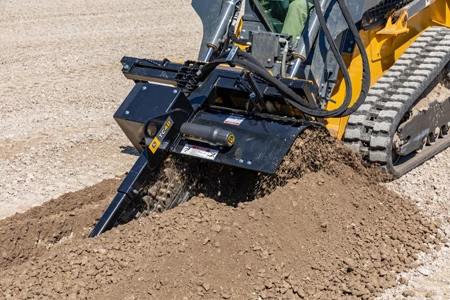

Multiple Chain Configurations
Several chain configurations match a variety of soil conditions and trench requirements. Operators can choose from a range of widths and tooth configurations, enhancing versatility and productivity across different job sites.

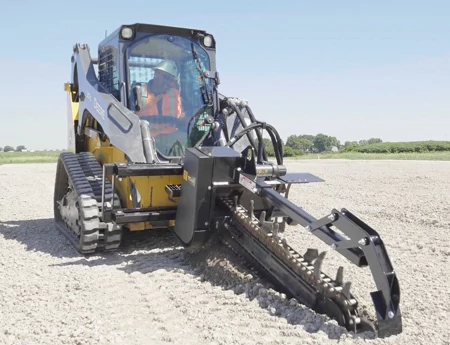

Low-Profile Chain and Sprocket Drive
A low-profile chain and sprocket drive make it ideal for lower-duty cycles in agriculture and light construction applications. This design also facilitates easy entrance and exit from the skid steer or compact track loader.
Specifications
Digging Chain
| Chain Type | Double standard anti-back flex |
| Drive Type | Chain and sprocket |
| Chain Rating | 22680 kg |
| Chain Rating | 50000 lb. |
| Chain Pitch | 51 mm |
| Chain Pitch | 2 in. |
| Chain Width - Standard Cup Teeth Option 1 | 152 mm |
| Chain Width - Standard Cup Teeth Option 1 | 6 in. |
| Chain Width - Standard Cup Teeth Option 2 | 203 mm |
| Chain Width - Standard Cup Teeth Option 2 | 8 in. |
| Chain Width - Standard Cup Teeth Option 3 | 254 mm |
| Chain Width - Standard Cup Teeth Option 3 | 10 in. |
| Chain Width - Standard Cup Teeth Option 4 | 305 mm |
| Chain Width - Standard Cup Teeth Option 4 | 12 in. |
| Chain Width - 70/30 Combo Shark Teeth | 152 mm |
| Chain Width - 70/30 Combo Shark Teeth | 6 in. |
Dimensions
| Weight | 513 kg |
| Weight | 1130 lb. |
| Length | 1854 mm |
| Length | 73 in. |
| Width | 1346 mm |
| Width | 53 in. |
| Height | 813 mm |
| Height | 32 in. |
Operation
| Trench Depth at 65-Degree Trenching Angle | 914 mm |
| Trench Depth at 65-Degree Trenching Angle | 36 in. |
| Side Shift, Right of Center | 432 mm |
| Side Shift, Right of Center | 17 in. |
| Spoil-Discharge Reach | 457 mm |
| Spoil-Discharge Reach | 18 in. |
Vehicle Compatibility
| Hydraulic Connection (Standard Flow) | 12.7-mm (0.5 in.) quick-connect couplers |
| Compact Track Loader | 317G, 325G |
| Skid Steer Loader | 316GR, 318G, 320G, 324G |
Hydraulics
| 53-83 L/min (14-22 gpm) Standard-Flow Motor Option | Standard |
| Maximum Operating Pressure | 13789 kPa |
| Maximum Operating Pressure | 2000 psi |
