John Deere SM60 Mulching Head

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / SM60 Mulching Head

Double tap to zoom



Features

Versatile Land Clearing

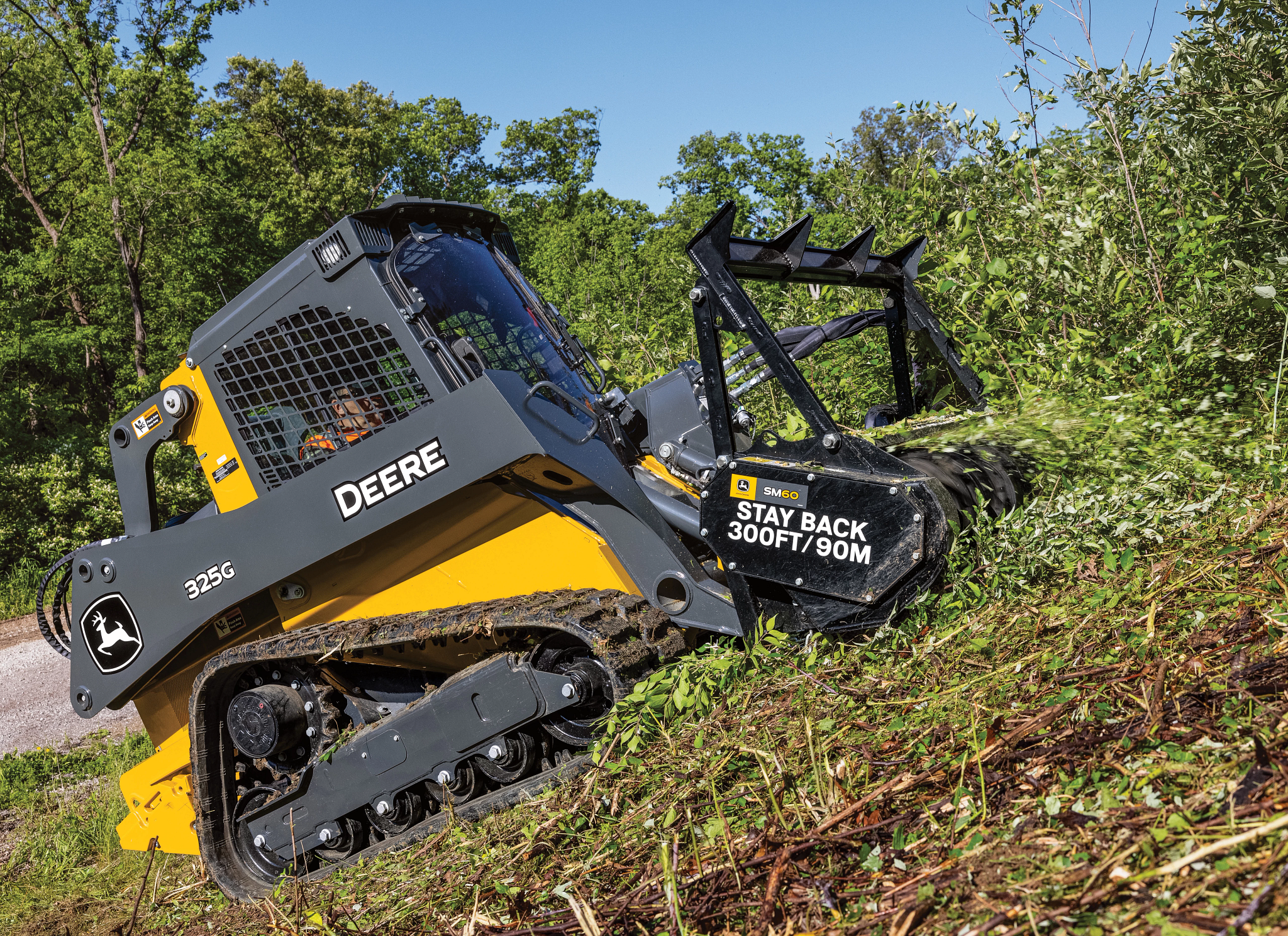

A tracked compact loader on a hillside using a front-mounted mulching head to clear dense vegetation, sending cut material forward

The SM60 Standard Flow Mulching Head allows clearing and mulching up to 5 in. (127 mm) in diameter with machinery under 75 hp (55.9 kW). With a 60-in. (1524-mm) cutting width, it supports mid-frame equipment, making land clearing accessible for existing John Deere compact track and skid steer loaders without requiring machine upgrades.

Superior Compatibility

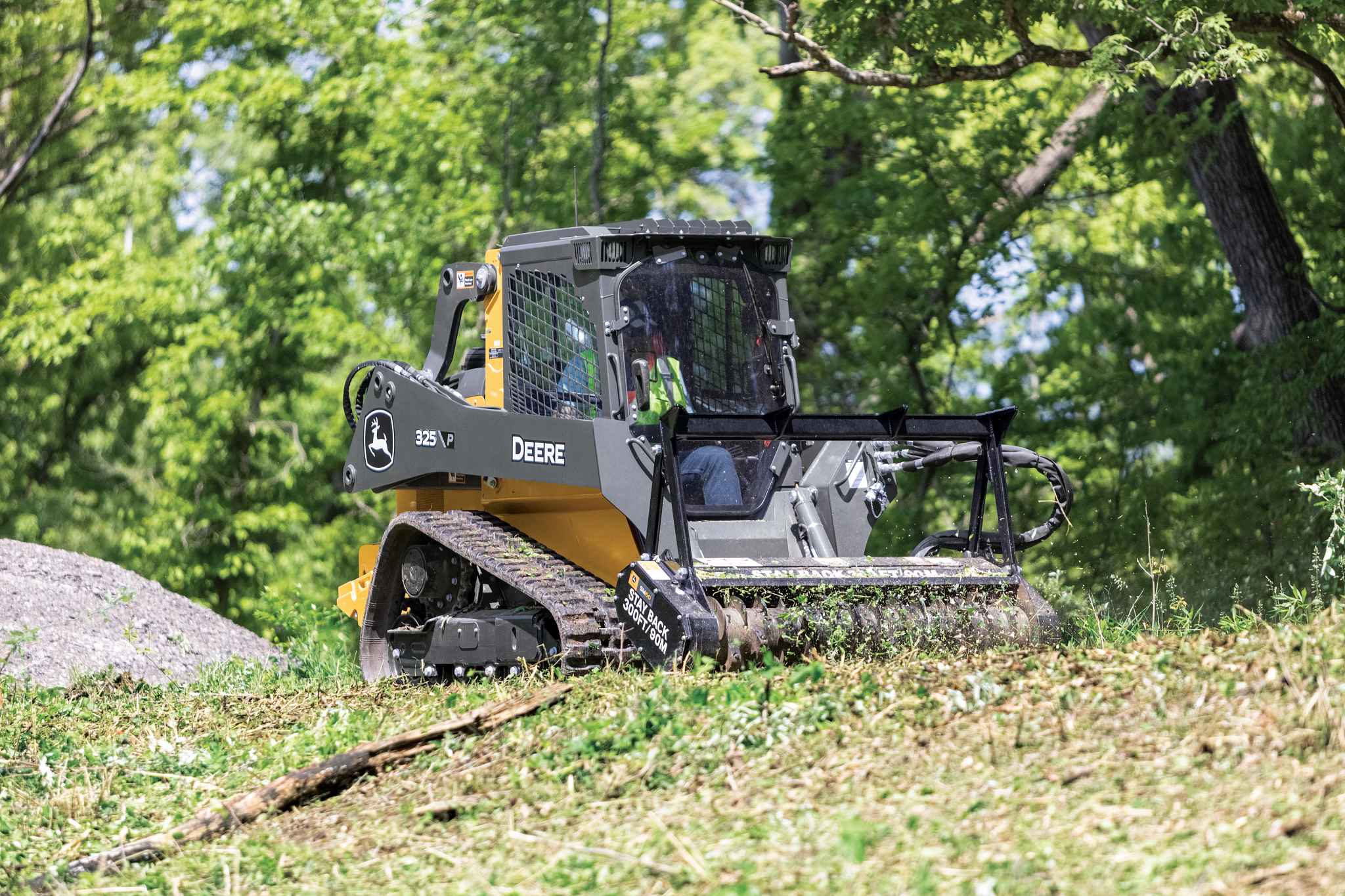

Tracked John Deere compact track loader with a front-mounted mulching attachment clearing vegetation on a grassy slope, surrounded by dense green trees in daylight.

Designed for John Deere 320G and 324G Skid Steer Loaders and 325G Compact Track Loader, the SM60 uses 12.7-mm quick-connect hydraulic couplers and a 14-pin Duetsch electrical connection. This compatibility ensures seamless integration and maintains operational safety with proper machine and operator protection systems.

High-Performance Cutting Tools

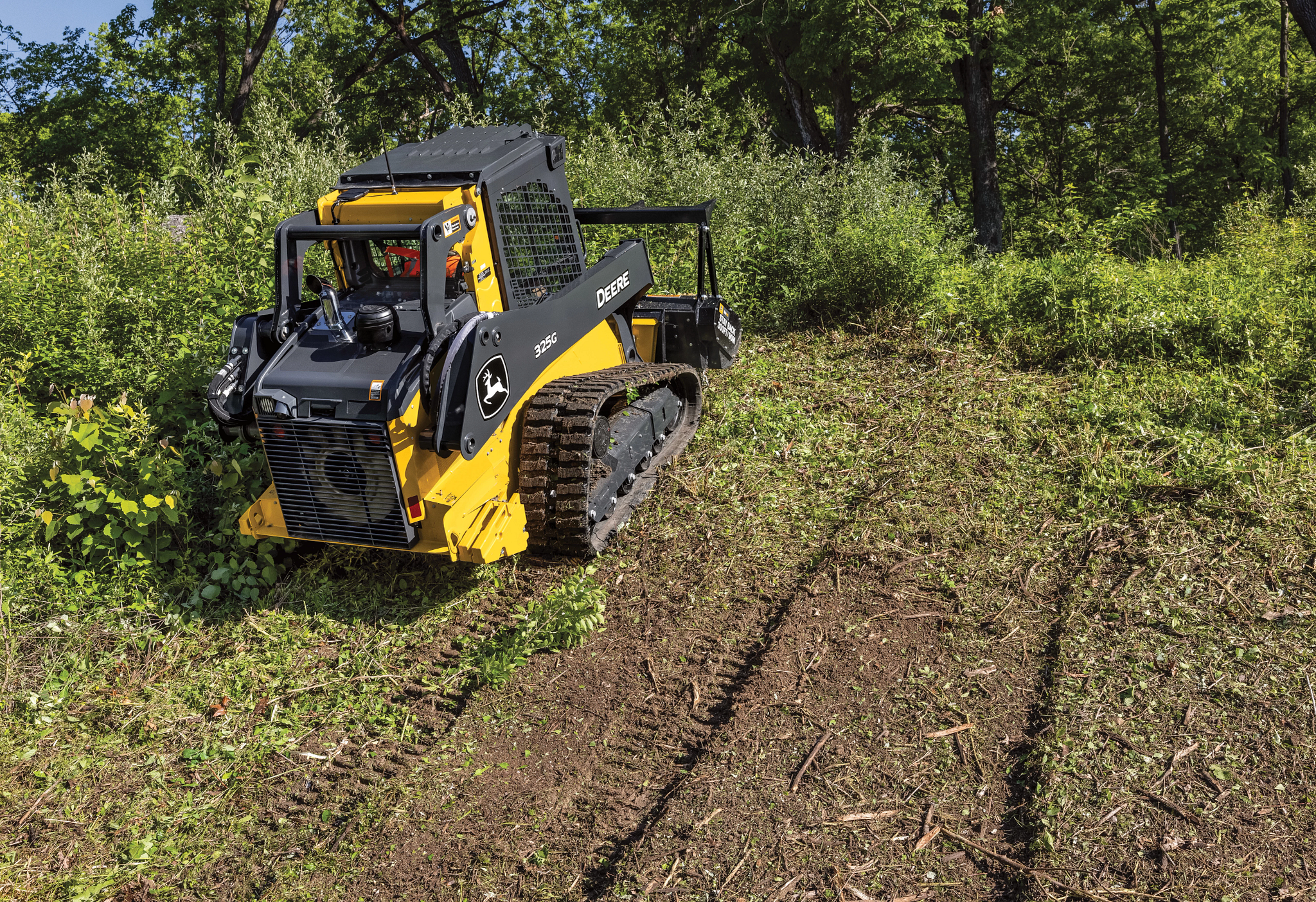

John Deere compact track loader operating on a cleared dirt path in a wooded area, featuring a yellow and gray body

Equipped with 26 double-edge knife tools on a 15-in. (381-mm) rotor, the SM60 ensures effective mulching. Its design maximizes power from standard-flow hydraulic systems, achieving efficient land clearing while maintaining precision in cutting thickness and debris handling on diverse terrains.

Specifications

Hydraulics

Hydraulics TypeStandard Flow
Minimum Flow64 L/min
Minimum Flow17 gpm
Maximum Flow114 L/min
Maximum Flow30 gpm
Maximum Operating Pressure28000 kPa
Maximum Operating Pressure4000 psi

Mulching Head

Overall Width1800 mm
Overall Width71 in.
Cutting Width1520 mm
Cutting Width60 in.
Height1120 mm
Height11 in.
Length923 mm
Length36 in.
Weight680 kg
Weight1500 lb.

Cutting Tools

Cutting Tool Type, StandardDouble-Edged Knife Tool
Number of Cutting Tools with Depth Control Rotor (DCR)26

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quick-connect couplers with 9.525-mm (0.375 in.) case-drain coupler
Electrical Connection14-pin Duetsch Connector
Compact Track Loaders325G
Skid Steer Loaders320G, 324G
