John Deere SB84E

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / SB84E

Double tap to zoom



Features

Direct Drive Motor System

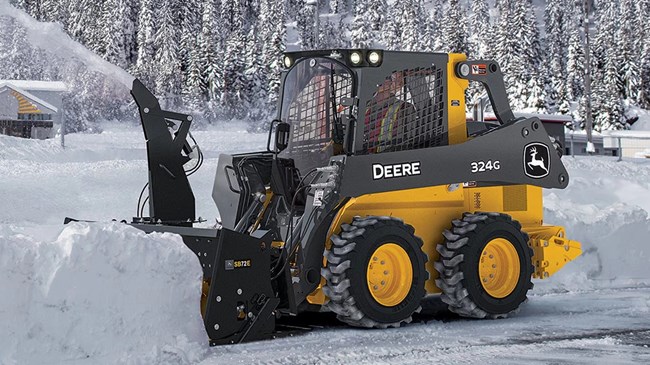

A compact loader equipped with a front snow blower clearing snow off a road, blowing snow to the side with trees and buildings in the background

The Snow Blower features a direct drive motor located at both the auger and impeller. This design is meant to enhance reliability and performance with fewer parts compared to chain and sprocket configurations, ideal for efficient snow removal.

Hydraulically-Actuated Chute and Deflector

A close-up of a construction snowblower attachment with a discharge chute connected by hydraulic arms, shown with visible hoses and warning labels

This snow blower comes with a hydraulically-actuated chute and deflector, allowing operators to control snow placement easily from inside the cab. The chute rotates 270 degrees, enabling versatile and precise snow throwing without needing to exit the vehicle.

High-Volume Intake Opening

A compact loader equipped with a front snow blower clearing a path by blowing snow forward and to the side, with leafless trees in the background

With a high-volume intake opening, the snow blower can handle deep snow, helping to maximize productivity during snow clearing operations. The intake is designed to efficiently channel large amounts of snow into the blower.

Specifications

Hydraulics

Required HydraulicsStandard flow
Auger MotorsSingle
Minimum Required Flow57 L/min
Minimum Required Flow15 gpm
Maximum Required Flow102 L/min
Maximum Required Flow27 gpm
Maximum Operating Pressure24100 kPa
Maximum Operating Pressure3500 psi

Operation

Intake Width2135 mm
Intake Width84 in.
Intake Height684 mm
Intake Height27 in.
Auger Diameter380 mm
Auger Diameter15 in.
Fan Diameter485 mm
Fan Diameter19 in.
Maximum Throw Distance12.2 m
Maximum Throw Distance40 ft
Discharge Chute ControlElectric-over-hydraulic control
Chute Rotation270 degree (angle)

Dimensions

Length1170 mm
Length46 in.
Width2260 mm
Width89 in.
Height1500 mm
Height59 in.
Weight430 kg
Weight945 lb.

Vehicle Compatibility

Electrical Connection Requirements14-pin Deutsch electrical connector
Hydraulic Connection Required Quick-Connect Coupler Diameter12.7 mm
Hydraulic Connection Required Quick-Connect Coupler Diameter0.5 in.
Compact Track Loader317G, 325G
Compact Wheel Loader184 G, 204L/P, 304L/P
Skid Steer Loader316GR, 318G, 320G, 324G
