John Deere RT66 Rotary Tiller

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / RT66 Rotary Tiller

Double tap to zoom



Features

Bidirectional Tilling

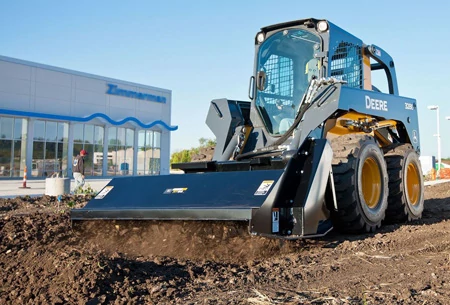

Skid steer loader with a wide front grading attachment leveling soil at a construction site.

RT Series Rotary Tillers offer bidirectional operation, allowing for tilling in both forward and reverse directions. This increases the efficiency and productivity of John Deere skid steer loaders and compact track loaders.

Rugged Construction

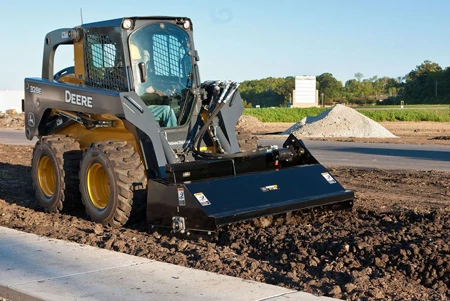

Skid steer loader equipped with a front grading attachment leveling soil at a construction site.

The rotary tiller features a rugged construction with heavy-duty tines, ensuring long service life and excellent operation in a variety of conditions. The design allows offset tilling ideal for close work beside walls and sidewalks.

Efficiency With Scarifiers

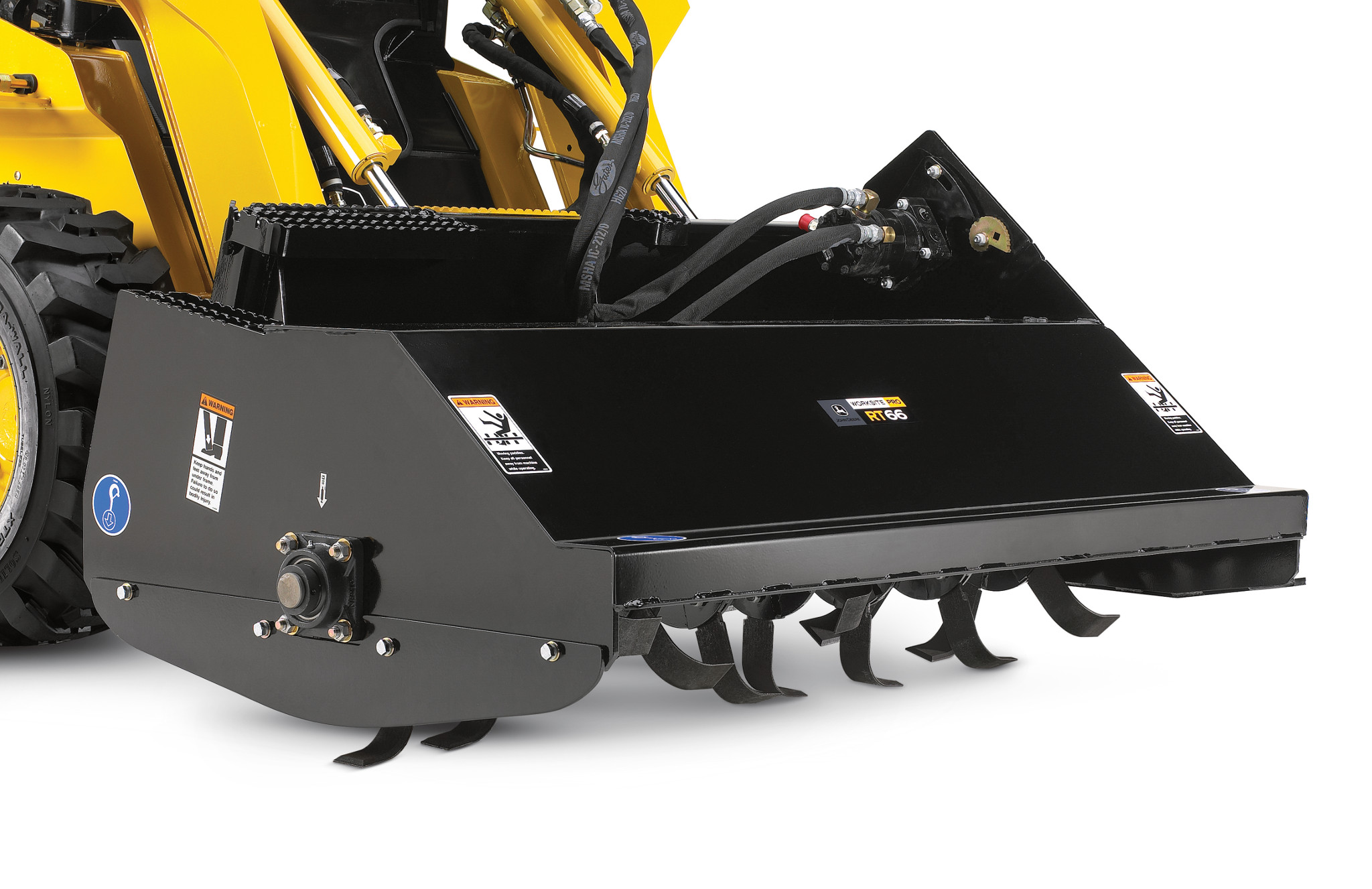

Close-up of a rotary tiller attachment with a black metal housing and curved tines along the bottom, connected to the hydraulic arms and hoses of a skid steer

Standard hydraulic flow requirements ensure high-quality performance. Optional scarifiers boost productivity, particularly beneficial when working in hard ground conditions.

Specifications

Hydraulics

Hydraulic Flow Minimum68 L/min
Hydraulic Flow Minimum18 gpm
Hydraulic Flow Maximum106 L/min
Hydraulic Flow Maximum28 gpm

Dimensions

Overall Width1.9 m
Overall Width76 in.
Overall Length122 cm
Overall Length48 in.
Overall Height89 cm
Overall Height35 in.

Vehicle Compatibility

Compact Track Loader325G, 331G, 333G
Skid Steer Loader318G, 320G, 324G, 330G, 332G

Tiller Operation

Tilling Width1.7 m
Tilling Width66 in.
Tilling Depth15 cm
Tilling Depth6 in.
Number of Tines32
Number of Optional Scarifiers5
Operating Weight454 kg
Operating Weight1000 lb.
