John Deere RE50 Brush Cutter for Compact Excavators

Double tap to zoom



Features

Reach Difficult Vegetation

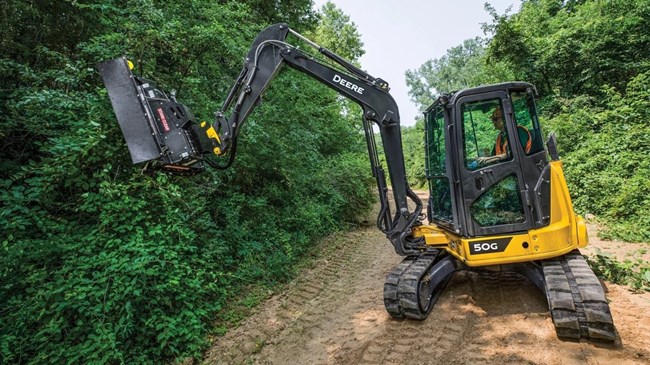

Compact track excavator with a brush cutter trimming dense vegetation along the edge of a path

With its flexible configuration, the brush cutter is versatile across excavators and allows for vegetation management in hard-to-reach areas. Its reversible blades and bolt-on mounting system make it adaptable, enhancing usability in various settings.

More Efficient Performance

Metal attachment with hinged panels and protruding blades or fins underneath; red lettering reading “DIAMOND TRACK ORCHARD” on the side, and small warning label on the top surface.

The rotary brush cutter uses three swinging blades mounted to a blade carrier to enhance cutting performance, tackling material up to 6 in. (153 mm) in diameter. The beveled blades create finer debris for easier recycling, and the automatic hydraulic braking stops blade rotation quickly when turned off.

Durable in Tough Environments

Front view of an RE50 brush cutter hoisted above shrubs and sticks in the woods by its attached compact excavator.

Constructed with a heavy-duty, solid formed steel deck, the cutter is built to last. The hydraulic motor's heavy-duty bearing housing ensures long hydraulic life, while the blades are made from abrasion-resistant steel, minimizing downtime for replacements.

Specifications

Rotary Cutter

Weight476.3 kg
Weight1050 lb.
Overall Height609.6 mm
Overall Height24 in.
Overall Width1600.2 mm
Overall Width63 in.
Overall Length1447.8 mm
Overall Length57 in.

Hydraulics

Minimum Hydraulic Flow83.3 L/min
Minimum Hydraulic Flow22 gpm
Maximum Hydraulic Flow128.7 L/min
Maximum Hydraulic Flow34 gpm
Maximum Operating Pressure24131.7 kPa
Maximum Operating Pressure3500 psi

Cutting

Cutting Width1270 mm
Cutting Width50 in.

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quick-connect couplers
Mid-Size Excavator50G, 50 P-Tier, 60G, 60 P-Tier
