John Deere RE40 Brush Cutter for Compact Excavators

Double tap to zoom



Features

Reach Difficult Vegetation

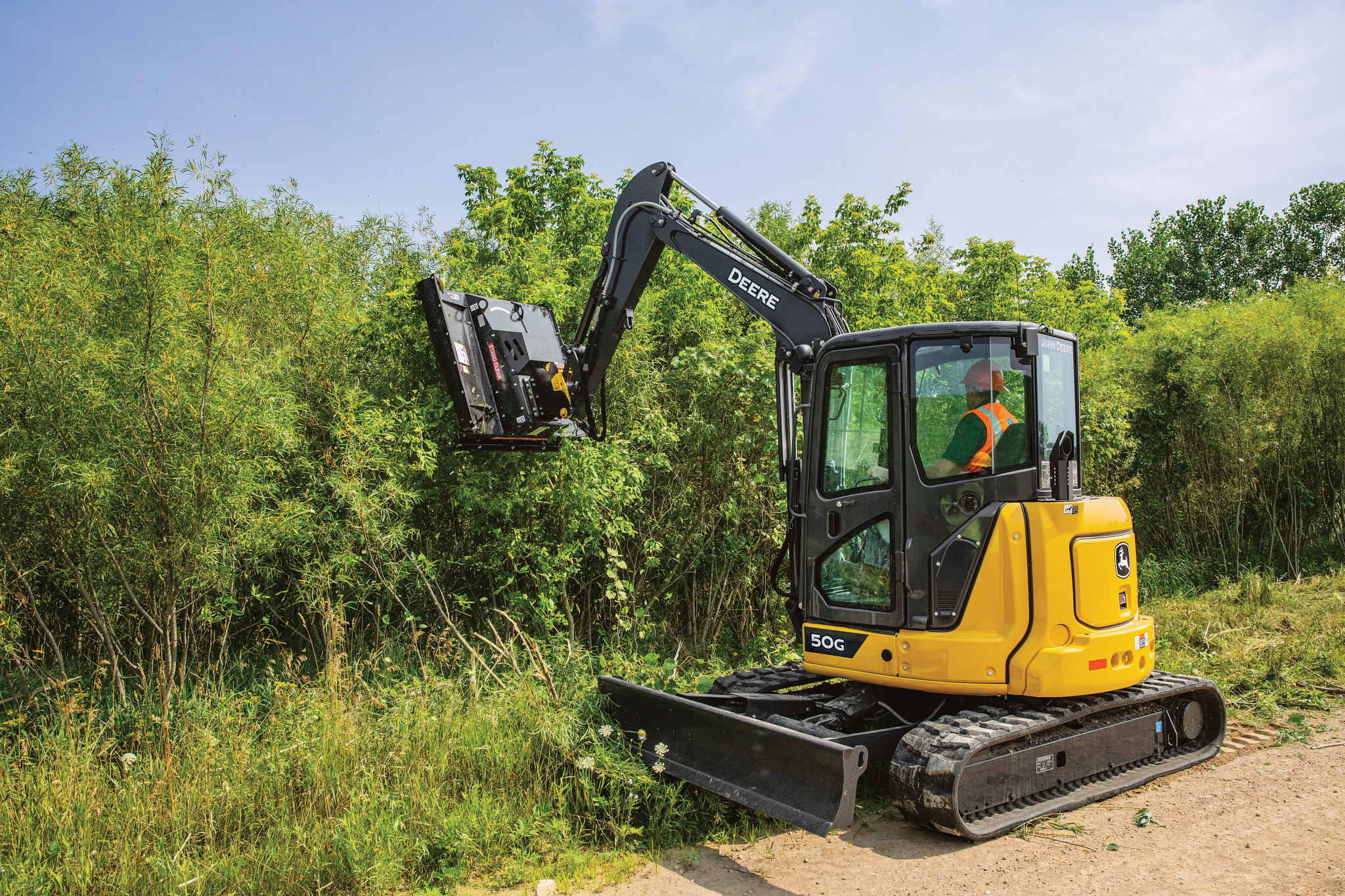

Compact track excavator with a brush cutter trimming dense vegetation along the edge of a path

With its flexible configuration, the brush cutter is versatile across excavators and allows for vegetation management in hard-to-reach areas. Its reversible blades and bolt-on mounting system make it adaptable, enhancing usability in various settings.

More Efficient Performance

Metal attachment with hinged panels and protruding blades or fins underneath; red lettering reading “DIAMOND TRACK ORCHARD” on the side, and small warning label on the top surface.

The rotary brush cutter uses three swinging blades mounted to a blade carrier to enhance cutting performance, tackling material up to 6 in. (153 mm) in diameter. The beveled blades create finer debris for easier recycling, and the automatic hydraulic braking stops blade rotation quickly when turned off.

Durable in Tough Environments

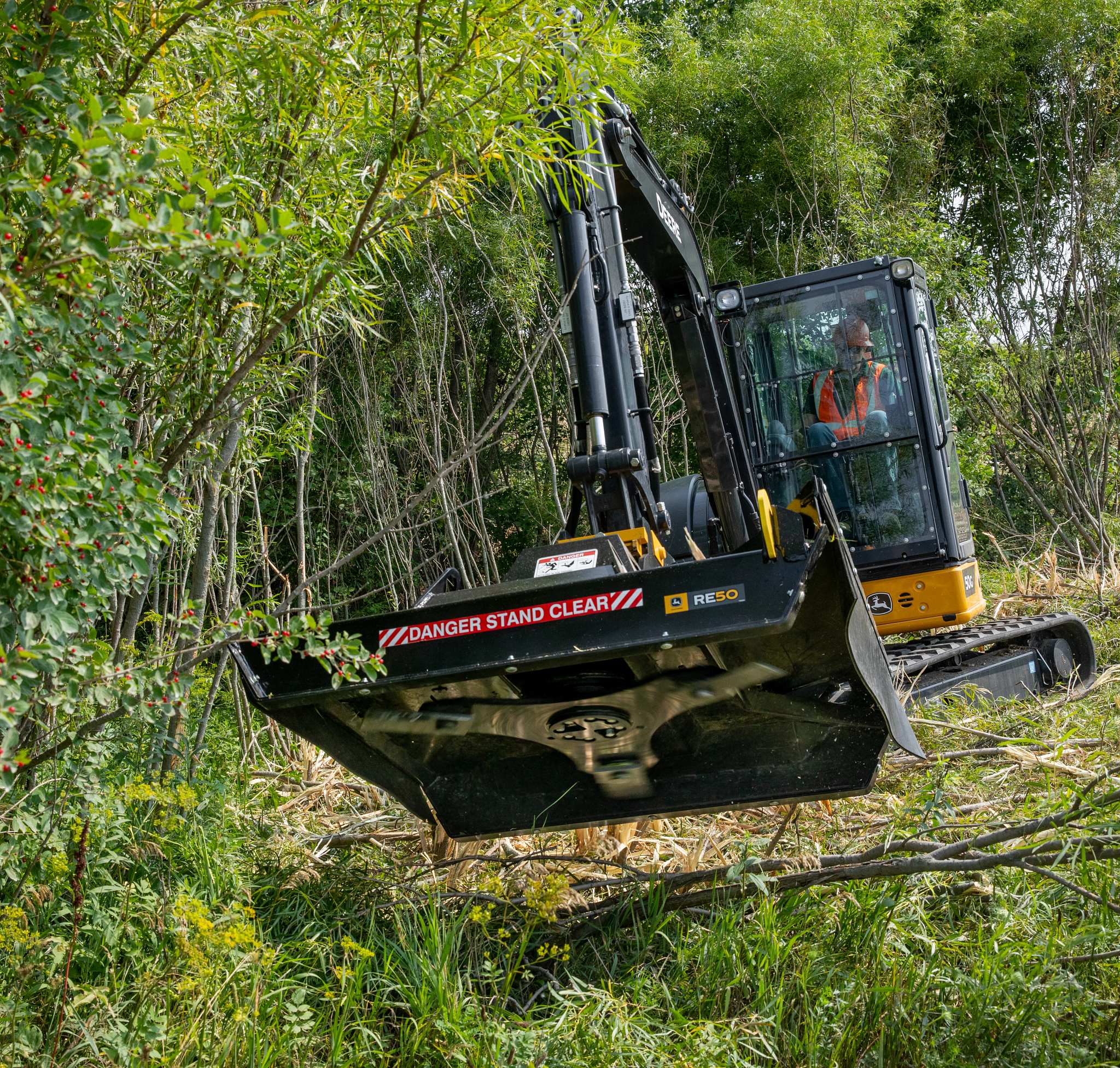

Front view of an RE50 brush cutter hoisted above shrubs and sticks in the woods by its attached compact excavator.

Constructed with a heavy-duty, solid formed steel deck, the cutter is built to last. The hydraulic motor's heavy-duty bearing housing ensures long hydraulic life, while the blades are made from abrasion-resistant steel, minimizing downtime for replacements.

Specifications

Rotary Cutter

Weight299.4 kg
Weight660 lb.
Overall Height584.2 mm
Overall Height23 in.
Overall Width1346.2 mm
Overall Width53 in.
Overall Length1193.8 mm
Overall Length47 in.

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quick-connect couplers
Compact Excavator35G, 35 P-Tier

Hydraulics

Minimum Hydraulic Flow49.2 L/min
Minimum Hydraulic Flow13 gpm
Maximum Hydraulic Flow71.9 L/min
Maximum Hydraulic Flow19 gpm
Maximum Operating Pressure24131.7 kPa
Maximum Operating Pressure3500 psi

Cutting

Cutting Width1016 mm
Cutting Width40 in.
Minimum Cutting Height57.2 mm
Minimum Cutting Height2.25 in.

Blades

Number of Blades3
