John Deere RC72B

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / RC72B

Double tap to zoom



Features

Cut Both Directions

Underside of a rotary cutter, with chain shield across the top and three rectangular blades spaced out in the center

Triple bi‑directional, 0.75‑in. high‑grade steel blades improve balance and let you cut forward or reverse for higher efficiency.

Stop Blades Fast

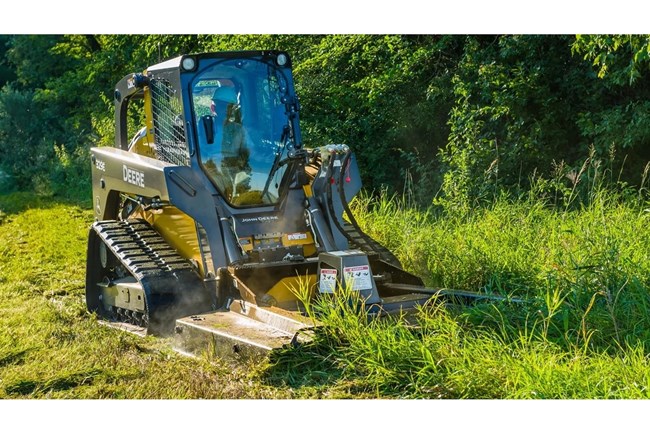

Front left view of a 317G compact track loader in the woods with front-attached RC72B rotary cutter, clearing shrubs and sticks from a muddy clearing

Hydraulic valve stops blades within seconds at shutdown, designed to enhance operator safety during clearing work.

Protect Critical Components

Close-up view of a gray pressure gauge nestled with cables inside a metal protective cage.

Motor cover shields hydraulic motor and connections from debris; optional pressure gauge helps monitor load and avoid overheating.

Specifications

Cutting

Cutting Width1828.8 mm
Cutting Width72 in.
Minimum Cutting Height50.8 mm
Minimum Cutting Height2 in.
Cutting Capacity (Maximum Tree Diameter)101.6 mm
Cutting Capacity (Maximum Tree Diameter)4 in.

Rotary Cutter

Weight580.6 kg
Weight1280 lb.
Overall Height609.6 mm
Overall Height24 in.
Overall Width1930.4 mm
Overall Width76 in.
Overall Length2235.2 mm
Overall Length88 in.
Deck Thickness6.35 mm
Deck Thickness0.25 in.

Hydraulics

Minimum Hydraulic Flow56.78 L/min
Minimum Hydraulic Flow15 gpm
Maximum Operating Pressure24131.5 kPa
Maximum Operating Pressure3500 psi

Blades

Number of Blades3
Blade Thickness19.05 mm
Blade Thickness0.75 in.

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quick-connect couplers
Compact Track Loader317G, 325G, 331G, 333G
Skid Steer Loader318G, 320G, 324G, 330G, 332G
