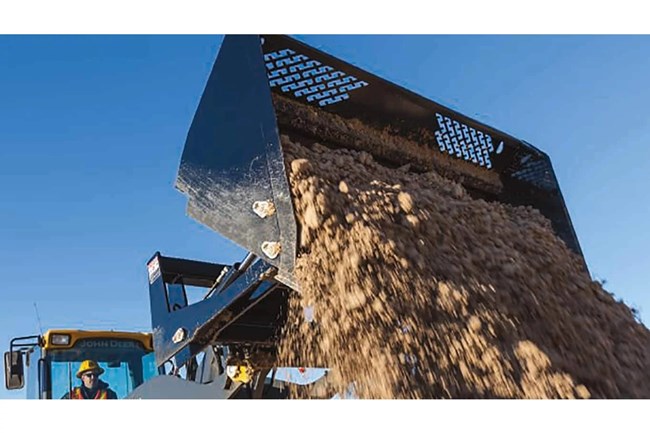

John Deere RB96 Rollout Bucket
Double tap to zoom
RB96 Rollout Bucket
Construction Attachments
Overview:
The RB96 Rollout Bucket offers unparalleled efficiency with its extended reach and increased dump height, making it the ideal choice for handling and loading applications that demand precision and versatility in rugged environments.
- Open Design That Enables Quick, Clean, and Easy Material Loading
- Three Sizes for Achieving Elevated Dump Heights in High-Capacity Applications
- Standard Universal Bolt-On Cutting Edge for Extended Wear Life
- Durable Construction
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Pivoting Cut Edge Boosts Dump Height
The rollout bucket enables loading light materials into tall bins by pivoting near its cutting edge to provide extra dump height without raising the machine’s hinge pin above the hopper.
Superior Operation
High-strength, large-diameter pivot pins enhance durability, while a 114-degree bucket rollout ensures excellent material spillage.
Open Design Improves Loading
Quality-manufactured John Deere rollout buckets feature an open design that enables quick, clean, and easy material loading.
Specifications
Hydraulic Cylinders
| Bore Diameter | 64 mm |
| Bore Diameter | 2.5 in. |
| Pivot Pin Diameter | 38 mm |
| Pivot Pin Diameter | 1.5 in. |
| Rod Diameter | 38 mm |
| Rod Diameter | 1.5 in. |
| Maximum Operating Pressure | 25000 kPa |
| Maximum Operating Pressure | 3625 psi |
Dimensions
| Weight | 618 kg |
| Weight | 1360 lb. |
| Width | 2480 mm |
| Width | 97.5 in. |
| Height | 820 mm |
| Height | 32.3 in. |
| Length Overall | 1270 mm |
| Length Overall | 50 in. |
| Heaped Capacity | 1.28 m³ |
| Heaped Capacity | 45.36 cu ft |
| Dump Reach (Heaped Capacity) | 860 mm |
| Dump Reach (Heaped Capacity) | 34 in. |
| Dump Angle (Heaped Capacity) | 114 degree (angle) |
Cutting Edge
| Length | 200 mm |
| Length | 8 in. |
| Thickness | 19 mm |
| Thickness | 0.75 in. |
Vehicle Compatibility
| Compact Track Loader | 331G, 333G |
| Compact Wheel Loader | 204L, 244L, 304L, 324L |
| Skid Steer Loader | 330G, 332G |
