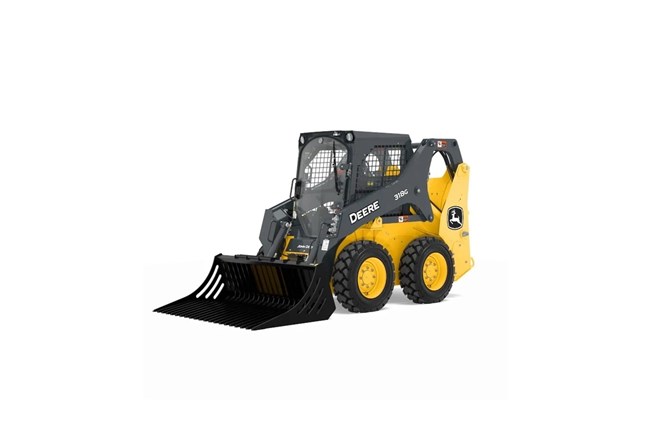

John Deere R66 Rock Bucket

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / R66 Rock Bucket

Double tap to zoom



Features

Size to Match Your Loader and Material

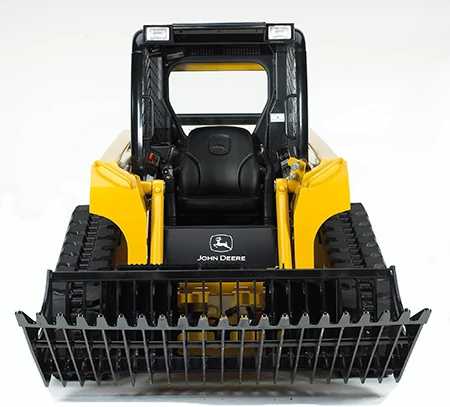

Front studio view of a compact track loader with an R-Series rock bucket attached to the front.

Pick 68 in. (R66), 74.8 in. (R75), or 81.4 in. (R84) widths to match material volume and machine size.

Efficient Rock Sifting

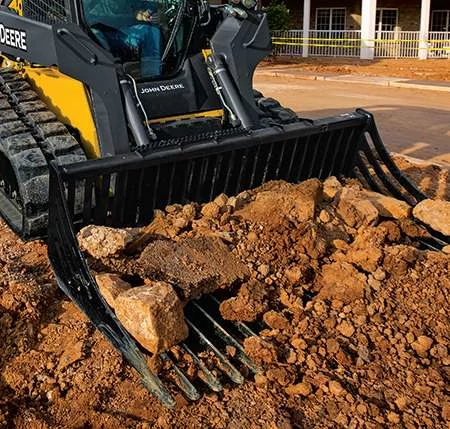

Close-up front angled view of a rock bucket attachment sifting rocks from dirt on a residential jobsite.

Uniform 3-in. tine spacing helps retain rocks while letting soil and small debris fall through for quicker sorting.

Balanced, Durable Build

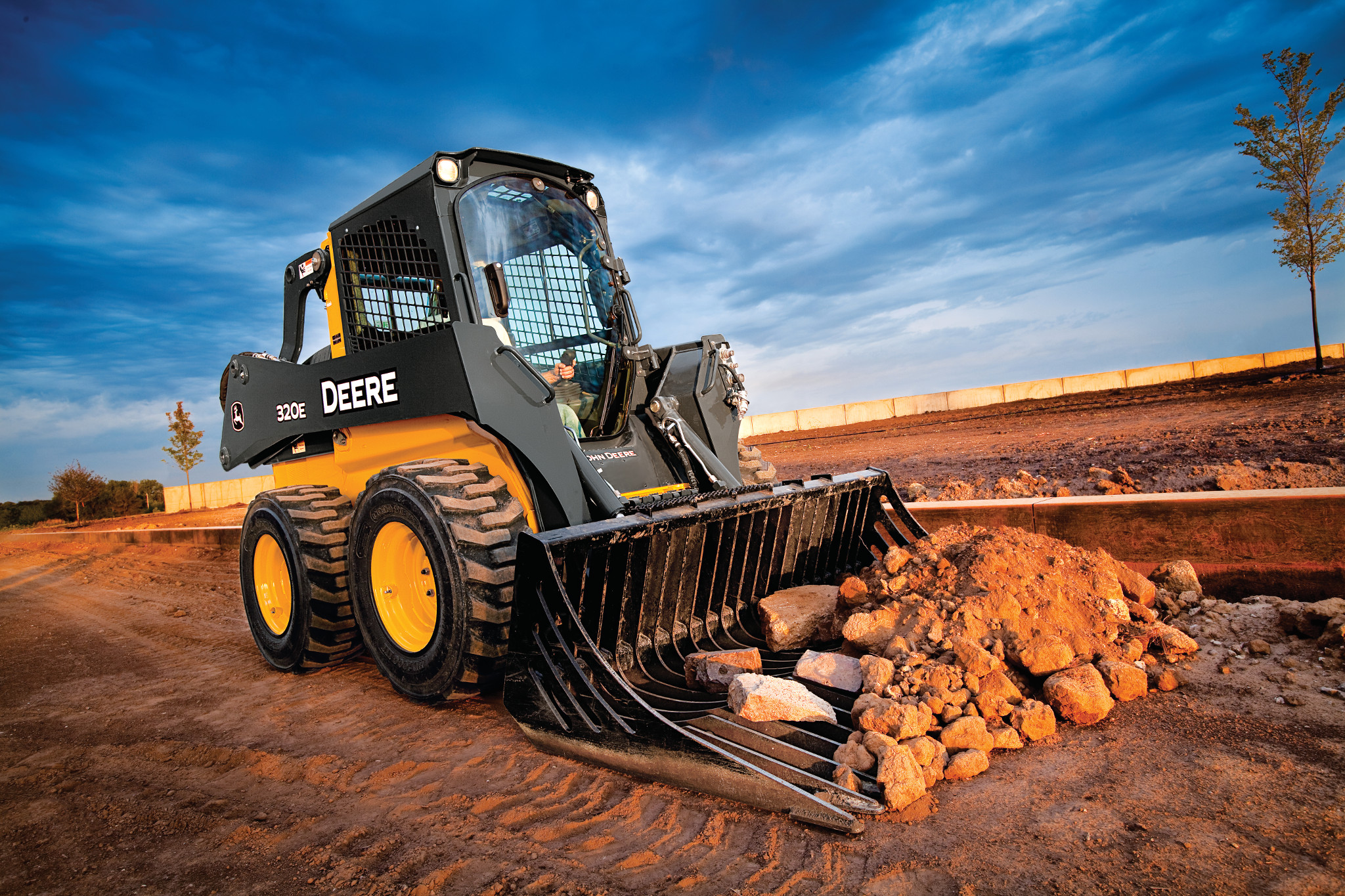

A compact skid-steer loader with “DEERE” branding uses a rock bucket attachment to scoop a pile of large stones and dirt on a construction site, with tire tracks visible in the soil, a low retaining wall in the background, and a clear blue sky above.

All John Deere Rock Buckets share a compact 25.2-in. height and 44.2-in. length for visibility and handling; weights scale by model at 600 lbs (R66), 650 lbs (R75), and 750 lbs (R84).

Specifications

Dimensions

Weight272 kg
Weight600 lb.
Width1727 mm
Width68 in.
Height640 mm
Height25.2 in.
Length Overall1123 mm
Length Overall44.2 in.

Vehicle Compatibility

Compact Track Loader317G
Skid Steer Loader316GR, 318G, 320G, 324G

Tines

Tine Spacing76 mm
Tine Spacing3 in.
Tine Thickness9.5 mm
Tine Thickness0.375 in.
