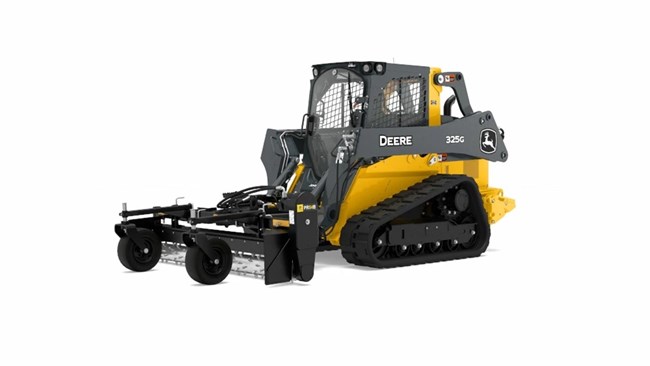

John Deere PR84B Power Rake

Double tap to zoom



Features

Finish Jobs Quickly and Economically

Side right view of a 315 skid steer using a power rake front attachment on a dirt lot next to a brick retaining wall

John Deere power rakes are ideal for tasks such as seedbed preparation, rock raking, and site development. They include adjustable end plates that allow them to function as a box scraper, effectively gathering stones for collection. The capability for both forward and backward raking significantly reduces the time needed for job completion.

Heavy-Duty Design for Durability

Front left view of angle power rake mounted on front of a skid steer loader raking dirt along a sidewalk next to a building

Long-life carbide teeth on the roller actively dig, lift, and pulverize dirt to create an optimal seedbed sub-base pattern that enhances moisture retention for seed growth. A heavy-duty drive chain enclosed in a sealed oil bath minimizes maintenance needs.

Hydraulically Angled Rake Provides Better Maneuverability

Front right view of a 324G skid steer using attached PR72B angle power rake in the soil in front of a new-build house

Make rake adjustments on the go, for increased versatility and maximum productivity. Power rake roller assemblies can rotate 20 degrees from center in either direction, allowing material to be moved left or right (requires 12-V kit).

Specifications

Dimensions

Width Raking2134 mm
Width Raking84 in.
Width Operating2362 mm
Width Operating93 in.
Length1625 mm
Length64 in.
Height812 mm
Height32 in.
Box End PlatesFront or rear
Tooth Roller Diameter229 mm
Tooth Roller Diameter9 in.
Weight476 kg
Weight1050 lb.
Angle Control Rotation (12-V Kit Required)0-20 degree (angle)

Vehicle Compatibility

Compact Track Loader317G, 325G, 331G, 333G
Skid Steer Loader320G, 324G, 330G, 332G
