John Deere PF60 Severe Duty Pallet Fork – Quik Tatch

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / PF60 Severe Duty Pallet Fork – Quik Tatch

Double tap to zoom



Features

Improved Visibility and Capacity

Side left view of a 333G Skid Steer with PF-Series pallet forks attachment hauling a pallet in a parking lot

Severe-duty fork frames provide improved visibility, capacity, and better durability for tackling robust tasks. They are designed with high strength to handle frequently palletized materials, ensuring they meet the demands of tough environments.

ITA Class 3B Rated Tines

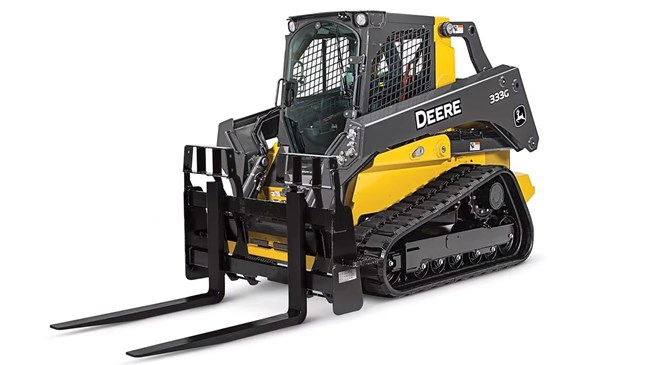

Front left studio view of a 333G compact track loader with attached PF series severe duty pallet fork resting on the floor

The tines are ITA class 3B rated, available in 48-in. and 60-in. (122-cm and 152.4-cm) lengths, catering to different operational needs. This flexibility allows handling various applications efficiently, ensuring robust performance across numerous tasks.

Optional Bolt-On Brick Guard

Computer-generated graphic of a PF60 severe duty pallet fork with red-highlighted optional Bolt-On Brick Guard

For additional safety, an optional bolt-on brick guard enhances protection during intensive operations. These guards, highlighted for select scenarios, ensure added stability, especially during challenging tasks and conditions.

Specifications

Fork Tines

Fork Suspension ClassITA Class 3B
Minimum Fork Tine Length1220 mm
Minimum Fork Tine Length48 in.
Maximum Fork Tine Length1520 mm
Maximum Fork Tine Length60 in.
Fork Tine Pair Load Rating4490 kg
Fork Tine Pair Load Rating9900 lb.
Fork Thickness50 mm
Fork Thickness2 in.
Fork Spacing136 mm
Fork Spacing5.35 in.

Frame

Frame Width1520 mm
Frame Width60 in.
Frame Height535 mm
Frame Height21 in.
Overall Length with Frame and Two Minimum Length Tines1445 mm
Overall Length with Frame and Two Minimum Length Tines57 in.
Overall Length with Frame and Two Maximum Length Tines1750 mm
Overall Length with Frame and Two Maximum Length Tines69 in.

Vehicle Compatibility

Compact Wheel Loaders184 G-Tier, 204G-Tier, 244 P-Tier, 304 G-Tier, 324 P-Tier

Weight

Overall Weight with Frame and Two Minimum Length Tines342 kg
Overall Weight with Frame and Two Minimum Length Tines754 lb.
Overall Weight with Frame and Two Maximum Length Tines370 kg
Overall Weight with Frame and Two Maximum Length Tines816 lb.
