John Deere PF60 Severe Duty Pallet Fork

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / PF60 Severe Duty Pallet Fork

Double tap to zoom



Features

Improved Visibility and Capacity

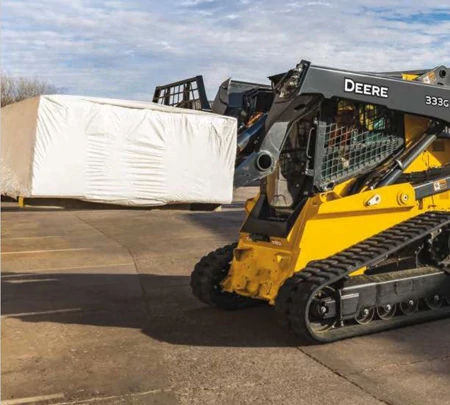

Side left view of a 333G Skid Steer with PF-Series pallet forks attachment hauling a pallet in a parking lot

Severe-duty fork frames provide improved visibility, capacity, and better durability for tackling robust tasks. They are designed with high strength to handle frequently palletized materials, ensuring they meet the demands of tough environments.

ITA Class 3B Rated Tines

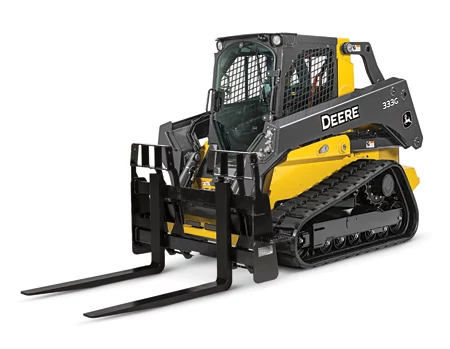

Front left studio view of a 333G compact track loader with attached PF series severe duty pallet fork resting on the floor

The tines are ITA class 3B rated, available in 48-in. and 60-in. (122-cm and 152.4-cm) lengths, catering to different operational needs. This flexibility allows handling various applications efficiently, ensuring robust performance across numerous tasks.

Optional Bolt-On Brick Guard

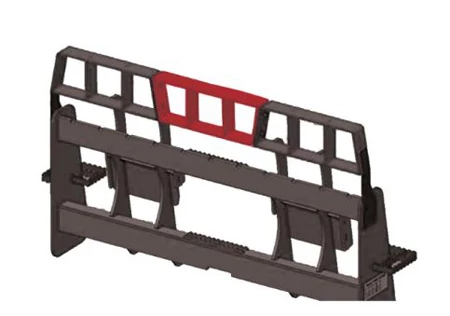

Computer-generated graphic of a PF60 severe duty pallet fork with red-highlighted optional Bolt-On Brick Guard

For additional safety, an optional bolt-on brick guard enhances protection during intensive operations. These guards, highlighted for select scenarios, ensure added stability, especially during challenging tasks and conditions.

Specifications

Vehicle Compatibility

Compact Track Loaders331G, 333G, 331 P-Tier, 333 P-Tier, 335 P-Tier
Skid Steer Loaders330G, 332G, 330 P-Tier, 334 P-Tier

Weight

Overall Weight with Frame and Two Minimum Length Tines359 kg
Overall Weight with Frame and Two Minimum Length Tines790 lb.
Overall Weight with Frame and Two Maximum Length Tines388 kg
Overall Weight with Frame and Two Maximum Length Tines854 lb.
Brick Guard Kit8 kg
Brick Guard Kit18 lb.

Fork Tines

Fork Suspension ClassITA Class 3B
Minimum Fork Tine Length1220 mm
Minimum Fork Tine Length48 in.
Maximum Fork Tine Length1520 mm
Maximum Fork Tine Length60 in.
Fork Tine Pair Load Rating4490 kg
Fork Tine Pair Load Rating9900 lb.
Fork Cross Section119.4 x 50 mm
Fork Cross Section4.7 x 2 in.
Fork Thickness50 mm
Fork Thickness2 in.
Fork Spacing136 mm
Fork Spacing5.35 in.

Frame

Frame Width1730 mm
Frame Width68 in.
Frame Height940 mm
Frame Height67 in.
Overall Length with Frame and Two Minimum Length Tines1520 mm
Overall Length with Frame and Two Minimum Length Tines60 in.
Overall Length with Frame and Two Maximum Length Tines1830 mm
Overall Length with Frame and Two Maximum Length Tines72 in.
