John Deere PD84 Level Best® Box Blade - Topcon 3D Ready System

Double tap to zoom



Features

Foam-Filled Tires on an Oscillating Axle

Front view of a 317G Compact Track Loader grading dirt lot with attached front box blade

The foam-filled tires and oscillating axle provide exceptional control and smooth operation. This design minimizes bounce, ensuring consistent grading results and enhancing productivity in skid steer loaders.

Easily Replaceable Bolt-On Steel Edges

Close-up front view of the bolt-on steel cutting edge of a box blade attached to the front of a 333G compact track loader

All Level Best® Dual Mast PD-Series come standard with bolt-on steel cutting edges that are replaceable and reversible. These hinged edges help keep box from riding up in hard soil or other hard surfaces, out performing standard cutting edges. Level Best is a trademark of ATI Corporation.

More Comfortable with the Smoothest Operation Available

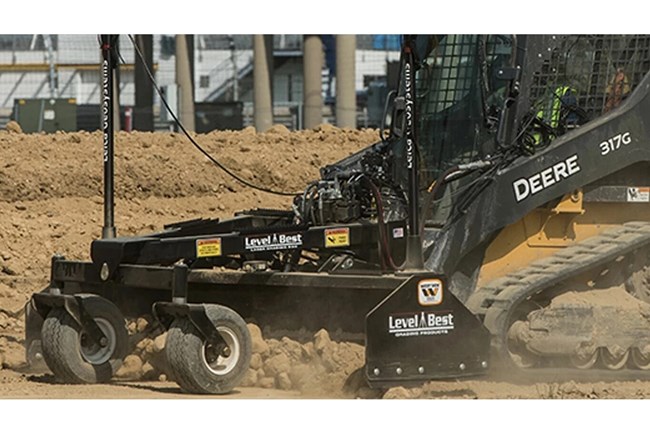

Side right view of a 317G compact track loader with front Level Best attachment working on the dirt infield of a racetrack

With over 50 automatic adjustments per second, operators experience smoother operation from dead-level to contoured surfaces. It allows faster achievement of highly accurate grades down to 0.01 in. (0.25 mm), enhancing operator comfort and accuracy.

Specifications

Width

Overall Width2215.15 mm
Overall Width87.25 in.
Box Width2133 mm
Box Width84 in.

Operation

Front Box Capacity0.38 m³
Front Box Capacity13.4 cu ft
Rear Box Capacity0.23 m³
Rear Box Capacity8 cu ft

Length

Total Length1810.75 mm
Total Length71.25 in.

Vehicle Compatibility

Compact Track Loader317G, 325G, 331G, 333G
Skid Steer Loader318G, 320G, 324G, 330G, 332G

Weight

Weight939 kg
Weight2070 lb.

Hydraulics

Hydraulic Flow56.8–94.6 L/min
Hydraulic Flow15–25 gpm
Maximum Operating Pressure27579 kPa
Maximum Operating Pressure4000 psi
