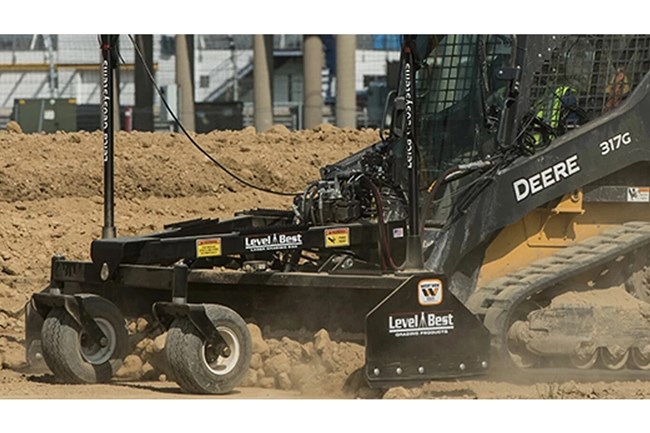

John Deere PD72 Level Best® Box Blade - Topcon 3D Ready System
PD72 Level Best® Box Blade - Topcon 3D Ready System
Construction Attachments
Overview:
The 72” Box Blade - Topcon 3D Ready System offers precise and efficient land grading capabilities with advanced 3D positioning technology, ensuring optimal productivity and accuracy for professional-grade projects.
- 3D Topcon Grade-Control Ready
- Push-Pull Design Moves the Material for Fine Grading
- Two Cylinders Provide Cross-Slope Operation
- Replaceable Steel Edges
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Foam-Filled Tires on an Oscillating Axle

The foam-filled tires and oscillating axle provide exceptional control and smooth operation. This design minimizes bounce, ensuring consistent grading results and enhancing productivity in skid steer loaders.
More Comfortable with the Smoothest Operation Available

With over 50 automatic adjustments per second, operators experience smoother operation from dead-level to contoured surfaces. It allows faster achievement of highly accurate grades down to 0.01 in. (0.25 mm), enhancing operator comfort and accuracy.
Easily Replaceable Bolt-On Steel Edges

All Level Best® Dual Mast PD-Series come standard with bolt-on steel cutting edges that are replaceable and reversible. These hinged edges help keep box from riding up in hard soil or other hard surfaces, out performing standard cutting edges. Level Best is a trademark of ATI Corporation.
Specifications
Width
| Overall Width | 1912.85 mm |
| Overall Width | 75.25 in. |
| Box Width | 1829 mm |
| Box Width | 72 in. |
Operation
| Front Box Capacity | 0.33 m³ |
| Front Box Capacity | 11.5 cu ft |
| Rear Box Capacity | 0.2 m³ |
| Rear Box Capacity | 7 cu ft |
Length
| Total Length | 1810.75 mm |
| Total Length | 71.25 in. |
Vehicle Compatibility
| Compact Track Loader | 317G |
| Skid Steer Loader | 316GR, 318G |
Weight
| Weight | 916 kg |
| Weight | 2020 lb. |
Hydraulics
| Hydraulic Flow | 56.8–94.6 L/min |
| Hydraulic Flow | 15-25 gpm |
| Maximum Operating Pressure | 27579 kPa |
| Maximum Operating Pressure | 4000 psi |
