John Deere PC4 Plate Compactor
Double tap to zoom
PC4 Plate Compactor
Construction Attachments
Overview:
The John Deere PC4 Plate Compactor delivers unparalleled soil compaction efficiency and durability, providing superior ground preparation for any construction project with the trusted reliability and innovation associated with the John Deere brand.
- Designed Specifically for Trench-, Slope-, and Excavation-Compaction Applications
- Large Eccentric Weight Offset from Motor Shaft Results in Improved Compaction Rates
- Eccentric Rotating Weight
- Maintenance-Free Operation
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

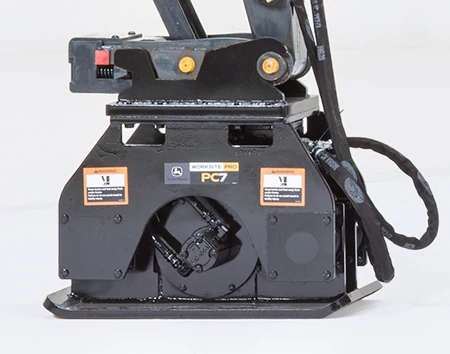

Eccentric Housing for Motor Protection
To maximize reliability and durability, the motor is inset within the frame for protection from damage.

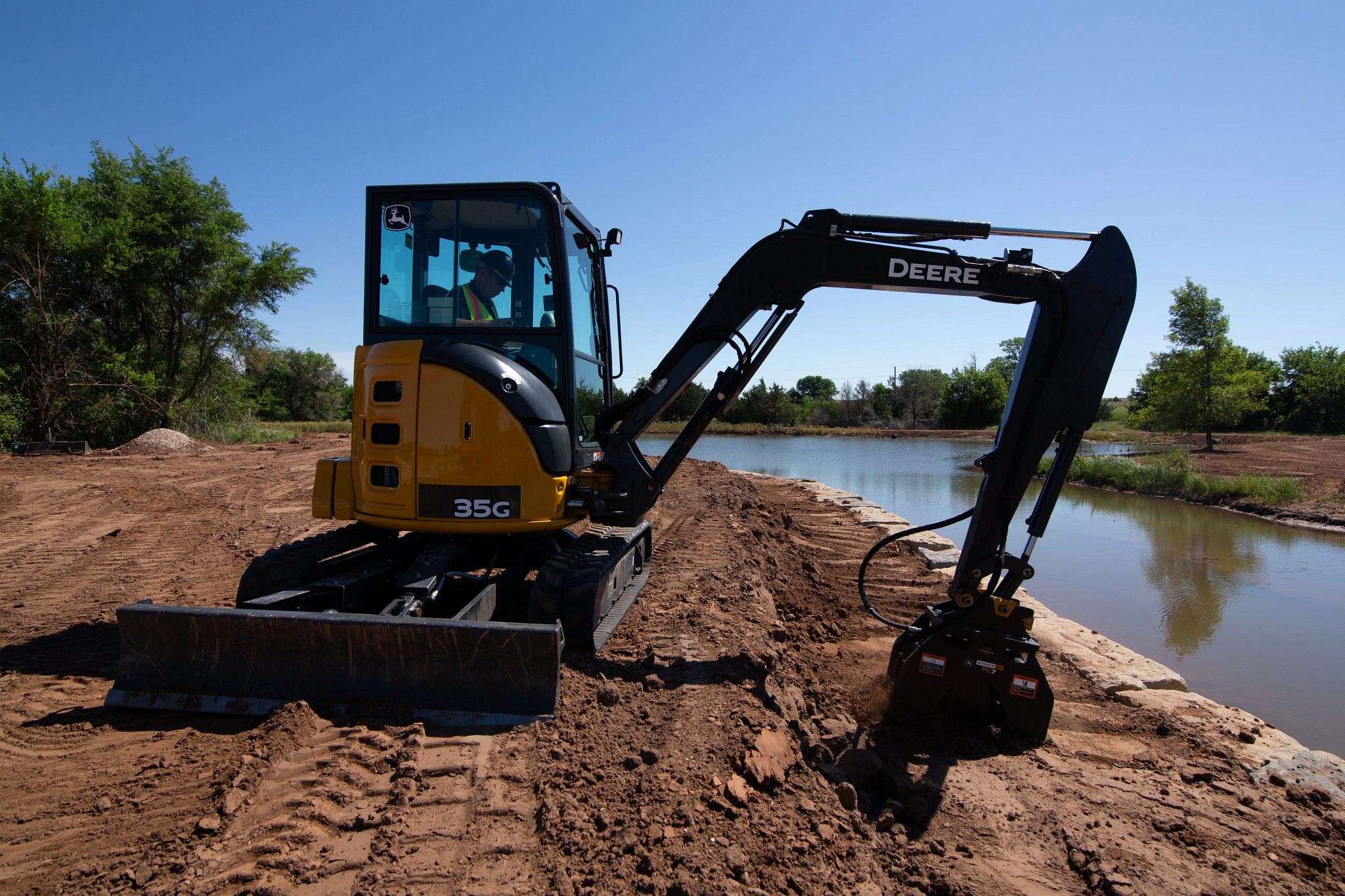

Designed for Multiple Applications
The PC Series Plate Compactor is optimized for use with John Deere compact excavators and backhoe loaders, and it's compatible with many competitive models. Designed for trench, slope, and excavation compaction, it offers a reliable choice for varied construction applications.
High Impulse Force with Eccentric Weight
To deliver the best productivity and performance, a large eccentric rotating weight that creates vibration and impulse energy, offset from motor shaft centerline, helps provide high impulse force resulting in improved compaction rates.
Specifications
Plate Compactor Operation
| Compaction Area | 2095 cm² |
| Compaction Area | 325 sq in. |
| Cycles/Minute at Regulated Flow | 2000 |
| Impact Force | 17.8 kN |
| Impact Force | 4000 lbf |
Dimensions
| Weight Without Mounting Bracket | 180 kg |
| Weight Without Mounting Bracket | 397 lb. |
| Length | 780 mm |
| Length | 30.7 in. |
| Width | 330 mm |
| Width | 13 in. |
| Height Without Mounting Bracket | 515 mm |
| Height Without Mounting Bracket | 20.3 in. |
| Compactor Plate Dimensions | 330 x 635 mm |
| Compactor Plate Dimensions | 13 x 25 in. |
Hydraulics
| Hydraulic Flow Range | 34-53 L/min |
| Hydraulic Flow Range | 9-14 gpm |
| Regulated Flow | 64 L/min |
| Regulated Flow | 9 gpm |
| Operating Pressure | 17930 kPa |
| Operating Pressure | 2600 psi |
| Pressure Relief Setting | 20680 kPa |
| Pressure Relief Setting | 3000 psi |
Vehicle Compatibility
| Compact Excavator | 26G, 30G, 35G |
