John Deere PA40 Planetary Drive Auger

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / PA40 Planetary Drive Auger

Double tap to zoom



Features

High-Torque Performance

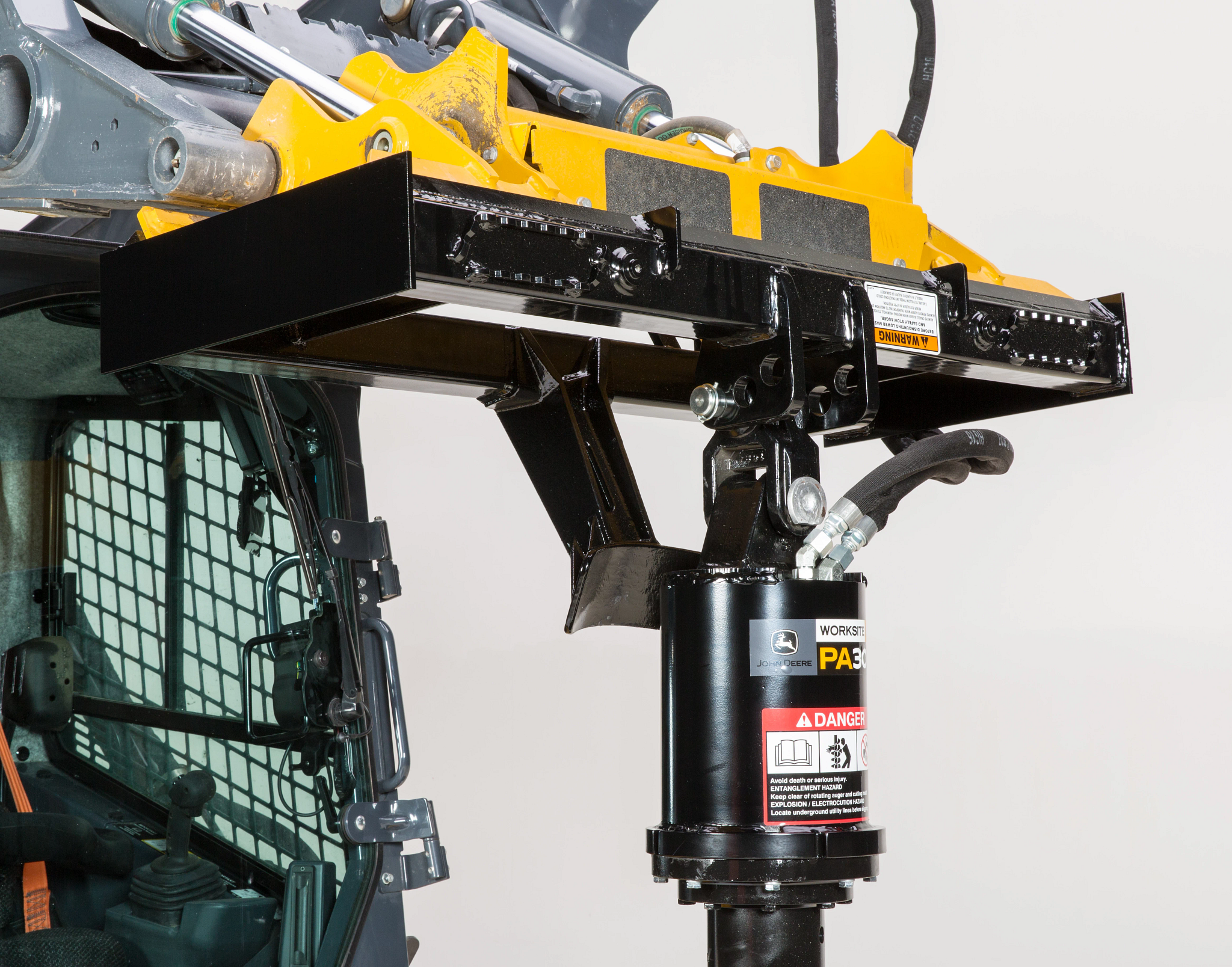

Front right close-up of a PA30B planetary auger's hydraulic motor and attachment site to a 331G compact track loader

The PA40 delivers powerful drilling capability with a planetary-drive system designed for high-torque output, making it ideal for demanding applications like large-diameter holes and tough ground conditions.

Durability You Can Count On

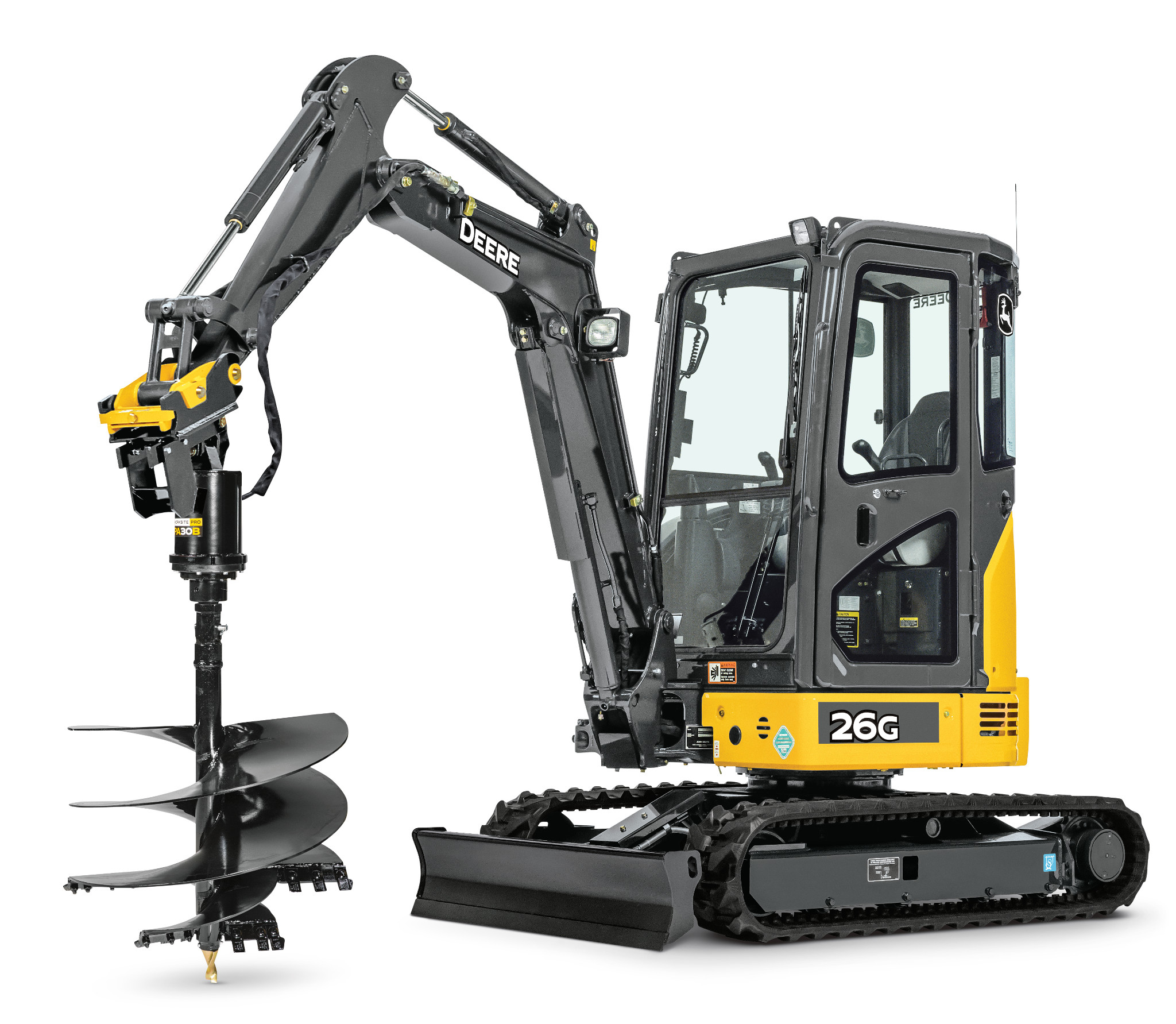

John Deere 26G Compact Excavator on rubber tracks with an enclosed cab, fitted with a hydraulic planetary drive auger, shown on a white background

Enhanced hydraulic motors and a heavy-duty gearbox design compared to previous models increase reliability and reduce component stress, helping the auger hold up in harsh conditions and over extended use.

Designed for Uptime

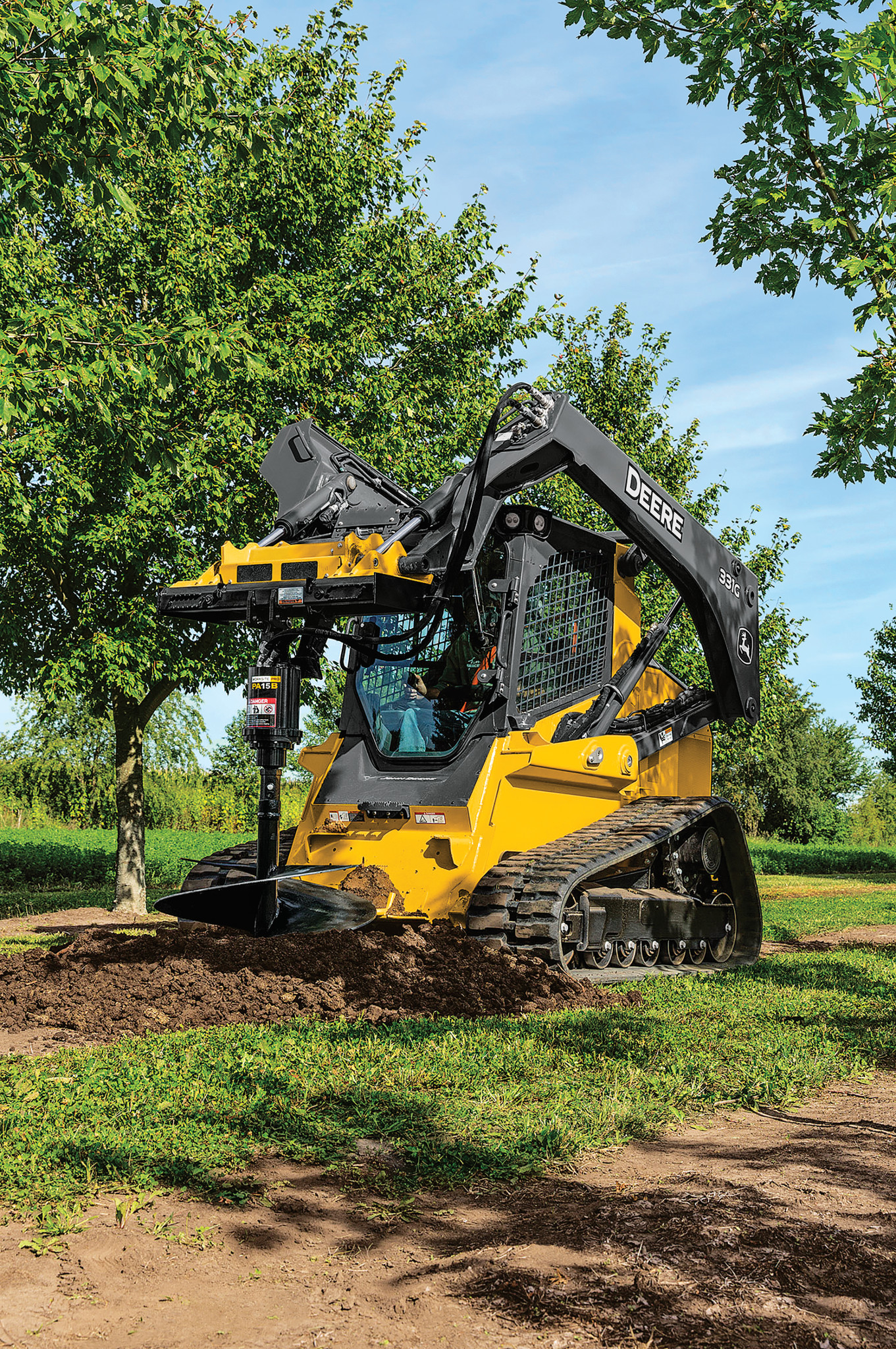

Front left view of compact track loader with front-mounted auger attachment drilling into dirt on a grassy area beneath trees

Sealed, oil-lubricated components and reverse rotation functionality reduce maintenance needs and allow quick recovery from obstructions, keeping operators productive on the job.

Specifications

Planetary Drive

Output Shaft ShapeHexagon
Output Shaft Size51 mm
Output Shaft Size2 in.
Output Torque7250 Nm
Output Torque5347 lb-ft

Output Speed

106 L/min (28 gpm)56 rpm
114 L/min (30 gpm)60 rpm
124 L/min (33 gpm)66 rpm
136 L/min (36 gpm)72 rpm
148 L/min (39 gpm)78 rpm
159 L/min (42 gpm)84 rpm

Auger Bit

Maximum Auger Bit Diameter910 mm
Maximum Auger Bit Diameter36 in.
Overall Auger Bit Length1220 mm
Overall Auger Bit Length48 in.
Heavy-Duty Auger Bit Minimum Diameter Available100 mm
Heavy-Duty Auger Bit Minimum Diameter Available4 in.
Heavy-Duty Auger Bit Maximum Diameter Available910 mm
Heavy-Duty Auger Bit Maximum Diameter Available36 in.
Heavy-Duty Difficult Ground Auger Bit Minimum Diameter Available230 mm
Heavy-Duty Difficult Ground Auger Bit Minimum Diameter Available9 in.
Heavy-Duty Difficult Ground Auger Bit Maximum Diameter Available610 mm
Heavy-Duty Difficult Ground Auger Bit Maximum Diameter Available24 in.
Rock Bit Minimum Diameter Available230 mm
Rock Bit Minimum Diameter Available9 in.
Rock Bit Maximum Diameter Available300 mm
Rock Bit Maximum Diameter Available12 in.
Tree and Shrub Auger Bit Minimum Diameter Available460 mm
Tree and Shrub Auger Bit Minimum Diameter Available18 in.
Tree and Shrub Auger Bit Maximum Diameter Available910 mm
Tree and Shrub Auger Bit Maximum Diameter Available36 in.

Auger Drive

Auger Drive Weight, Without Mounting Bracket89 kg
Auger Drive Weight, Without Mounting Bracket195 lb.
Auger Drive Diameter350 mm
Auger Drive Diameter14 in.
Auger Drive Length, Without Auger Bit440 mm
Auger Drive Length, Without Auger Bit17 in.

Hydraulics

Minimum Hydraulic Flow106 L/min
Minimum Hydraulic Flow28 gpm
Maximum Hydraulic Flow159 L/min
Maximum Hydraulic Flow42 gpm
Maximum Operating Pressure24100 kPa
Maximum Operating Pressure3500 psi

Vehicle Compatibility

Skid Steer Loader330G, 332G
Compact Track Loader331G, 333G
Compact Wheel Loader (Requires Skid Steer Style Quick Coupler for Operation)244L, 324L
