Features
Increased Durability and Reliability

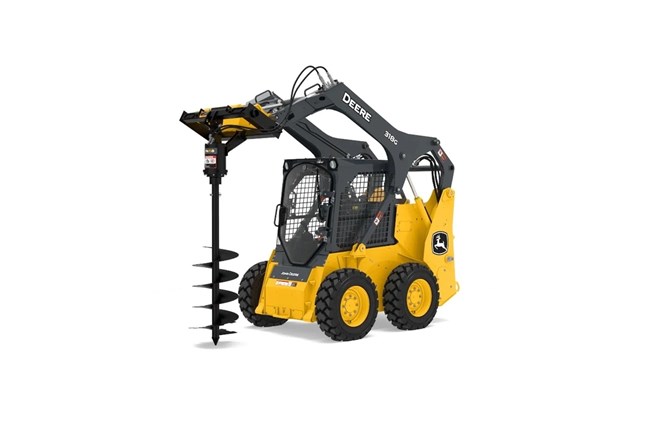

The auger features enhanced hydraulic motors and components for greater durability and reliability. With a higher-rated operating pressure, a large, durable motor shaft seal, and a hex driveshaft, it provides increased performance and reduces downtime.
Increased Efficiency and Reduced Stress
An updated auger gearbox and housing improve efficiency and reduce stress on the machine. The heavy-duty gear design ensures long life with minimal maintenance. The planetary gearbox brings the gear set closer to the motor, with increased planetary gears for higher torque.
Maintenance Reduction and Uptime Increase
Improved operating features reduce maintenance needs and increase uptime. The auger includes reverse rotation for easy backing out when obstructions are encountered and utilizes spring-loaded, double-lipped seals to guard against contamination.
Specifications
Auger Bit
| Maximum Auger Bit Diameter | 610 mm |
| Maximum Auger Bit Diameter | 24 in. |
| Overall Auger Bit Length | 1220 mm |
| Overall Auger Bit Length | 48 in. |
| Heavy-Duty Auger Bit Minimum Diameter Available | 100 mm |
| Heavy-Duty Auger Bit Minimum Diameter Available | 4 in. |
| Heavy-Duty Auger Bit Maximum Diameter Available | 910 mm |
| Heavy-Duty Auger Bit Maximum Diameter Available | 36 in. |
| Heavy-Duty Difficult Ground Auger Bit Minimum Diameter Available | 230 mm |
| Heavy-Duty Difficult Ground Auger Bit Minimum Diameter Available | 9 in. |
| Heavy-Duty Difficult Ground Auger Bit Maximum Diameter Available | 610 mm |
| Heavy-Duty Difficult Ground Auger Bit Maximum Diameter Available | 24 in. |
| Rock Bit Minimum Diameter Available | 230 mm |
| Rock Bit Minimum Diameter Available | 9 in. |
| Rock Bit Maximum Diameter Available | 300 mm |
| Rock Bit Maximum Diameter Available | 12 in. |
| Tree and Shrub Auger Bit Minimum Diameter Available | 460 mm |
| Tree and Shrub Auger Bit Minimum Diameter Available | 18 in. |
| Tree and Shrub Auger Bit Maximum Diameter Available | 910 mm |
| Tree and Shrub Auger Bit Maximum Diameter Available | 36 in. |
Hydraulics
| Minimum Hydraulic Flow | 23 L/min |
| Minimum Hydraulic Flow | 6 gpm |
| Maximum Hydraulic Flow | 64 L/min |
| Maximum Hydraulic Flow | 17 gpm |
| Maximum Operating Pressure | 24100 kPa |
| Maximum Operating Pressure | 3500 psi |
Bracket Weights
| Skid Steer Mounting Bracket Weight | 64 kg |
| Skid Steer Mounting Bracket Weight | 140 lb. |
| 17G Compact Excavator Mounting Bracket Weight | 37 kg |
| 17G Compact Excavator Mounting Bracket Weight | 140 lb. |
| 26G-35G Compact Excavator Mounting Bracket Weight | 46 kg |
| 26G-35G Compact Excavator Mounting Bracket Weight | 102 lb. |
Planetary Drive
| Output Shaft Shape | Hexagon |
| Output Shaft Size | 51 mm |
| Output Shaft Size | 2 in. |
| Output Torque | 2320 Nm |
| Output Torque | 1713 lb-ft |
Vehicle Compatibility
| Skid Steer Loader | 318G |
| Compact Track Loader | 317G |
| Compact Excavator | 17G, 26G, 30G |
Auger Drive
| Auger Drive Weight, Without Mounting Bracket | 61 kg |
| Auger Drive Weight, Without Mounting Bracket | 134 lb. |
| Auger Drive Diameter | 250 mm |
| Auger Drive Diameter | 10 in. |
| Auger Drive Length, Without Auger Bit | 720 mm |
| Auger Drive Length, Without Auger Bit | 28 in. |
Output Speed
| 23 L/min (6 gpm) | 38 rpm |
| 30 L/min (8 gpm) | 50 rpm |
| 38 L/min (10 gpm) | 63 rpm |
| 45 L/min (12 gpm) | 78 rpm |
| 57 L/min (15 gpm) | 94 rpm |
