John Deere P45 Heavy-Duty Pallet Fork

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / P45 Heavy-Duty Pallet Fork

Double tap to zoom



Features

Precise Handling Visibility

Clear sightlines to the tine tips help you align quickly with pallet openings, boosting accuracy and preventing damage. Better visibility speeds loading/unloading, improves cycle times, and reduces operator fatigue while working in tight spaces or stacked areas.

Fast, Versatile Adjustments

Adjustable tines and a quick‑attach carrier let you set fork spacing for different pallet sizes and switch attachments quickly. Reduce changeover time between tasks, improve equipment utilization, and keep operations moving with minimal downtime on diverse jobs.

High-Capacity Strength

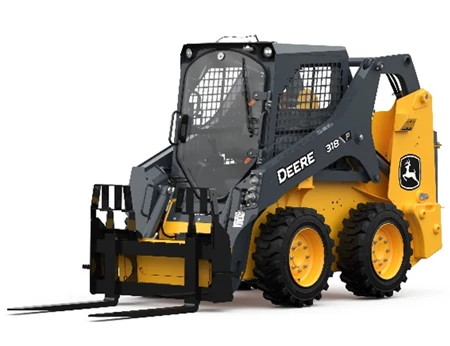

Studio front left view of a 318 P-Tier Skid Steer with attached P45 Pallet Forks

The heavy-duty P45 HD frame is built to handle dense pallets, lumber, bagged material, and jobsite loads with stability. Its robust construction maintains fork rigidity under weight, improving safety, control, and productivity when lifting, transporting, and staging materials.

Specifications

Vehicle Compatibility

Compact Track Loaders317G, 325G, 331G, 333G, 331 P-Tier, 333 P-Tier, 335 P-Tier
Skid Steer Loaders316GR, 318G, 320G, 324G, 330G, 332G, 330 P-Tier, 334 P-Tier

Weight

Overall Weight with Frame and Two Minimum Length Tines181/187 kg
Overall Weight with Frame and Two Minimum Length Tines397/412 lb.
Overall Weight with Frame and Two Maximum Length Tines189/198 kg
Overall Weight with Frame and Two Maximum Length Tines416/435 lb.

Fork Tines

Fork Suspension ClassITA Class II
Minimum Fork Tine Length1065 mm
Minimum Fork Tine Length42 in.
Maximum Fork Tine Length1220 mm
Maximum Fork Tine Length48 in.
Fork Tine Pair Load Rating4000/5500/6200 lb.
Fork Tine Pair Load Rating1814/2495/2812 kg
Fork Thickness36/40/45 mm
Fork Thickness1.4/1.6/1.8 in.
Fork Spacing102 mm
Fork Spacing4 in.

Frame

Frame Width1410 mm
Frame Width55 in.
Frame Height990 mm
Frame Height39 in.
Overall Length with Frame and Two Minimum Length Tines1310 mm
Overall Length with Frame and Two Minimum Length Tines52 in.
Overall Length with Frame and Two Maximum Length Tines1470 mm
Overall Length with Frame and Two Maximum Length Tines58 in.
