John Deere MP72B Multi-Purpose Bucket

Double tap to zoom



Features

Durability With Heavy-Duty Design

Front left studio view of a black MP series multi-purpose bucket resting on the ground in front of attached track loader

Tough high-carbon cutting edges, wear-resistant 1055 high-carbon steel at key wear points, and precision cylinders with easy-to-service hardened rods. To further increase durability and performance, buckets are predrilled to accommodate optional bolt-on replaceable cutting edges, toothbars, side cutters, and spill guards.

Optional Bolt-On Cutting Edges

Computer-generated graphic of a gray multi-purpose bucket with color-coded bolt-on cutting edges and three lettered boxes connected to the illustration with red lines

The bucket is equipped with bolt-on cutting edges for improved protection and loading capability. This feature also safeguards the side plate and corner welds, contributing to a longer service life.

Increased Efficiency and Capacity

Front left studio view of a 331G compact track loader with MP84B multi-purpose bucket in open position

This bucket can bulldoze, scrape, load, meter, and clamp materials, excelling in diverse operations. It boasts improved capacity and a low-profile design offering excellent visibility to the cutting edge, enhancing operator efficiency. New clamp technology allows for smoother operation.

Specifications

Cutting Edge

Cutting Edge Material1055 high-carbon steel
Front Half (Front)25.4 x 152 mm
Front Half (Front)1 x 6 in.
Front Half (Rear)19 x 152 mm
Front Half (Rear)0.75 x 6 in.

Hydraulic Cylinders

Bore Diameter64 mm
Bore Diameter2.5 in.
Rod Diameter32 mm
Rod Diameter1.3 in.
Stroke191 mm
Stroke7.5 in.
Maximum Operating Pressure20684.3 kPa
Maximum Operating Pressure3000 psi

Dimensions

Weight408 kg
Weight900 lb.
Width1854 mm
Width73 in.
Height703 mm
Height27.7 in.
Length Overall951 mm
Length Overall37.5 in.
Back Blade Length293 mm
Back Blade Length11.5 in.
Clam Length660 mm
Clam Length26 in.
Clam Opening884 mm
Clam Opening34.8 in.
Heaped Capacity0.6 m³
Heaped Capacity20 cu ft

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5-in.) quick-connect couplers
Compact Track Loader317G, 325G

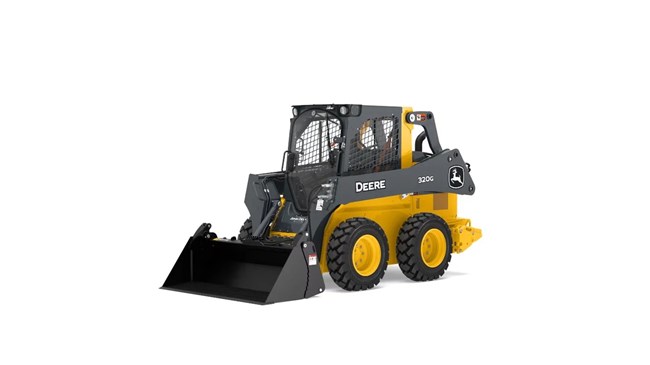

Skid Steer Loader318G, 320G, 324G, 330G
