John Deere MP66B Multi-Purpose Bucket

Double tap to zoom



Features

Optional Bolt-On Cutting Edges

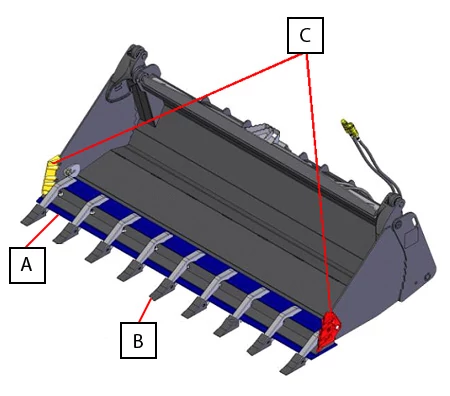

Computer-generated graphic of a gray multi-purpose bucket with color-coded bolt-on cutting edges and three lettered boxes connected to the illustration with red lines

The bucket is equipped with bolt-on cutting edges for improved protection and loading capability. This feature also safeguards the side plate and corner welds, contributing to a longer service life.

Durability With Heavy-Duty Design

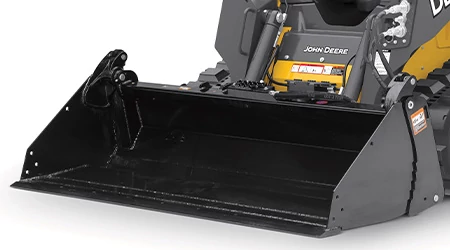

Front left studio view of a black MP series multi-purpose bucket resting on the ground in front of attached track loader

Tough high-carbon cutting edges, wear-resistant 1055 high-carbon steel at key wear points, and precision cylinders with easy-to-service hardened rods. To further increase durability and performance, buckets are predrilled to accommodate optional bolt-on replaceable cutting edges, toothbars, side cutters, and spill guards.

Increased Efficiency and Capacity

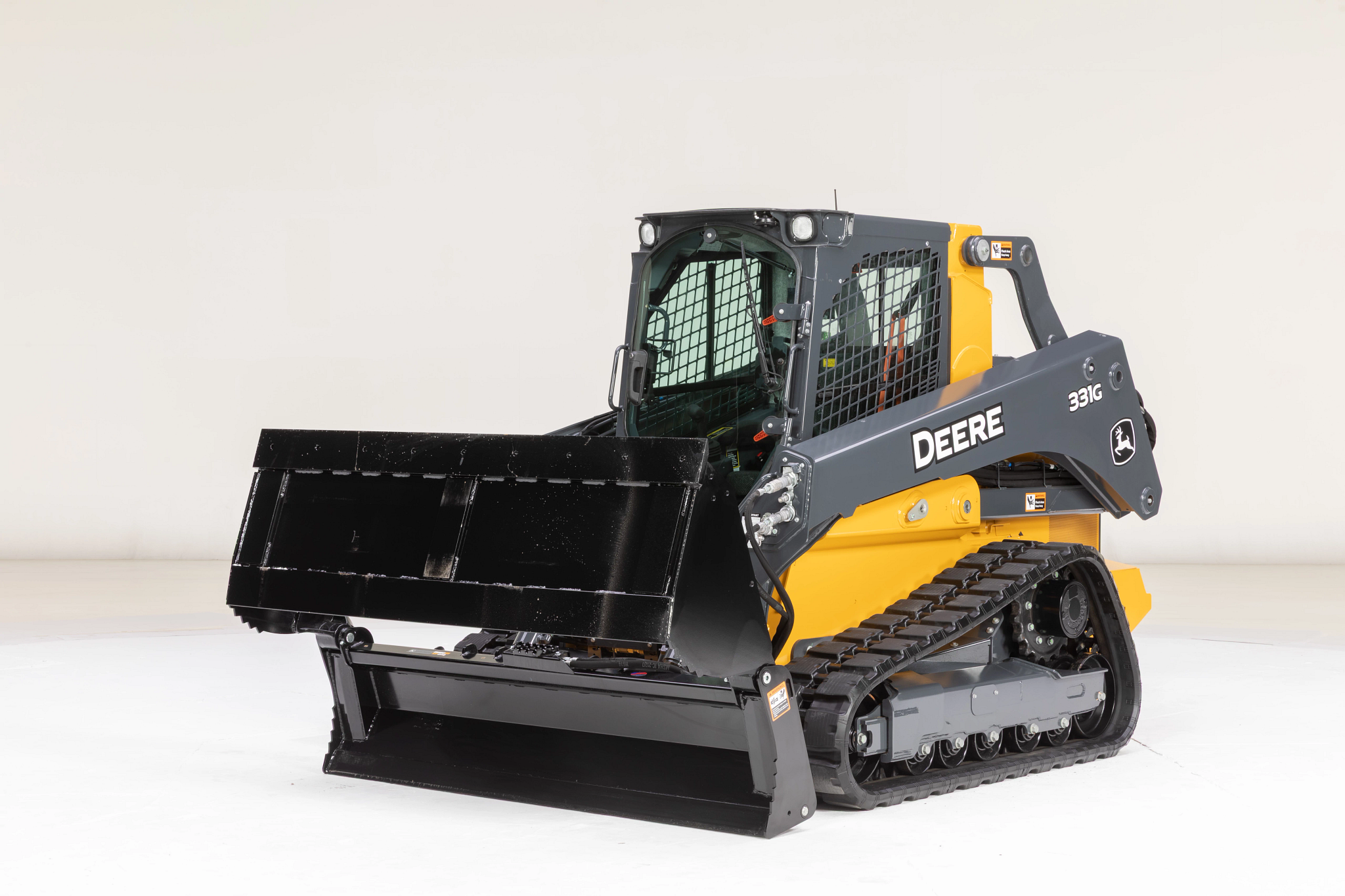

Front left studio view of a 331G compact track loader with MP84B multi-purpose bucket in open position

This bucket can bulldoze, scrape, load, meter, and clamp materials, excelling in diverse operations. It boasts improved capacity and a low-profile design offering excellent visibility to the cutting edge, enhancing operator efficiency. New clamp technology allows for smoother operation.

Specifications

Cutting Edge

Cutting Edge Material1055 high-carbon steel
Front Half (Front)25.4 x 152 mm
Front Half (Front)1 x 6 in.
Front Half (Rear)19 x 152 mm
Front Half (Rear)0.75 x 6 in.

Hydraulic Cylinders

Bore Diameter51 mm
Bore Diameter2 in.
Rod Diameter28 mm
Rod Diameter1.1 in.
Stroke191 mm
Stroke7.5 in.
Maximum Operating Pressure15513.2 kPa
Maximum Operating Pressure2250 psi

Dimensions

Weight281 kg
Weight620 lb.
Width1701 mm
Width67 in.
Height694 mm
Height27.3 in.
Length Overall876 mm
Length Overall34.5 in.
Back Blade Length314 mm
Back Blade Length12.4 in.
Clam Length586 mm
Clam Length23 in.
Clam Opening880 mm
Clam Opening34.6 in.
Heaped Capacity0.5 m³
Heaped Capacity15.8 cu ft

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5-in.) quick-connect couplers
Compact Track Loader317G
Skid Steer Loader316GR, 318G, 320G, 324G
