John Deere MK76 Mulching Head

Double tap to zoom



Features

Tackle Stubborn Vegetation With Powerful Performance

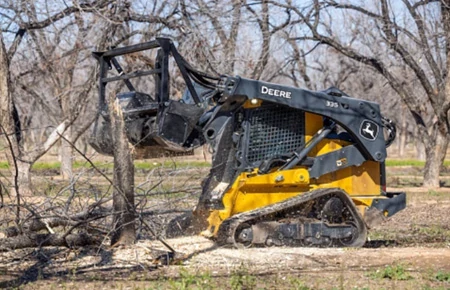

Side left view of a MK76 Mulching Head on a 335 P-Tier compact track loader mulching a standing tree trunk in a park

The MK76 Mulching Head quickly spools up to mulch vegetation up to 8-in. (20.3-cm) thick, producing uniform chips in one pass with its depth control rotor and knife-shear bar system. It cuts efficiently in both forward and reverse, eliminating the need for repeat passes.

Make Quick Work With an Efficient Mulching System

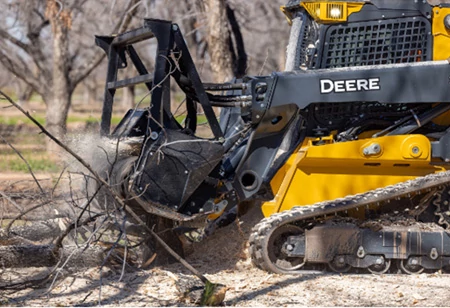

Close-up of an MK76 Mulching Head decimating a tree stump on the front of a 335 P-Tier compact track loader

The compact, visibility-optimized MK76 broadcasts mulched debris forward from the cutting chamber, reducing rework and enabling operators to clear material faster and more efficiently.

Keep Working With a Durable Build and Replaceable Components

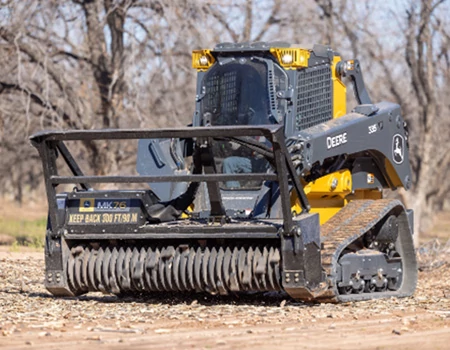

Keep Working with a Durable Build and Replaceable Components

The MK76 tackles heavy-duty mulching with a rugged steel build, replaceable cutting components, and an adjustable push bar that feeds material efficiently into the cutting chamber for consistent, high-performance vegetation management.

Specifications

Hydraulics

Hydraulics TypeHigh Flow
Minimum Flow114 L/min
Minimum Flow30 gpm
Maximum Flow170 L/min
Maximum Flow45 gpm
Maximum Operating Pressure41000 kPa
Maximum Operating Pressure6000 psi

Mulching Head

Overall Width2310 mm
Overall Width91 in.
Cutting Width1930 mm
Cutting Width76 in.
Height1518 mm
Height60 in.
Length736 mm
Length29 in.
Weight1350 kg
Weight2980 lb.

Cutting Tools

Cutting Tool Type, StandardDouble-edged knife tool
Number of Cutting Tools with Depth Control Rotor (DCR)30

Vehicle Compatibility

Hydraulic Connection19.05-mm (0.75-in.) quick connect couplers with 9.525-mm (0.375 in.) case drain coupler
Compact Track Loaders333 P-Tier, 335 P-Tier
Skid Steer Loaders334 P-Tier
