John Deere MH60D Mulching Head

Double tap to zoom



Features

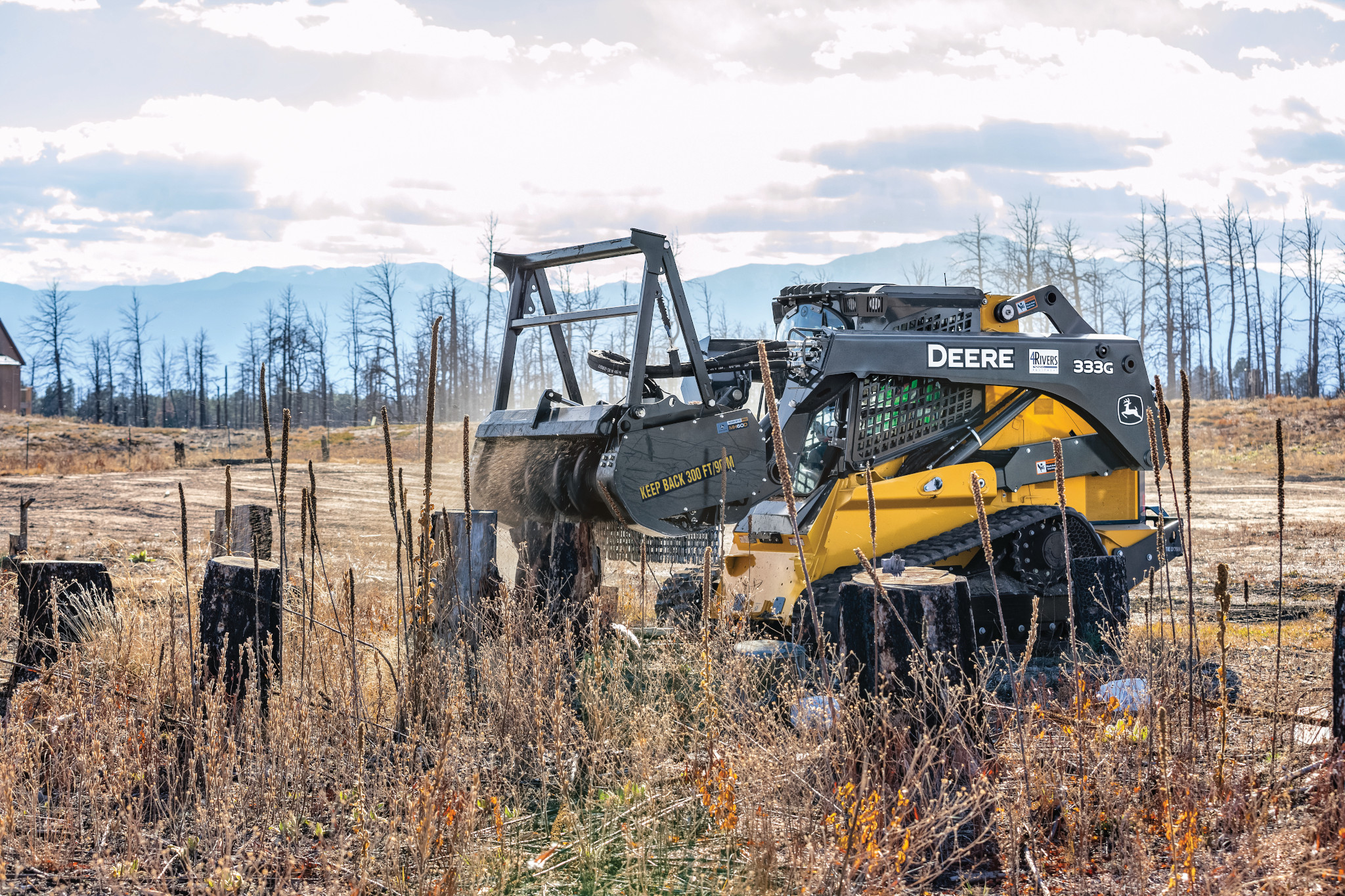

Designed for Durability and Flexibility

Designed for Durability and Flexibility

These mulching heads, built for John Deere and compatible loaders, feature a durable steel frame, efficient mulching chamber, and smooth rotor design that reduces drag and power use. An adjustable push bar and sealed rotor bearings enhance versatility and long-term performance.

Efficient Mulching Capabilities

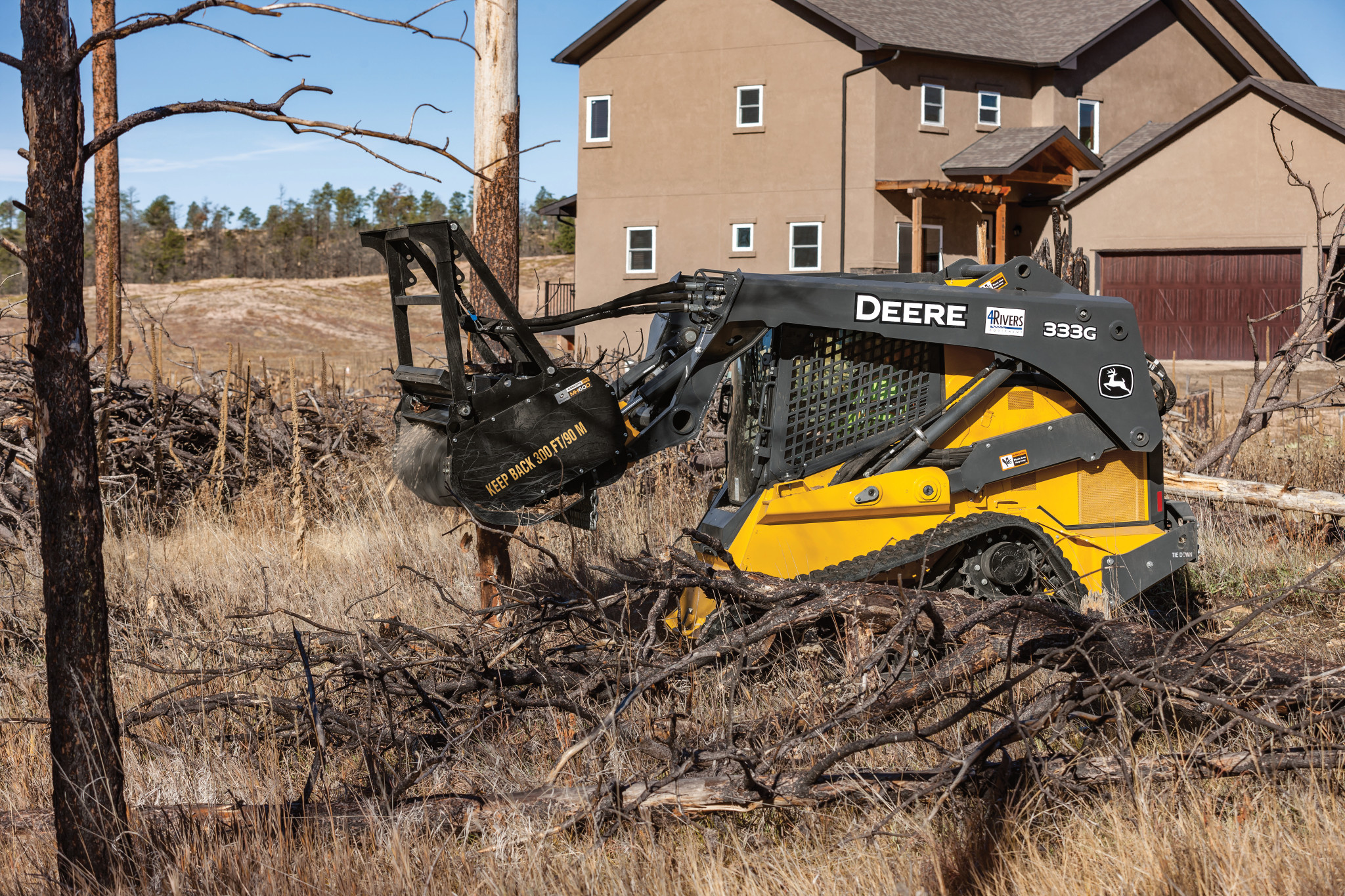

Skid steer loader using a front-mounted mulching head to grind branches in a dry, brushy area in front of a house

Equipped with a two-speed hydraulic system and 36 double-carbide-tipped teeth, the mulching head efficiently processes up to 8-in. (20.3-cm) trees and 12-in. (30.5-cm) stumps. Its redesigned chamber optimizes material flow and reduces wear, delivering high-quality mulch quickly and effectively.

Prominent Pressure Gauge

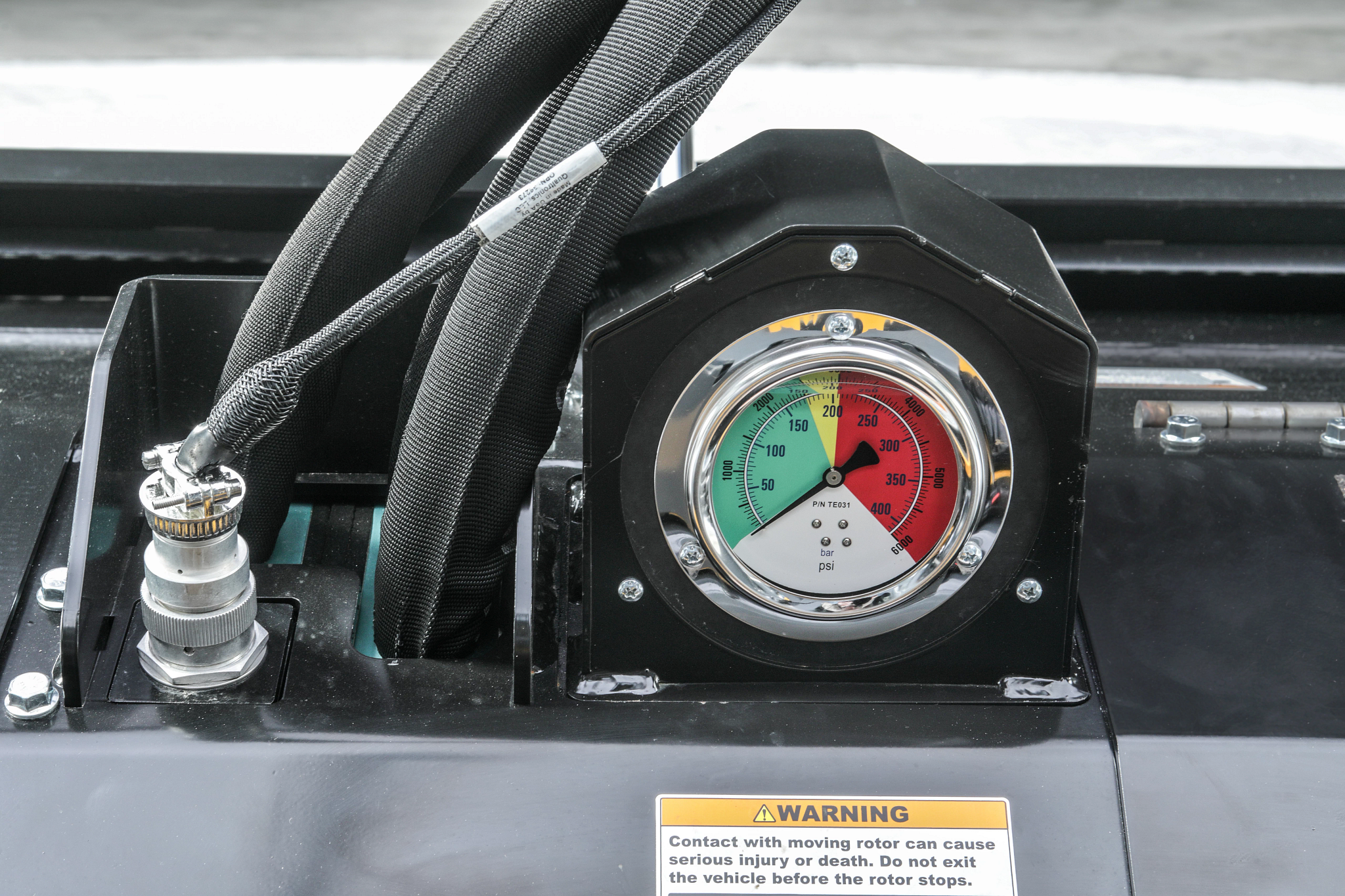

Close-up of hydraulic pressure gauge mounted, showing color-coded pressure ranges in green, yellow, and red, with braided hoses and a warning label visible on the metal housing.

Prominently positioned pressure gauge that is visible from the cab lets operators easily monitor hydraulic operating pressure for optimized performance.

Specifications

Hydraulics

Minimum Flow91 L/min
Minimum Flow24 gpm
Maximum Flow170 L/min
Maximum Flow45 gpm
Maximum Operating Pressure28000 kPa
Maximum Operating Pressure4000 psi

Mulching Head

Overall Width1880 mm
Overall Width74 in.
Cutting Width1520 mm
Cutting Width60 in.
Height1430 mm
Height56 in.
Length1390 mm
Length55 in.
Weight1240 kg
Weight2730 lb.

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quick-connect couplers with 9.525-mm (0.375 in.) case-drain coupler
Compact Track Loaders331G, 333G
Skid Steer Loaders330G, 332G

Cutting Tools

Cutting Tool Type, StandardDouble-carbide tipped tool
Cutting Tool Type, OptionalKnife tool
Number of Cutting Tools with Smooth Rotor30
