John Deere HH20C Hydraulic Hammer
Double tap to zoom
HH20C Hydraulic Hammer
Construction Attachments
Overview:

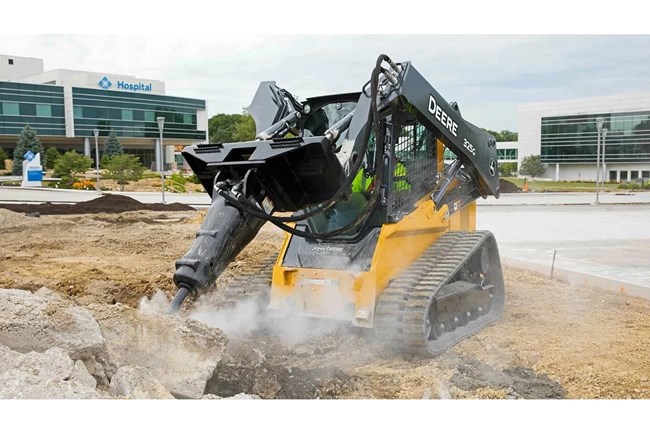

The HH20C Hydraulic Hammer from John Deere offers powerful performance with its streamlined design and efficient operation, delivering up to three times more blows per minute than previous models, and its compatibility with compact excavators and skid steers ensures flexibility and versatility for various construction applications.
- Fastest Hydraulic Hammers on the Market
- High Speed With Constant Blow Energy
- Simplified, Quiet Design
- Easy Operation on Smaller Machines
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Right Tool for the Job
Multiple bit options provide specialized functions, so you can match the tool to material and application for better productivity.
Lower Noise, Easier Service
30% fewer parts, no tie rods, and membrane accumulator reduce noise/vibration and maintenance; one-piece bushings and simple tool retention speed service.
Fast, Efficient Breaking
C-series hydraulic hammers deliver 2–3x more blows per minute than prior models, with constant blow energy for strong performance on smaller skid steers/CTLs and compact excavators.
Specifications
Impact
| Impact Rate (Blows Per Minute) | 800-3000 |
| Impact Energy Class | 475 J |
| Impact Energy Class | 350 footPound |
| Noise Level | 188 dBA |
Dimensions
| Hammer Weight | 122 kg |
| Hammer Weight | 270 lb. |
| Weight with Compact Excavator Mount | 188 kg |
| Weight with Compact Excavator Mount | 415 lb. |
| Tool Diameter | 48.01 mm |
| Tool Diameter | 1.89 in. |
Vehicle Compatibility
| Mounting Bracket Requirements | 1002 (17G) or, 9801 1003 (26G and 35G), or 9802 (50G and 60G) required; all older mounting brackets will not interchange. |
| Front Protection Screen Requirements | AT337084 BYT10076 (17G canopy), AT451135 (26G–60G cab), or AT435404 (26G–50G canopy) required |
| Compact Excavators | 17G, 26G, 30G, 35G |
Hydraulics
| Hydraulic Flow | 25-55 L/min |
| Hydraulic Flow | 6.6-14.5 gpm |
| Operating Pressure | 9-15 MPa |
| Operating Pressure | 1305-2175 psi |
| Pressure Relief | 22 MPa |
| Pressure Relief | 3190 psi |
