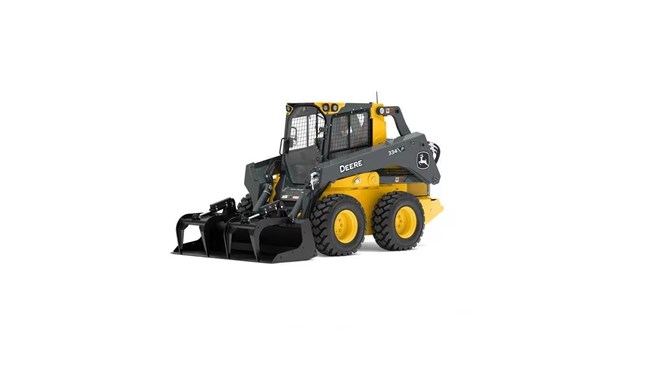

John Deere GS84B Scrap Grapple

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / GS84B Scrap Grapple

Double tap to zoom



Features

Independent-Action Grapples

Front left view of a wheel loader using a GS scrap grapple to move cubes of scrap metal

The GS Series Scrap Grapple features two independent-action grapples, making it easy to handle different-sized objects simultaneously. This capability enhances efficiency in handling materials of varying shapes and sizes, ideal for operations in scrap yards or construction sites.

Convenient Pre-Drilled Cutting Edges

Yellow and black John Deere 317G compact track loader with rubber tracks, lifting and dumping a bucket of dirt and gravel onto a construction site surface, with a grassy field and trees in the background under a clear sky.

This model is equipped with pre-drilled holes on its cutting edges to accommodate optional bolt-on, replaceable edges. This feature provides flexibility in maintaining sharp edges for optimal performance and durability, minimizing downtime.

Improved Design

Front studio view of a black GS series scrap grapple

Integrated design improvements include better hose routing and low-profile cylinder guards to prevent interference and simplify maintenance, ensuring efficient operation.

Specifications

Dimensions

Weight537.6 kg
Weight1185 lb.
Bucket Width2133.6 mm
Bucket Width84 in.
Grapple Arm Width619.8 mm
Grapple Arm Width24.4 in.
Grapple Width1658.6 mm
Grapple Width65.3 in.
Bucket Depth Length838.2 mm
Bucket Depth Length33 in.
Grapple Closed Length1033.8 mm
Grapple Closed Length40.7 in.
Grapple Opened Length1059.2 mm
Grapple Opened Length41.7 in.
Grapple Closed Height828 mm
Grapple Closed Height32.6 in.
Grapple Opened Height1168.4 mm
Grapple Opened Height46 in.
Grapple Opening (Tine Tip)950 mm
Grapple Opening (Tine Tip)37.4 in.
Grapple Opening (Grapple Closed)459.7 mm
Grapple Opening (Grapple Closed)18.1 in.
Grapple Opening (Grapple Opened)1035.05 mm
Grapple Opening (Grapple Opened)40.75 in.
Pivot Pin Diameter34.9 mm
Pivot Pin Diameter1.375 in.

Vehicle Compatibility

Hydraulic Connection12.7-mm (0.5 in.) quickconnect couplers
Compact Track Loaders325G, 331G, 333G
Compact Wheel Loaders204L, 244L, 304L, 324L
Skid Steer Loaders320G, 324G, 330G, 332G

Hydraulics

Cylinder Bore Diameter63.5 mm
Cylinder Bore Diameter2.5 in.
Cylinder Rod Diameter35.6 mm
Cylinder Rod Diameter1.4 in.
Cylinder Stroke205.7 mm
Cylinder Stroke8.1 in.
Maximum Operating Pressure24131.7 kPa
Maximum Operating Pressure3500 psi

Options

Bolt-On Side PlatesYes
