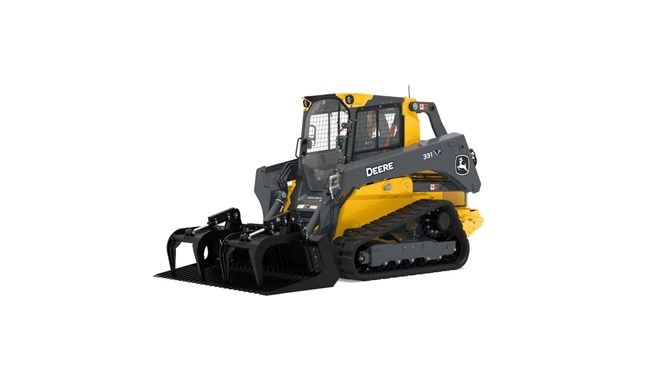

John Deere GR84B Rock Grapple
Double tap to zoom
GR84B Rock Grapple
Construction Attachments
Overview:
The GR84B Rock/Brush Grapple is a robust and versatile attachment designed to efficiently handle and transport heavy materials like rocks and brush, enhancing productivity and reducing manual labor for operators on job sites.
- Land Clearing
- Brush Removal Applications
- Jobsite Clean-Up
- Independent-Action Grapples
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Increased Capacity and Improved Design
The rock grapple features 3-in. (7.6-cm) spaced tines supported on both sides for maximum bend resistance and a serrated cutting edge for penetrating tough ground. Its heavy-duty build includes a solid backplate, thickened components, and wide independent-action grapple arms to handle large, uneven loads efficiently.
Two Independent-Action Grapples
Each unit includes two independent-action grapples that allow for optimal clamping action when grappling objects with non-uniform sizes such as root balls, large rocks, or demolition debris.
Heavy-Duty Construction for Demanding Applications
Featuring thickened side cutters, side sheets, and backplates, the GR Series Rock Grapple provides unparalleled durability. The increased cylinder size supports high grapple forces, while weld-in serrated edges enhance ground penetration capabilities.
Specifications
Dimensions
| Weight | 569.7 kg |
| Weight | 1255 lb. |
| Bucket Width | 2133.6 mm |
| Bucket Width | 84 in. |
| Grapple Arm Width | 619.8 mm |
| Grapple Arm Width | 24.4 in. |
| Grapple Width | 1658.6 mm |
| Grapple Width | 65.3 in. |
| Bucket Depth Length | 970.3 mm |
| Bucket Depth Length | 38.2 in. |
| Grapple Closed Length | 1033.8 mm |
| Grapple Closed Length | 40.7 in. |
| Grapple Opened Length | 1059.2 mm |
| Grapple Opened Length | 41.7 in. |
| Grapple Closed Height | 828 mm |
| Grapple Closed Height | 32.6 in. |
| Grapple Opened Height | 1168.4 mm |
| Grapple Opened Height | 46 in. |
| Grapple Opening (Tine Tip) | 950 mm |
| Grapple Opening (Tine Tip) | 37.4 in. |
| Grapple Opening (Grapple Closed) | 459.7 mm |
| Grapple Opening (Grapple Closed) | 18.1 in. |
| Grapple Opening (Grapple Opened) | 1035.05 mm |
| Grapple Opening (Grapple Opened) | 40.75 in. |
| Pivot Pin Diameter | 34.9 mm |
| Pivot Pin Diameter | 1.375 in. |
Vehicle Compatibility
| Hydraulic Connection | 12.7-mm (0.5-in.) quick-connect couplers |
| Compact Track Loaders | 325G, 331G, 333G |
| Compact Wheel Loaders | 204L, 244L, 304L, 324L |
| Skid Steer Loaders | 330G, 332G |
Hydraulics
| Cylinder Bore Diameter | 63.5 mm |
| Cylinder Bore Diameter | 2.5 in. |
| Cylinder Rod Diameter | 35.6 mm |
| Cylinder Rod Diameter | 1.4 in. |
| Cylinder Stroke | 205.7 mm |
| Cylinder Stroke | 8.1 in. |
| Maximum Operating Pressure | 24131.7 kPa |
| Maximum Operating Pressure | 3500 psi |
