John Deere DB84 Dozer Blade

Double tap to zoom



Features

Heavy-Duty Design for Increased Durability

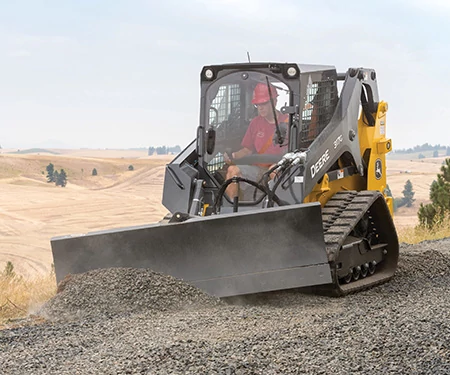

Tracked skid steer loader with a wide front blade pushing a pile of gravel on a sloped landscape, operated from an enclosed cab.

This dozer blade is built with a robust and rugged design, helping to enhance durability and efficiency in various tasks like stripping clay and finish grading. It features a Quik-Tatch™ mounted blade that includes a reversible cutting edge and skid shoes to enhance its lifespan and reliability.

Hydraulically Angled Blade for Better Material Placement

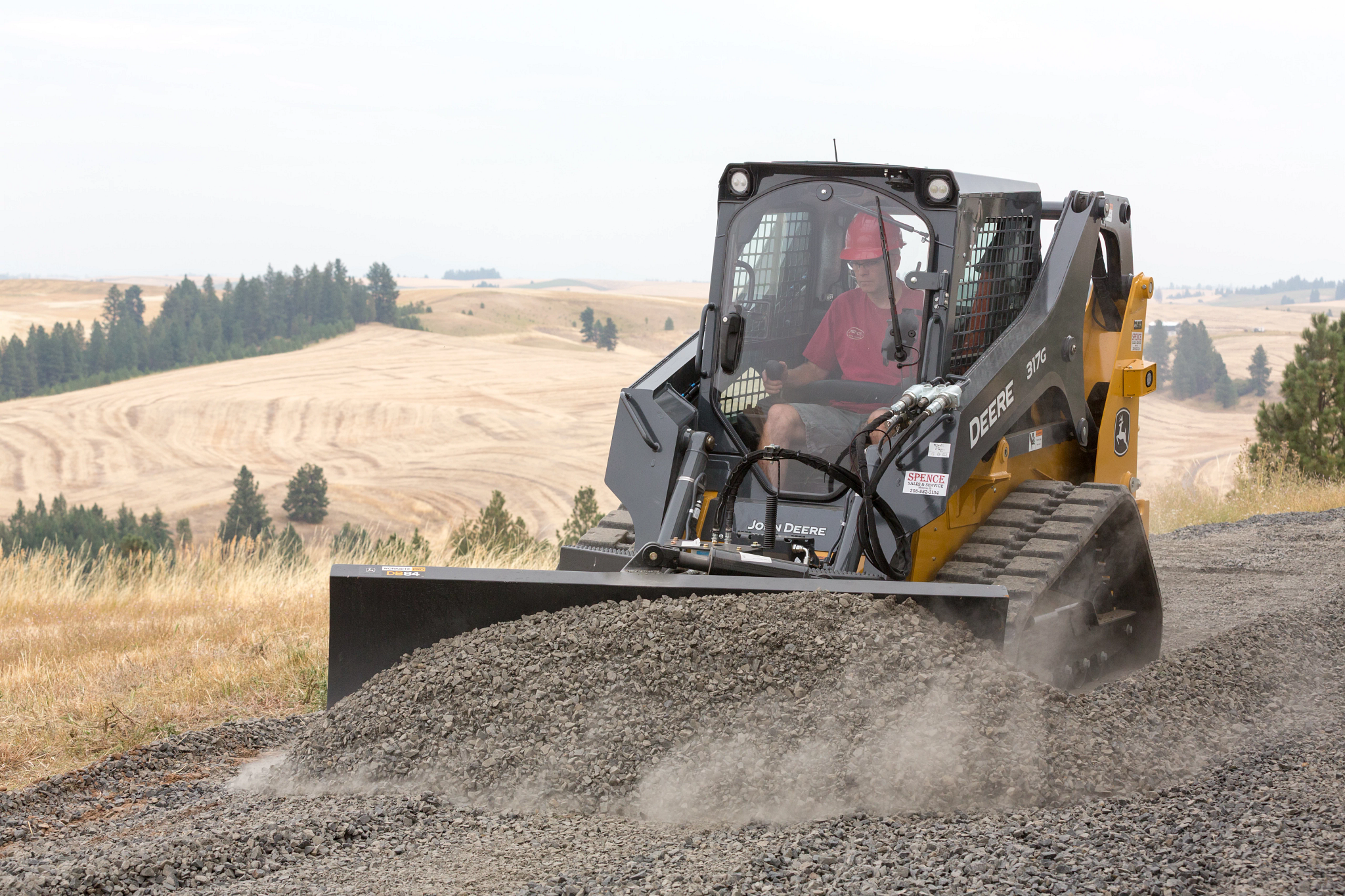

Tracked skid steer loader with a wide front blade pushing a pile of gravel on a sloped landscape, operated from an enclosed cab.

The blade can be hydraulically angled 30 degrees right or left for precise material placement. With the power-angle-tilt feature, operators can make on-the-go blade adjustments, designed to enhance versatility and productivity in handling materials with ease.

Rugged Design Delivers Maximum Uptime

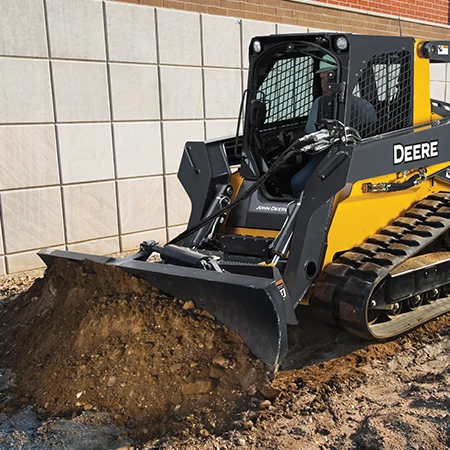

Front left view of a dozer blade pushing dirt on the front of  a compact track loader

There’s nothing light duty about these dozer blades. Their rugged design is meant to maximize uptime for a wide variety of tasks, from stripping clay to finish grading.

Specifications

Vehicle Compatibility

Electrical Connection Requirements3 pin
Hydraulic Connection Required Quick-Connect Coupler Diameter12.7 mm
Hydraulic Connection Required Quick-Connect Coupler Diameter0.5 in.
Compact Track Loader317G, 325G
Skid Steer Loader318G, 320G, 324G

Weight

Weight703 kg
Weight1550 lb.

Width

Overall Width2133.6 mm
Overall Width84 in.
Blade Width (Full Angle)1882.14 mm
Blade Width (Full Angle)74.1 in.

Height

Height610 mm
Height24 in.

Operation

Cutting Edge (Reversible)15.8 x 152.4 mm
Cutting Edge (Reversible)0.625 x 6 in.
Degree of Angle Right or Left30 degree (angle)
Degree of Tilt Up or Down10 degree (angle)
Adjustable Skid ShoeStandard

Length

Length800 mm
Length31.5 in.
