John Deere CP40G Cold Planer

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / CP40G Cold Planer

Double tap to zoom



Features

Wirtgen Cutting Technology

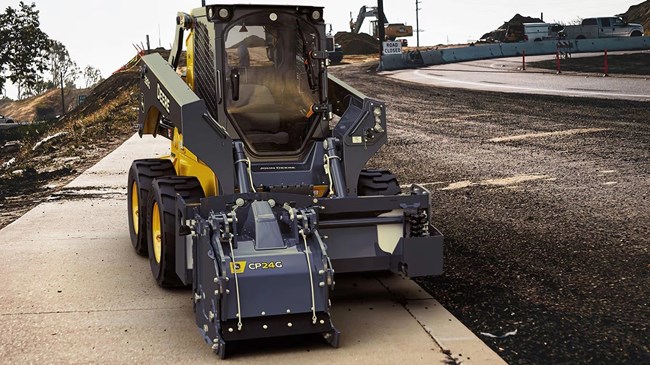

Front left view of a CP24G Cold Planer on the front of a loader working along a curbside

John Deere cold planer attachments leverage Wirtgen Cutting Technology to deliver high-quality surfaces and seamless matches with adjacent lanes. This collaboration ensures the cold planer is equipped with components and designs from larger Wirtgen mills, enhancing performance and reliability.

Easy to View Cold Planer Parameter Tools

Close-up of the gauge and parameter tools on a cold planer, three yellow rulers installed atop it

Key performance indicators on the cold planer are strategically positioned for clear visibility from the cab, enhancing operational efficiency. A pressure gauge offers real-time power consumption feedback to prevent stalling and serves as a training aid for new operators.

Reduce Manual Labor With Compact Yet Robust Design

Front close-up of a cold planer against a low curb utilizing 2-in. zero edge measurement

A compact design reduces manual labor by enabling precise milling next to curbs and guardrails. Wear-resistant, pivoting side plates follow the ground's profile and are replaceable after wear. An automated front spillage guard minimizes cleanup by preventing asphalt spillage during operation.

Specifications

Cold Planer

Weight1360 kg
Weight3000 lb.
Length1243 mm
Length48.9 in.
Width1822 mm
Width71.7 in.
Height888 mm
Height35 in.
Planing Width1015 mm
Planing Width40 in.
Planing Depth0-180 mm
Planing Depth0-7 in.
Tilt Degree8 degree (angle)
Side Shift (Right/Left) +/-495 mm
Side Shift (Right/Left) +/-19.5 in.
Number of Carbide Cutting Teeth78

Hydraulic Connection

High Flow Type19.05-mm (0.75-in.) quick-connect couplers with 9.525-mm (0.375-in.) case-drain coupler

Hydraulics

Flow Range95-168 L/min
Flow Range25-44 gpm
Maximum Operating Pressure27600 kPa
Maximum Operating Pressure4000 psi
Hydraulic Power58 kW
Hydraulic Power43.3 hp

Vehicle Compatibility

Compact Track Loader333 P-Tier, 335 P-Tier
Skid Steer Loader334 P-Tier

Electrical Connection

Electrical Connection Type14-pin Deutsch
