John Deere BV9 Snow/Utility V-Blade

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / BV9 Snow/Utility V-Blade

Double tap to zoom



Features

Adapt to Varying Conditions With a Selection of Blades

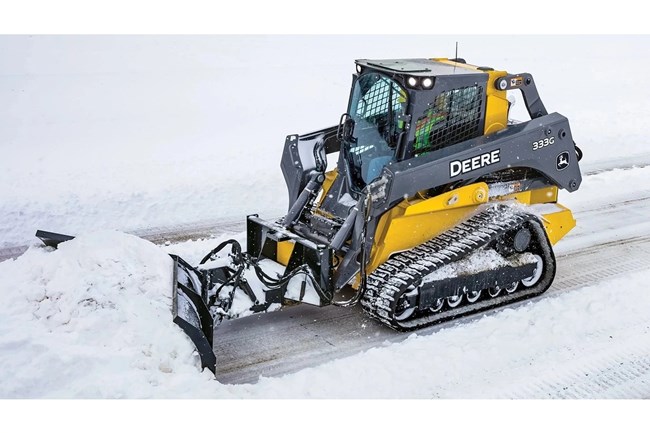

Front right view of a 333G Compact Track Loader pushing snow along a road with a BV9 V Blade attachment

Adapt easily to different surfaces with standard steel V-Blades or optional rubber blades, both available through Parts.

Versatile Hydraulically-Angled Blade

Side left view of a 333G Compact Track Loader pushing snow from a road with a BV9 V Blade attachment

The in-cab controlled blade adjusts hydraulically into straight, angled, scoop, or V positions to optimize snow cutting and stacking.

Protect the Vehicle From Sudden Impacts

Studio close-up of a snow V-Blade's spring loaded trip mechanism

The V-blade comes with spring loaded trip mechanism for protection when hitting hidden objects while plowing.

Specifications

Weight

Operational Weight500 kg
Operational Weight1102 lb.

Width

Straight Width2794 mm
Straight Width110 in.
V-Configuration Width2438.4 mm
V-Configuration Width96 in.
Width at 30-Degree Angle2413 mm
Width at 30-Degree Angle95 in.
Scoop Width2413 mm
Scoop Width95 in.

Vehicle Compatibility

Compact Track Loader317G, 325G, 331G, 333G
Compact Wheel Loader (Requires Skid Steer Style Quik-Tatch™ Coupler for Operation)204L, 244L, 304L, 324L
Skid Steer Loader318G, 320G, 324G, 330G, 332G

Height

Height711 mm
Height28 in.

Operation

Degree of Oscillation±10 degree (angle)
