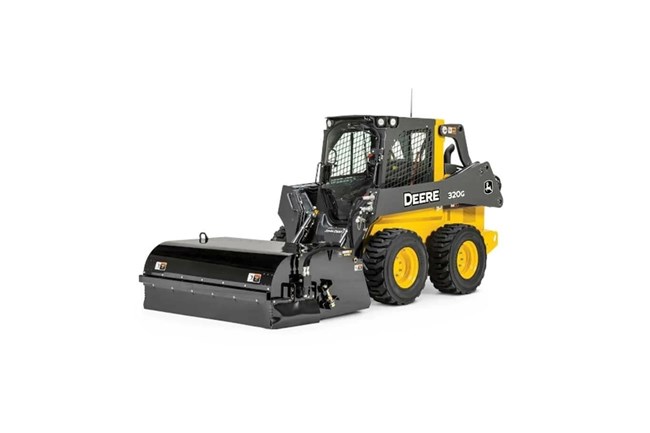

John Deere BR72C Rigid Pick-Up Broom
Double tap to zoom
BR72C Rigid Pick-Up Broom
Construction Attachments
Overview:
The BR72C Rigid Pick-Up Broom effectively cleans construction sites and streets, featuring a front bumper for added strength and protection and easy bristle replacement without tools, reducing downtime.
- Adjustable Baffle Increases Hopper Capacity by 22 Percent
- 26-in. Diameter Brush With Standard 50/50 Poly-Wire Segments
- Efficient Debris Collection
- Front Bumper Protection
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
No Tools Required for Bristle Replacement

Brush-core removal for bristle replacement is quick and easy, with no tools required. Motor and bearing separate from the brush core without having to disconnect any hydraulic hoses, eliminating the risk of oil spills or contamination.
Ideal for Many Applications

John Deere BP and BR model brooms are ideal for light- to heavy-duty construction clean-up, street clean-up, and a variety of ag applications. Pick-up style brooms are designed to remove and carry debris for later disposal.
Less Dumping With Increased Hopper Capacity

Adjustable baffle on BP and BR models increases hopper capacity by 22 percent for greater sweeping impact in each pass. With increased hopper capacity, dumping is required less often.
Specifications
Broom
| Overall Length | 1550 mm |
| Overall Length | 61 in. |
| Overall Width | 2060 mm |
| Overall Width | 81 in. |
| Sweeping Width | 1830 mm |
| Sweeping Width | 72 in. |
| Overall Height | 790 mm |
| Overall Height | 31 in. |
| Weight | 440 kg |
| Weight | 970 lb. |
| Hopper Capacity | 0.5 m³ |
| Hopper Capacity | 17 cu ft |
| Bolt-On Cutting Edge, Standard | Double bevel, 15.9 x 152 mm (0.625 x 6 in.) |
Options
| Gutter Brush Diameter | 510 mm |
| Gutter Brush Diameter | 20 in. |
| Gutter Brush Mounting Location | Right/left |
| Gutter Brush Bristle Material, Standard | All wire bristles |
| Gutter Brush Bristle Material, Optional | All polypropylene bristles |
| Broom-Mounted Water Tank Capacity | 95 L |
| Broom-Mounted Water Tank Capacity | 25 gal. |
| Broom-Mounted Water Tank Pump Flow | 7.9 L/min |
| Broom-Mounted Water Tank Pump Flow | 2.1 gpm |
| Roof-Mounted Water Tank Capacity | 114 L |
| Roof-Mounted Water Tank Capacity | 30 gal. |
| Roof-Mounted Water Tank Pump Flow | 6.8 L/min |
| Roof-Mounted Water Tank Pump Flow | 1.8 gpm |
Brush
| Brush Diameter | 660 mm |
| Brush Diameter | 26 in. |
| Core Diameter | 200 mm |
| Core Diameter | 8 in. |
| Numbers of Wafers | 41 |
| Brush Segments, Standard | 50/50 poly and wire mix |
| Brush Segments, Optional | All polypropylene bristles |
Hydraulics
| Minimum Hydraulic Flow | 57 L/min |
| Minimum Hydraulic Flow | 15 gpm |
| Maximum Hydraulic Flow | 95 L/min |
| Maximum Hydraulic Flow | 25 gpm |
| Motor Pressure Relief Setting | 17000 kPa |
| Motor Pressure Relief Setting | 2500 psi |
Vehicle Compatibility
| Electrical Connection | None |
| Hydraulic Connection | 1/2 in. quick connect couplers |
| Compact Track Loader | 317G, 325G |
| Compact Wheel Loader (Requires Skid Steer Style Quick Coupler for Operation) | 204L, 304L |
| Skid Steer Loader | 312GR, 314G, 316GR, 318G, 320G, 324G, 330G, 332G |
