John Deere BR60C Rigid Pick-Up Broom

Double tap to zoom



Features

No Tools Required for Bristle Replacement

A front-end loader with a brom attachment sweeping a dusty surface outside an industrial building, with other construction equipment parked in the background under a blue sky

Brush-core removal for bristle replacement is quick and easy, with no tools required. Motor and bearing separate from the brush core without having to disconnect any hydraulic hoses, eliminating the risk of oil spills or contamination.

Ideal for Many Applications

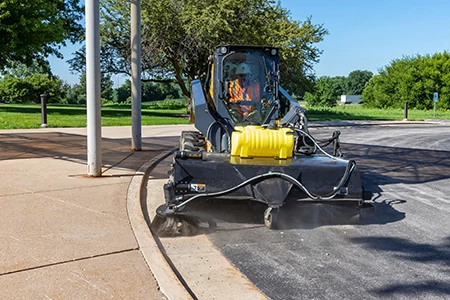

Front view of a BP84C pick-up broom with optional roof-mounted water tank cleaning the street along a curb on the front of a skid steer

John Deere BP and BR model brooms are ideal for light- to heavy-duty construction clean-up, street clean-up, and a variety of ag applications. Pick-up style brooms are designed to remove and carry debris for later disposal.

Less Dumping With Increased Hopper Capacity

Side‑view schematic showing material moving through a machine housing toward a rotating brush

Adjustable baffle on BP and BR models increases hopper capacity by 22 percent for greater sweeping impact in each pass. With increased hopper capacity, dumping is required less often.

Specifications

Broom

Overall Length1550 mm
Overall Length61 in.
Overall Width1760 mm
Overall Width69 in.
Sweeping Width1520 mm
Sweeping Width60 in.
Overall Height790 mm
Overall Height31 in.
Weight400 kg
Weight880 lb.
Hopper Capacity0.4 m³
Hopper Capacity14 cu ft

Brush

Brush Diameter660 mm
Brush Diameter26 in.
Core Diameter200 mm
Core Diameter8 in.
Numbers of Wafers33

Options

Broom-Mounted Water Tank Capacity95 L
Broom-Mounted Water Tank Capacity25 gal.
Broom-Mounted Water Tank Pump Flow7.9 L/min
Broom-Mounted Water Tank Pump Flow2.1 gpm
Roof-Mounted Water Tank Capacity118 L
Roof-Mounted Water Tank Capacity30 gal.
Roof-Mounted Water Tank Pump Flow6.8 L/min
Roof-Mounted Water Tank Pump Flow1.8 gpm

Hydraulics

Minimum Hydraulic Flow57 L/min
Minimum Hydraulic Flow15 gpm
Maximum Hydraulic Flow95 L/min
Maximum Hydraulic Flow25 gpm
Motor Pressure Relief Setting17000 kPa
Motor Pressure Relief Setting2500 psi

Vehicle Compatibility

Compact Track Loader317G, 325G, 331G, 331 P-Tier, 333G, 333 P-Tier
Skid Steer Loader316GR, 318G, 320G, 324G, 330G, 330 P-Tier
