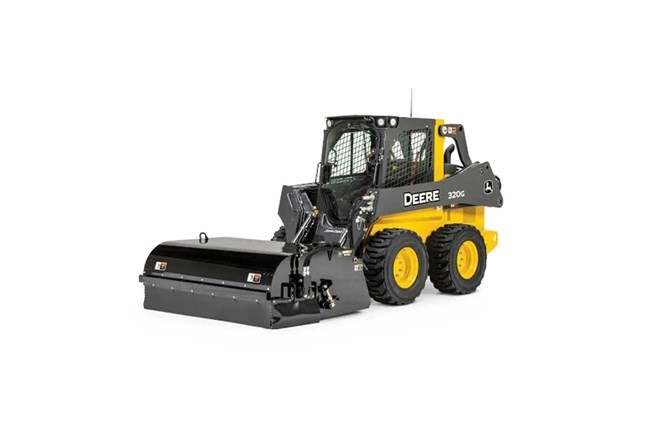

John Deere BP84C Pick-Up Broom
Double tap to zoom
BP84C Pick-Up Broom
Construction Attachments
Overview:
The BP84C Pick-Up Broom offers efficient debris removal with a large hopper and easy bristle replacement, ideal for versatile construction and ag use.
- Adjustable Baffle Increases Hopper Capacity by 22 Percent
- 26-in. Diameter Brush with Standard 50/50 Poly-Wire Segments
- Hydraulic-Integrated Design
- Efficient Debris Management
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Bristle Replacement is Quick and Easy, with No Tools Required

Brush-core removal is tool-free and spill-safe, with a 32-in. (3-cm) diameter brush using 50/50 poly-wire segments and optional full poly kits for all sizes.
Ideal for a Variety of Applications

John Deere BP and BR model brooms are suited for light to heavy-duty construction, street cleanup, and various agricultural tasks. BP models feature a front caster wheel for better ground contour tracking, while BR models include a front bumper for added durability near walls and obstacles.
Increased Hopper Capacity

Adjustable baffle on BP models increases hopper capacity by 22 percent, for greater sweeping impact in each pass. With increased hopper capacity requires dumping less often.
Specifications
Broom
| Overall Length | 1830 mm |
| Overall Length | 72 in. |
| Overall Width | 2620 mm |
| Overall Width | 103 in. |
| Sweeping Width | 2130 mm |
| Sweeping Width | 84 in. |
| Overall Height | 670 mm |
| Overall Height | 27 in. |
| Weight | 640 kg |
| Weight | 1400 lb. |
| Hopper Capacity | 0.6 m³ |
| Hopper Capacity | 21 cu ft |
| Bolt-On Cutting Edge, Standard | Single bevel, 12.7 x 102 mm (0.5 x 4 in.) |
Options
| Gutter Brush Diameter | 510 mm |
| Gutter Brush Diameter | 20 in. |
| Gutter Brush Mounting Location | Right/left |
| Gutter Brush Bristle Material, Standard | All wire bristles |
| Gutter Brush Bristle Material, Optional | All polypropylene bristles |
| Broom-Mounted Water Tank Capacity | 95 L |
| Broom-Mounted Water Tank Capacity | 25 gal. |
| Broom-Mounted Water Tank Pump Flow | 7.9 L/min |
| Broom-Mounted Water Tank Pump Flow | 2.1 gpm |
| Roof-Mounted Water Tank Capacity | 114 L |
| Roof-Mounted Water Tank Capacity | 30 gal. |
| Roof-Mounted Water Tank Pump Flow | 6.8 L/min |
| Roof-Mounted Water Tank Pump Flow | 1.8 gpm |
Brush
| Brush Diameter | 660 mm |
| Brush Diameter | 26 in. |
| Core Diameter | 200 mm |
| Core Diameter | 8 in. |
| Numbers of Wafers | 49 |
| Brush Segments, Standard | 50/50 poly and wire mix |
| Brush Segments, Optional | All polypropylene bristles |
Hydraulics
| Minimum Hydraulic Flow | 57 L/min |
| Minimum Hydraulic Flow | 15 gpm |
| Maximum Hydraulic Flow | 95 L/min |
| Maximum Hydraulic Flow | 25 gpm |
| Motor Pressure Relief Setting | 17000 kPa |
| Motor Pressure Relief Setting | 2500 psi |
Vehicle Compatibility
| Electrical Connection | None |
| Hydraulic Connection | 1/2 in. quick connect couplers |
| Compact Track Loader | 317G, 325G, 331G, 333G |
| Skid Steer Loader | 312GR, 314G, 316GR, 318G, 320G, 324G, 330G, 332G |
