John Deere BP72C Pick-Up Broom

Double tap to zoom



Features

Bristle Replacement is Quick and Easy, with No Tools Required

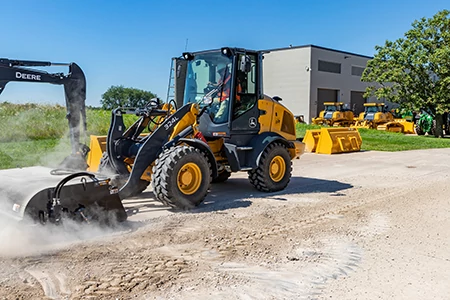

A front-end loader with a brom attachment sweeping a dusty surface outside an industrial building, with other construction equipment parked in the background under a blue sky

Brush-core removal is tool-free and spill-safe, with a 32-in. (3-cm) diameter brush using 50/50 poly-wire segments and optional full poly kits for all sizes.

Ideal for a Variety of Applications

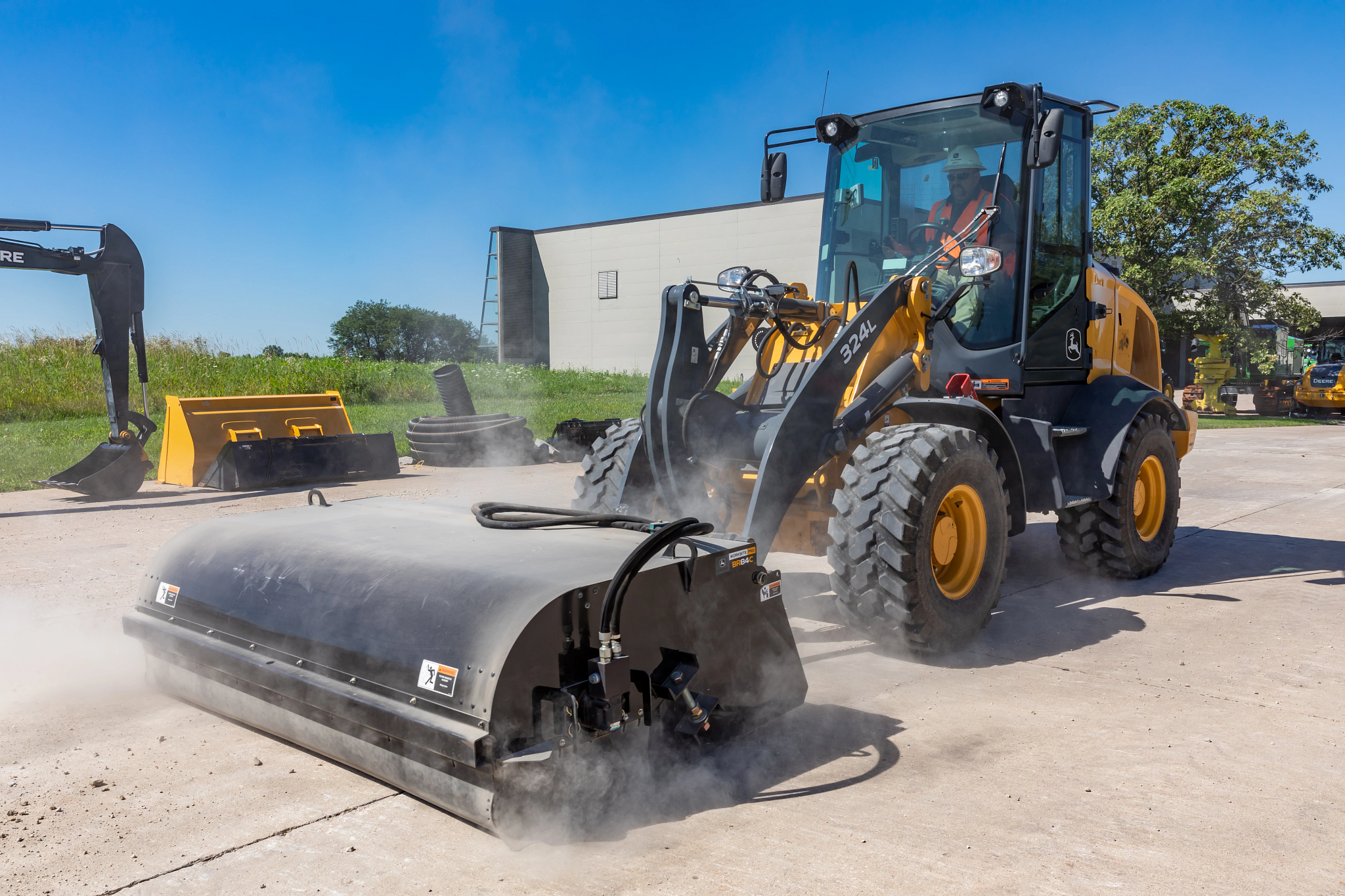

Yellow 324L compact wheel loader operating a front-mounted rotary broom, sweeping dust and debris.

John Deere BP and BR model brooms are suited for light to heavy-duty construction, street cleanup, and various agricultural tasks. BP models feature a front caster wheel for better ground contour tracking, while BR models include a front bumper for added durability near walls and obstacles.

Increased Hopper Capacity

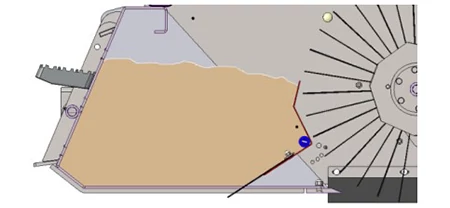

Side‑view schematic showing material moving through a machine housing toward a rotating brush

Adjustable baffle on BP models increases hopper capacity by 22 percent, for greater sweeping impact in each pass. With increased hopper capacity requires dumping less often.

Specifications

Broom

Overall Length1830 mm
Overall Length72 in.
Overall Width2310 mm
Overall Width91 in.
Sweeping Width Straight1830 mm
Sweeping Width Straight72 in.
Overall Height670 mm
Overall Height27 in.
Weight580 kg
Weight1275 lb.
Hopper Capacity0.51 m³
Hopper Capacity18 cu ft
Bolt-On Cutting Edge, StandardSingle bevel, 12.7x102 mm (0.5x4 in.)

Options

Gutter Brush Diameter510 mm
Gutter Brush Diameter20 in.
Gutter Brush Mounting LocationRight/left
Gutter Brush Bristle Material, StandardAll wire bristles
Gutter Brush Bristle Material, OptionalAll polypropylene bristles
Broom-Mounted Water Tank Capacity95 L
Broom-Mounted Water Tank Capacity25 gal.
Broom-Mounted Water Tank Pump Flow7.9 L/min
Broom-Mounted Water Tank Pump Flow2.1 gpm
Roof-Mounted Water Tank Capacity114 L
Roof-Mounted Water Tank Capacity30 gal.
Roof-Mounted Water Tank Pump Flow6.8 L/min
Roof-Mounted Water Tank Pump Flow1.8 gpm

Brush

Brush Diameter660 mm
Brush Diameter26 in.
Core Diameter200 mm
Core Diameter8 in.
Numbers of Wafers41
Brush Segments, Standard50/50 poly and wire mix
Brush Segments, OptionalAll polypropylene bristles

Hydraulics

Minimum Hydraulic Flow57 L/min
Minimum Hydraulic Flow15 gpm
Maximum Hydraulic Flow95 L/min
Maximum Hydraulic Flow25 gpm
Motor Pressure Relief Setting17000 kPa
Motor Pressure Relief Setting2500 psi

Vehicle Compatibility

Hydraulic Connection1/2 in. quick connect couplers
Compact Track Loader317G, 325G, 331G, 333G
Skid Steer Loader312GR, 314G, 316GR, 318G, 320G, 324G, 330G, 332G
