John Deere BL10B Snow/Utility Blade

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / BL10B Snow/Utility Blade

Double tap to zoom



Features

Take on Uneven Surfaces With Ease by Utilizing Oscillating Blade

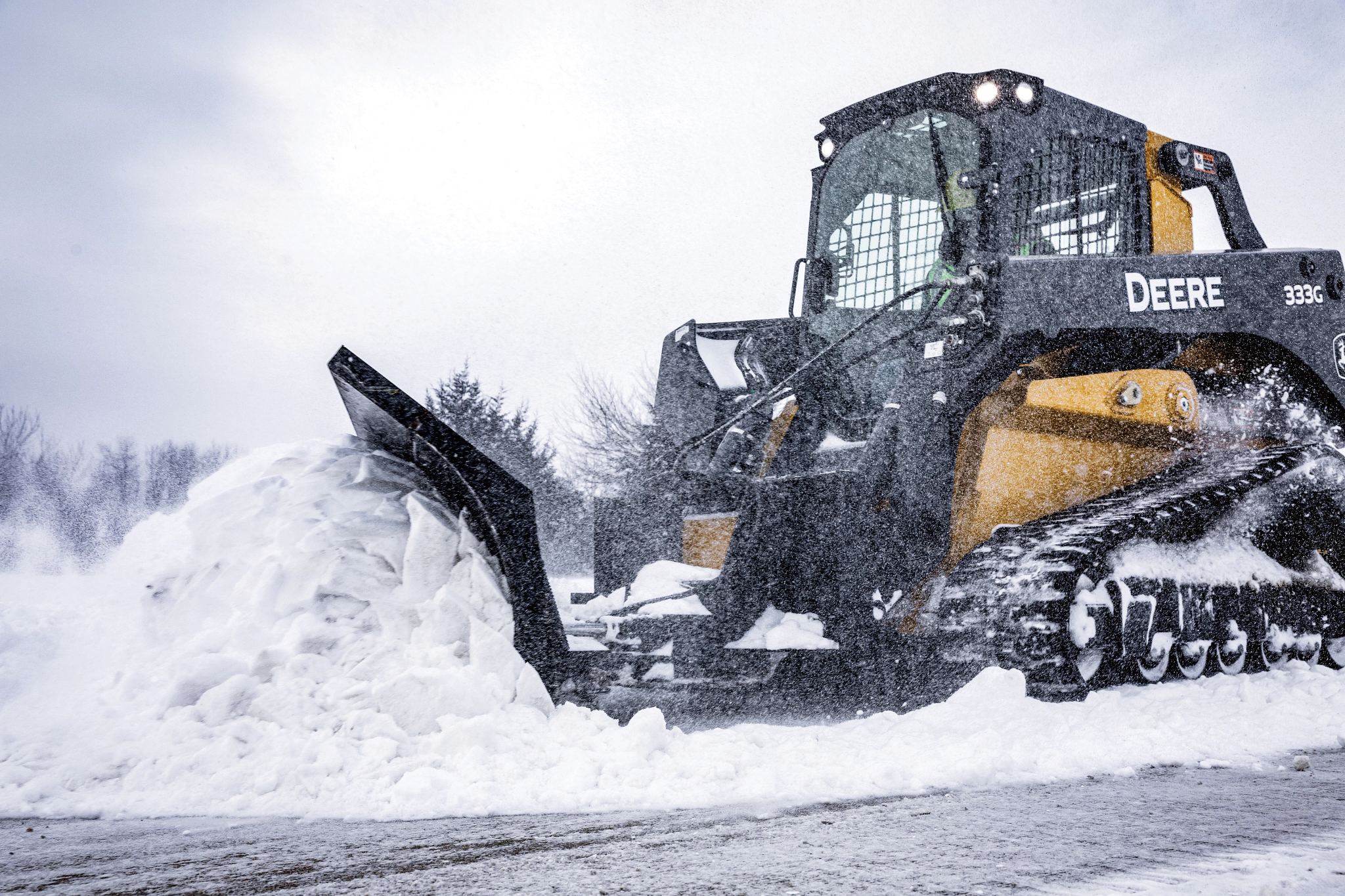

Side view of a tracked John Deere skid steer pushing a large pile of snow with a front-mounted blade on a snowy landscape

Each blade will have the capability of being rigid side to side or float (5 degrees) from side-to-side. The side-to-side float allows for easier operation and allowances for uneven surfaces.

Versatile Hydraulically Angled Blade

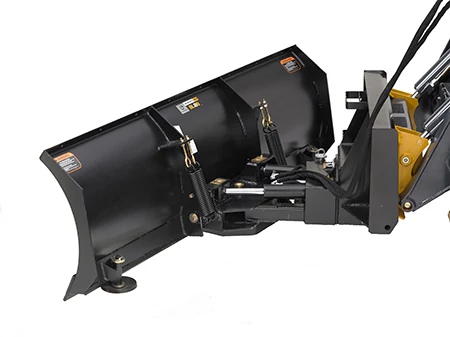

Rear left studio view of a black BL series hydraulically-angled utility/snow blade

Blade angles hydraulically 30 degrees right or left, enabling easy snow placement via in-cab controls.

Protect the Vehicle From Sudden Impacts with Four Trip Springs

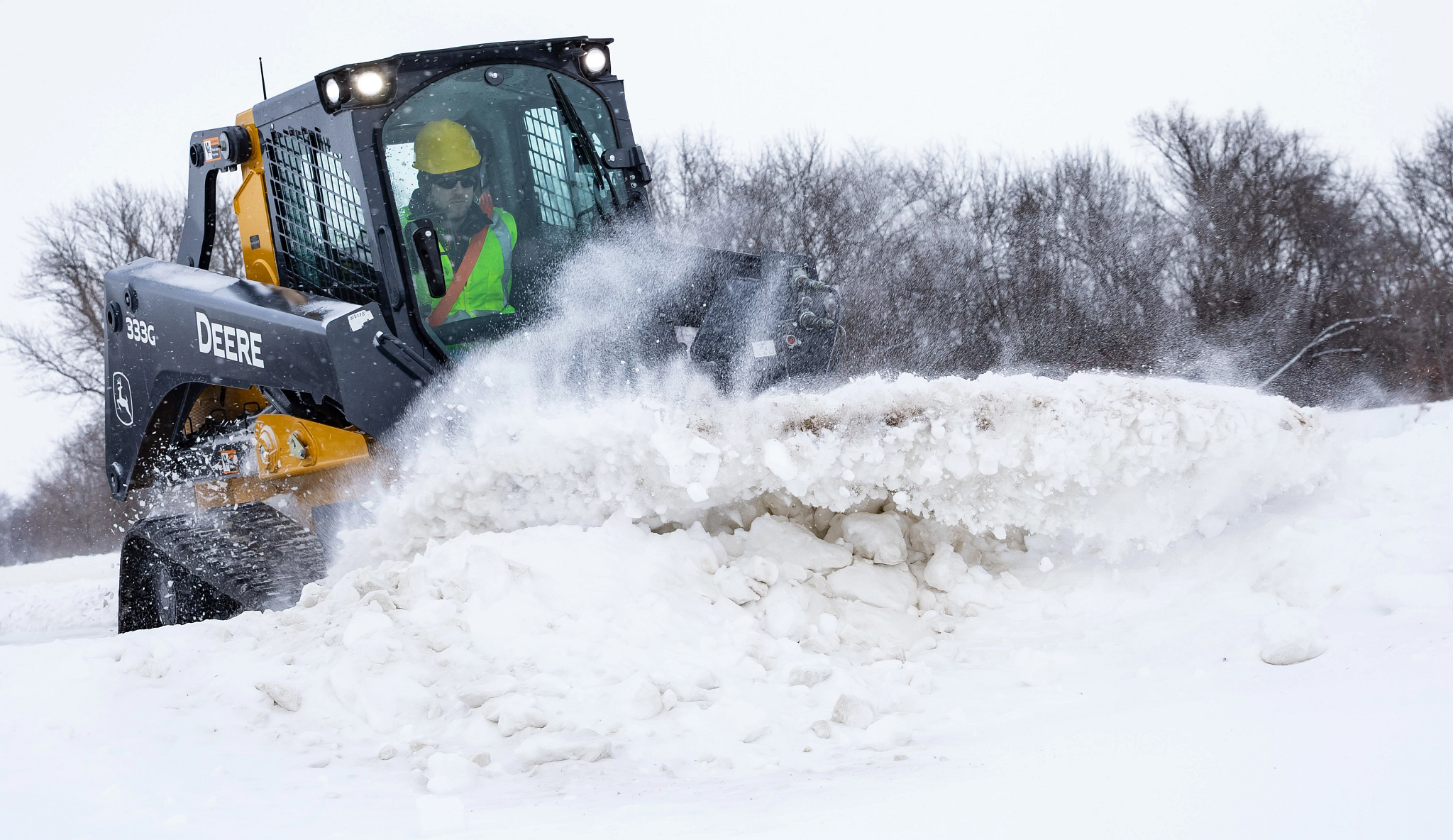

Front right view of a 333G compact track loader pushing a snow bank up with BL9B Snow/Utility Blade

Four trip springs help protect the vehicle from sudden impacts with obstacles when blading snow. Trip springs can be locked out for light grading and dirt work.

Specifications

Vehicle Compatibility

Compact Track Loader325G, 331G, 333G
Compact Wheel Loader (Requires Skid Steer Style Quik-Tatch™ Coupler for Operation)204L, 244L, 304L, 324L
Skid Steer Loader330G, 332G

Width

Width3048 mm
Width120 in.
Angled Width2591 mm
Angled Width102 in.

Weight

Weight540 kg
Weight1190 lb.

Height

Height711 mm
Height28 in.
