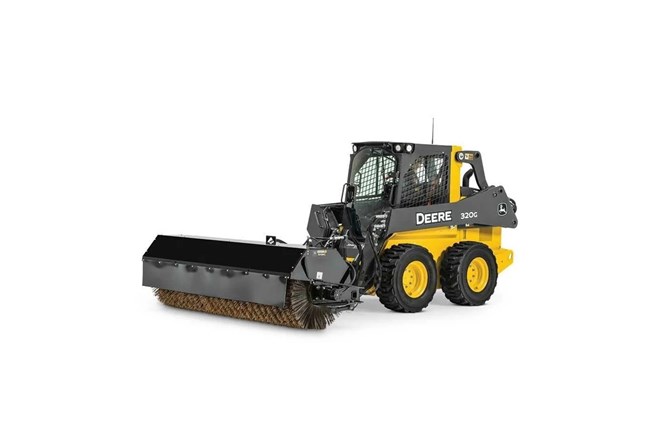

John Deere BA96C Angle Broom

New Products / John Deere / John Deere Products / Construction Equipment / Construction Attachments / BA96C Angle Broom

Double tap to zoom



Features

Bristle Replacement is Quick and Easy

Front left view of a BA96C angle broom brushing a sidewalk with part of the attached skid steer in the background

Brush-core removal for bristle replacement is quick and easy, with no tools required. Motor and bearing separate from the brush core without having to disconnect any hydraulic hoses, eliminating the risk of oil spills or contamination.

Hydraulic-Angling Range of 30 Degrees

Computer-generated graphic of the top of a BA-series angle broom with curved red arrows demonstrating hydraulic-angling range

Standard feature enabling an operator to angle the broom 30 degrees right or left using the machine’s hydraulic system.

Heavy-Duty, High-Torque, Bidirectional Motor

Front view of skid steers and a loader lined up on pavement with BA96C angled broom, BP84C Pick-Up Broom, and BP84C Pick-Up Broom attachments

Heavy-duty, high-torque, bidirectional motor is coupled to the brush core through a 2.5-in. (63.5-mm) hex hub. Motor and bearing are protected within the broom-frame structure.

Specifications

Brush

Brush Diameter810 mm
Brush Diameter32 in.
Core Diameter250 mm
Core Diameter10 in.
Numbers of Wafers47
Brush Segments, Standard50/50 poly and wire mix
Brush Segments, OptionalAll polypropylene bristles

Broom

Overall Length Straight1740 mm
Overall Length Straight69 in.
Overall Length at 30-Degree Angle2180 mm
Overall Length at 30-Degree Angle86 in.
Overall Width Straight2940 mm
Overall Width Straight116 in.
Overall Width at 30-Degree Angle2760 mm
Overall Width at 30-Degree Angle109 in.
Sweeping Angle+/-30 degree (angle)
Sweeping Width Straight2440 mm
Sweeping Width Straight96 in.
Sweeping Width at 30-Degree Angle2110 mm
Sweeping Width at 30-Degree Angle83 in.
Overall Height1010 mm
Overall Height40 in.
Weight460 kg
Weight1010 lb.

Hydraulics

Minimum Hydraulic Flow57 L/min
Minimum Hydraulic Flow15 gpm
Maximum Hydraulic Flow95 L/min
Maximum Hydraulic Flow25 gpm
Motor Pressure Relief Setting17000 kPa
Motor Pressure Relief Setting2500 psi

Vehicle Compatibility

Electrical Connection3-pin Deutsch connector
Hydraulic Connection1/2 in. quick connect couplers
Compact Track Loader331G, 333G
Compact Wheel Loader (Requires Skid Steer Style Quick Coupler for Operation)204L, 244L, 304L, 324L
Skid Steer Loader330G, 332G

Options

Hood Extension Brush Coverage180 degree (angle)
Roof-Mounted Water Tank Capacity114 L
Roof-Mounted Water Tank Capacity30 gal.
Roof-Mounted Water Tank Pump Flow6.8 L/min
Roof-Mounted Water Tank Pump Flow1.8 gpm
