John Deere 12-Inch (320 & 324E)

Double tap to zoom

12-Inch (320 & 324E)

Construction Attachments

Overview:

The 12-Inch Steel Tracks for John Deere skid steer loaders provide enhanced traction and durability, especially in challenging terrains, ensuring optimal performance and reliability for heavy-duty applications.

Compatible With 320, 320D, 320E/G and 324E/G Skid Steer Loaders
Heavy‑Duty Steel Construction
Increased Traction
Reduces Ground Pressure

Get a Quote

Get A Quote

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Send To A Friend

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Share This Product:

Features
Specifications

Features

Operate in a Variety of Conditions

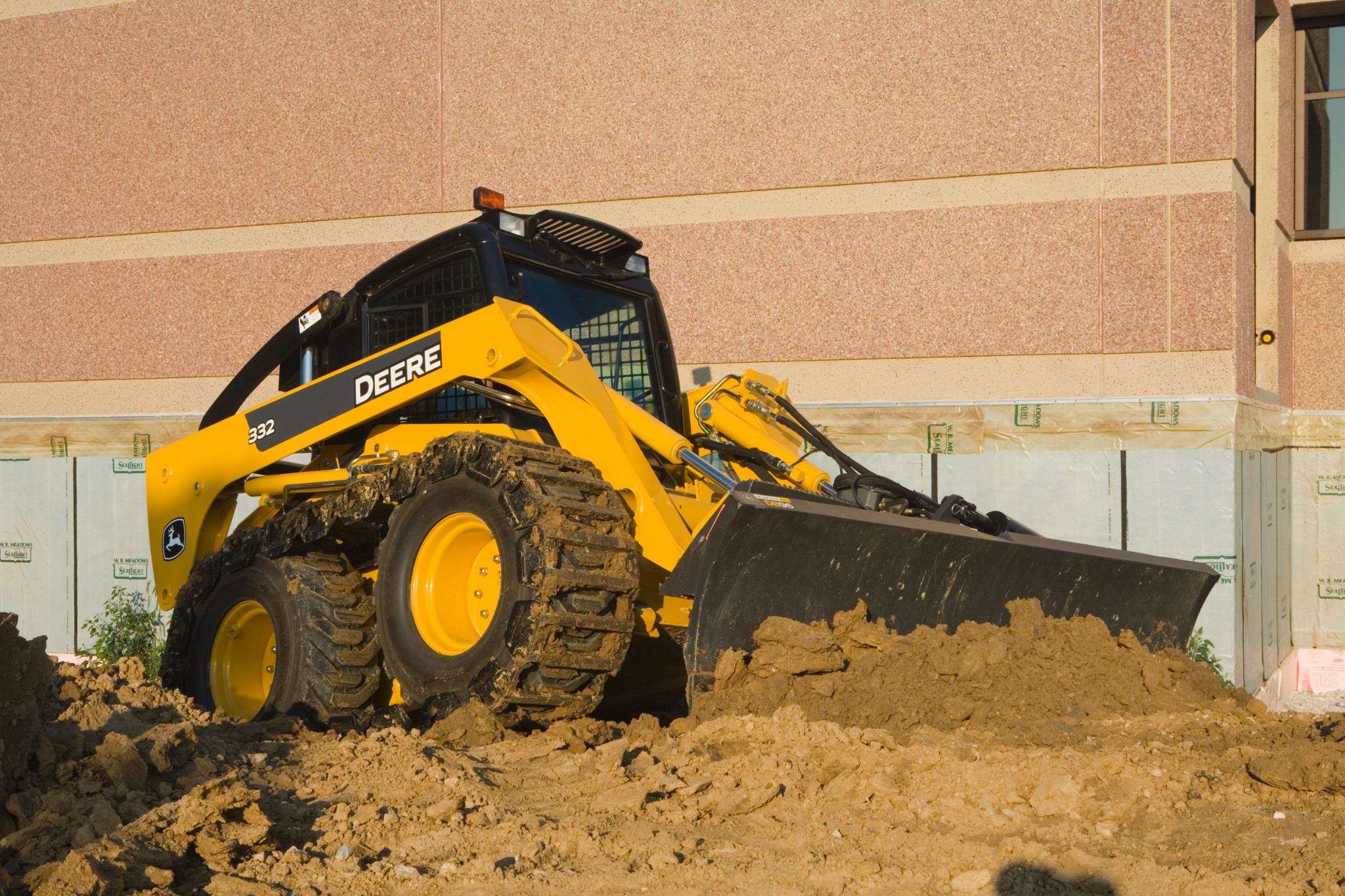

Yellow skid steer loader pushing a large pile of dirt with its front bucket in a construction area beside a tan building

John Deere steel tracks for skid steer loaders reduce ground pressure and add counterbalance weight, improving traction for operating in soft, muddy, loose, or hard conditions.

Durable, Heavy-Duty Design

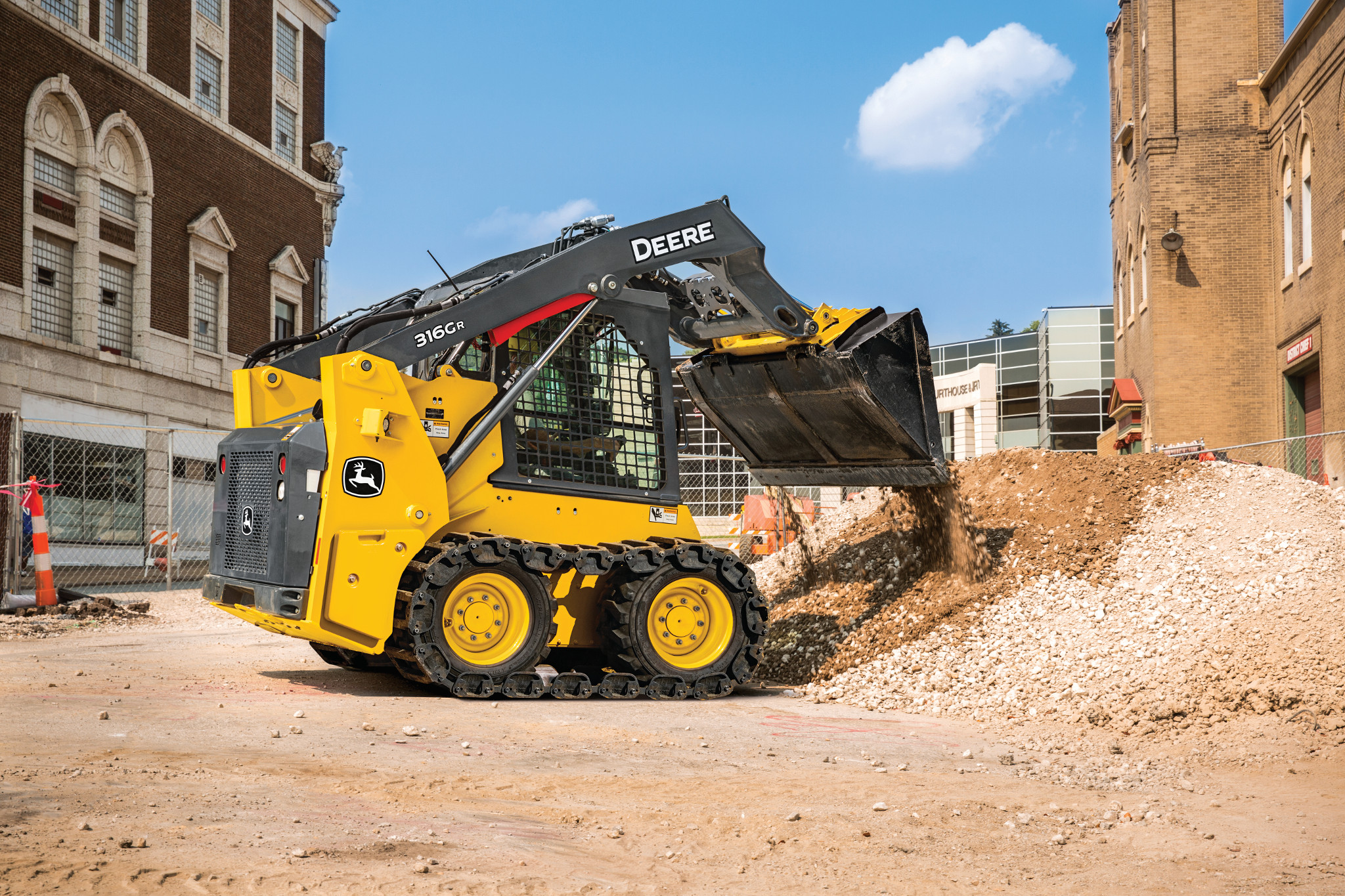

Compact track loader with a front bucket dumping gravel at a construction site between brick buildings, shown on a dirt surface under a blue sky

Tracks enhance durability and ease of maintenance by protecting tires, improving strength with heavy-duty bushings and drilled holes, and featuring open side plates for easy cleaning and adjustment.

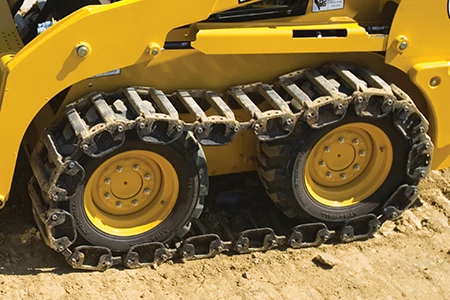

Serviceable Steel Tracks

Track lengths are adjustable for proper tension, and tracks are rebuildable by replacing bushings and bolts.

Specifications

Track Operation

Tire-Guide Area Per Pad	387 cm²
Tire-Guide Area Per Pad	60 sq in.
Binder Provided	Yes
Length Adjustment	Yes
Flotation Area of Tires	3251.6 cm²
Flotation Area of Tires	504 sq in.
Flotation Area with Tracks	7109.6 cm²
Flotation Area with Tracks	1102 sq in.

Diameter	31.7 mm
Diameter	1.25 in.
Wear Length	19 mm
Wear Length	0.75 in.
Wear Surface Area	7.55 cm²
Wear Surface Area	1.17 sq in.
Heat Treated	Yes, 55-60 RC
Installation	Bolted
Field Replaceable	Yes

Link

Thickness	19 mm
Thickness	0.75 in.

Crossbar

Dimension, Two Bars	25 x 32 mm
Dimension, Two Bars	1 x 1.25 in.
Height	33 mm
Height	1.3 in.
Wear Area Per Pad	144.5 cm²
Wear Area Per Pad	22.4 sq in.
Heat Treated	Yes

Pads

Total Number of Pads	36
Weight Per Pad	9.9 kg
Weight Per Pad	22 lb.
Number of Traction Beads Per Pad	2

Tracks

Pitch	254 mm
Pitch	10 in.
Weight	360 kg
Weight	792 lb.

Vehicle Compatibility

Skid Steer Loader

320, 320D, 320E, 324E, 320G, 324G
