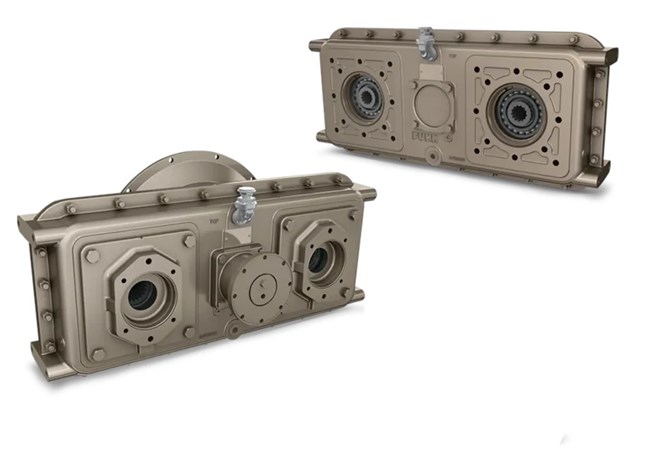

John Deere 56000 Double
Double tap to zoom
56000 Double
Pump Drives
Overview:
John Deere pump drives provide the ultimate in design flexibility.
- 708 kW (950 hp)
- Modular Design
- Built for Quiet Operation
- Dedicated OEM Service
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Perfect Fit
With more than 5,000 pump drive configurations using a variety of gear ratios, hydraulic pump adapters, mounting options, and more — we can configure a pump drive to your design specifications.
Modular Approach
John Deere pump drives are available in four series up to 708 kW (950 hp) and equipped to operate as independent mount, direct-engine mount, or clutch-driven units. Adapters are available in a variety of engine housings and flywheel sizes.
Integration Support
Our application experts can help integrate your entire system from the engine to the pump drives, powershift transmissions, HMD transmissions, planetary drives, and inboard planetary axles.
Specifications
General Pump Drive Data
| Maximum Power | 708 kW |
| Maximum Power | 950 hp |
| Maximum Input Torque | 2712 Nm |
| Maximum Input Torque | 2000 lb-ft |
| Maximum Output Torque | 2712 Nm |
| Maximum Output Torque | 2000 lb-ft |
| Maximum Input/Output Speed | 2500 rpm |
| Type | Double |
| Approximate Dry Weight | 193-272 kg |
| Approximate Dry Weight | 425-600 lb. |
| Pump Rotation | Anti-enginewise (except through shaft-drive, enginewise) |
| Nominal Clutch Size | 292.1, 355.6, 457.2 mm |
| Nominal Clutch Size | 11.5, 14, 18 in. |
| Oil Capacity | 8.52 L |
| Oil Capacity | 9 qt |
| Oil Type | JDM J20C specification; MIL-L-2015C or API classification GL |
| Maximum Input Power | 708 kW |
| Maximum Input Power | 950 hp |
| Maximum Output Power (Per Pump Pad) | 708 kW |
| Maximum Output Power (Per Pump Pad) | 950 hp |
| Gear Centers | 254 mm |
| Gear Centers | 10 in. |
| Flywheel Covers | SAE 0, SAE 1, SAE 2 |
Gear Ratios
| 56000 Double | 0.76:1, 0.875:1, 1:1, 1.14:1, 1.31:1 |
