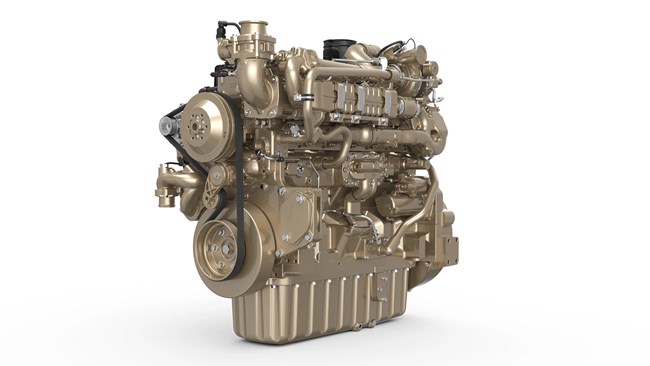

John Deere JD9X IHR

Double tap to zoom

The JD9 expands our 9.0L line-up by increasing power up to 343 kW (460 hp) and peak torque up to 1883 Nm (1389 lb-ft).

The engine’s simplified in-line aftertreatment system reduces connection points and streamlines integration.

The JD9 engine comes equipped with John Deere Connected Support™ remote monitoring and diagnostics.

Number of Cylinders	6
Displacement	9 L
Engine Type	In-line, 4-stroke
Aspiration	Turbocharged, air-to-air aftercooled
Turbo	Series
Aftertreatment Options	DOC/DPF/SCR
Emissions Certifications	EPA Final Tier 4/EU Stage V
Rated Power Minimum	375.5 hp
Rated Power Minimum	280 kW
Rated Power Maximum	460 hp
Rated Power Maximum	343 kW
Rated Speed	2000 rpm
Peak Torque	1392.6 lb-ft
Peak Torque	1883 Nm
Length	51.77 in.
Length	1315 mm
Width	30.04 in.
Width	763 mm
Height	47.01 in.
Height	1194 mm
Weight, Dry	2325.5 lb.
Weight, Dry	1055 kg

JD9X IHR
