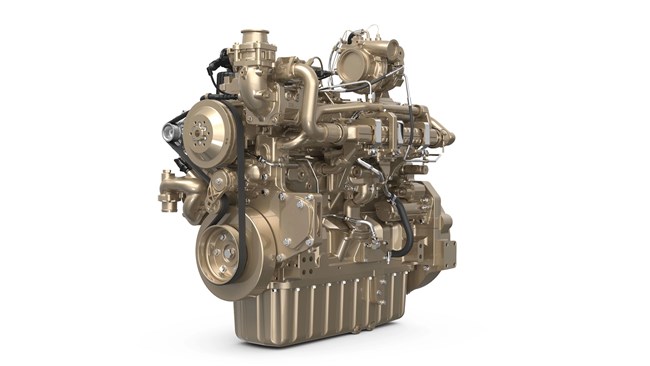

John Deere JD9P IHR

Double tap to zoom

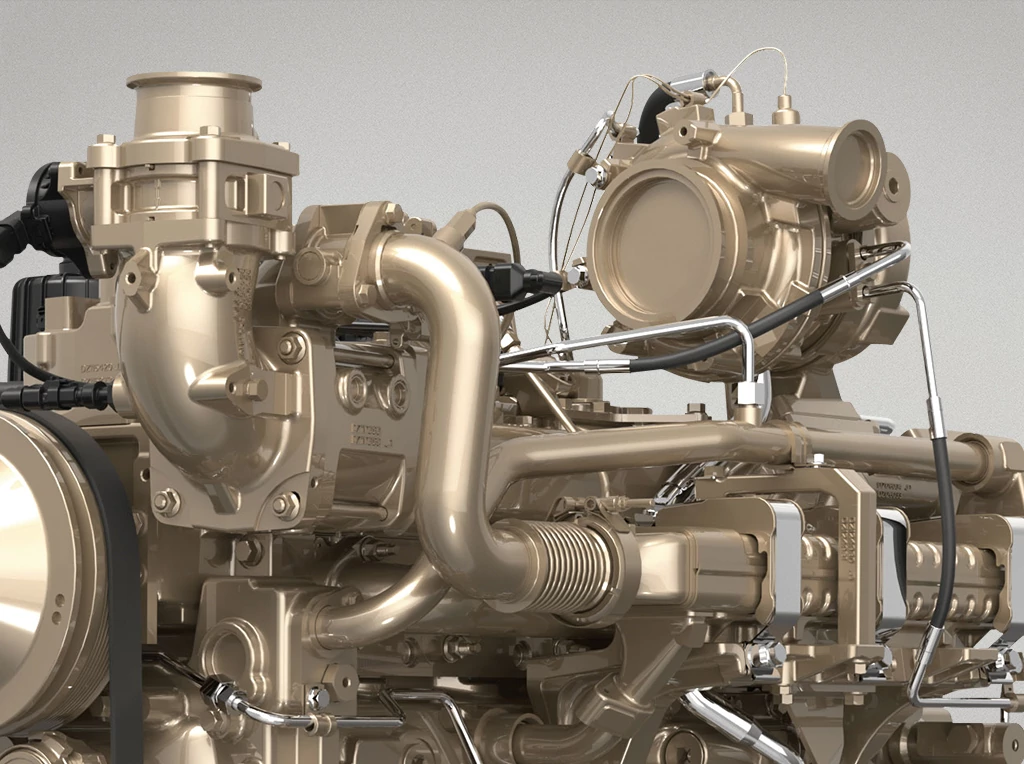

The single-turbo option improves integration and packaging for a cost-effective power solution.

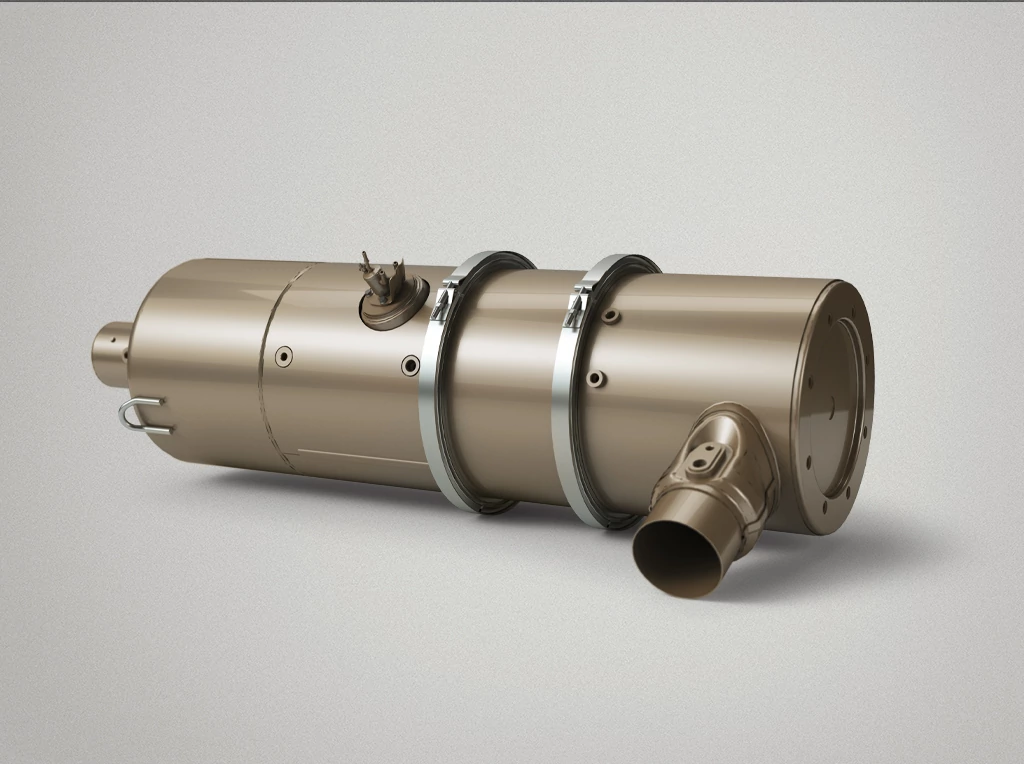

The engine’s simplified in-line aftertreatment system reduces connection points and streamlines integration.

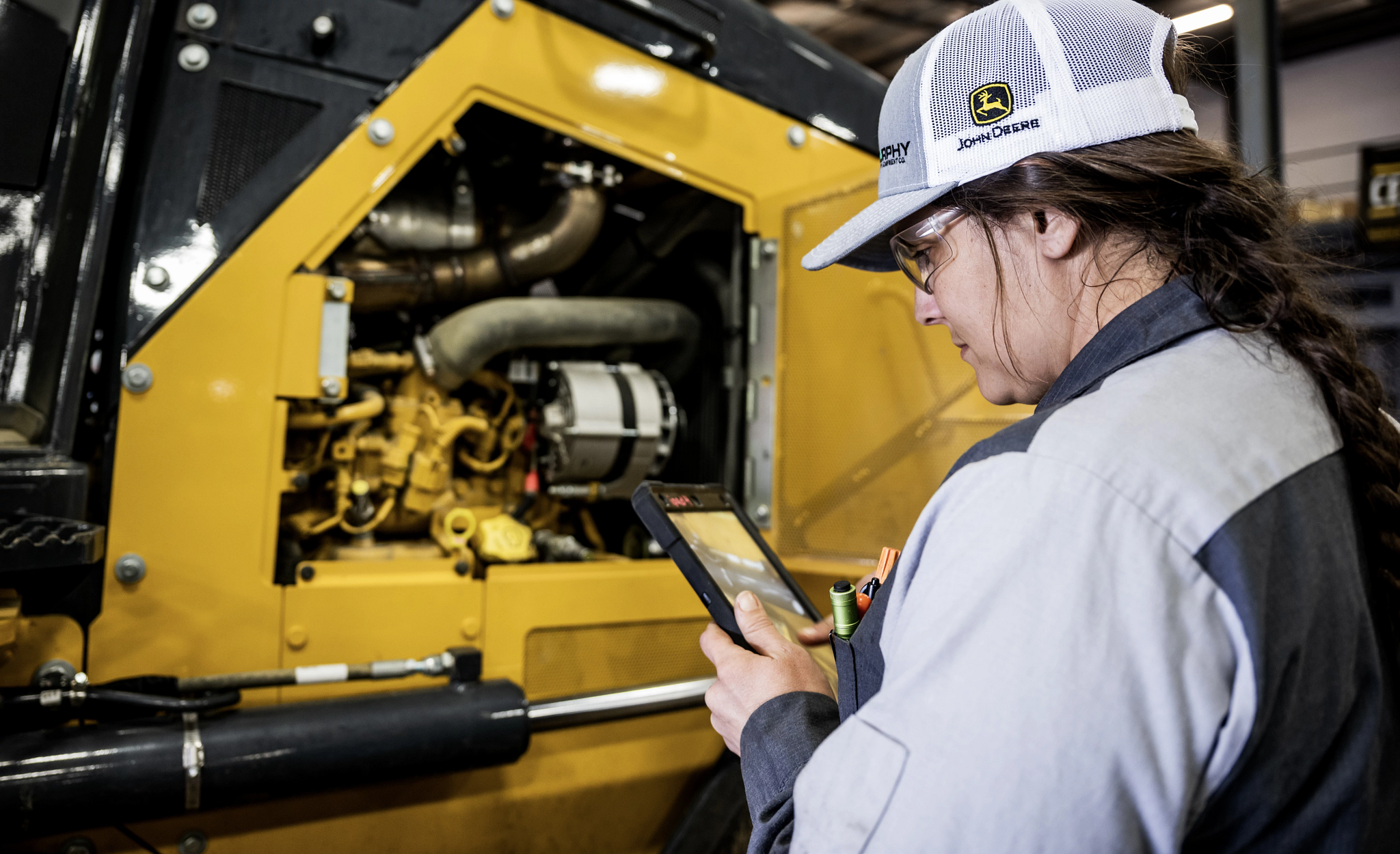

The JD9 engine comes equipped with John Deere Connected Support™ remote monitoring and diagnostics.

Number of Cylinders	6
Displacement	9 L
Engine Type	In-line, 4-stroke
Aspiration	Turbocharged, air-to-air aftercooled
Turbo	Variable Geometry (VGT)
Aftertreatment Options	DOC/DPF/SCR
Emissions Certifications	EPA Final Tier 4/EU Stage V
Rated Power Minimum	274.9 hp
Rated Power Minimum	205 kW
Rated Power Maximum	375.5 hp
Rated Power Maximum	280 kW
Rated Speed	2000-2200 rpm
Peak Torque	1195.2 lb-ft
Peak Torque	1600 Nm
Length	50.47 in.
Length	1282 mm
Width	31.3 in.
Width	795 mm
Height	47.56 in.
Height	1208 mm
Weight, Dry	2200.6 lb.
Weight, Dry	998 kg

JD9P IHR
