John Deere JD4G IHR
Double tap to zoom

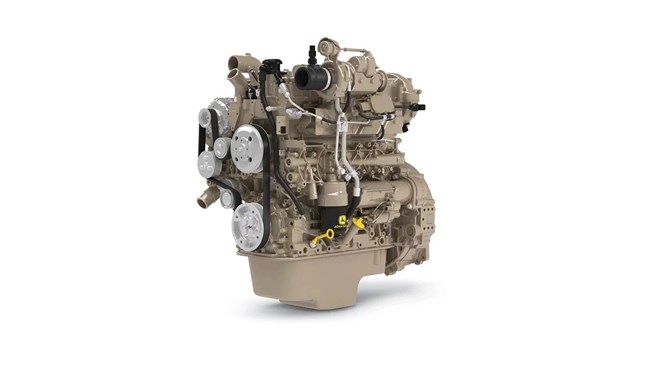

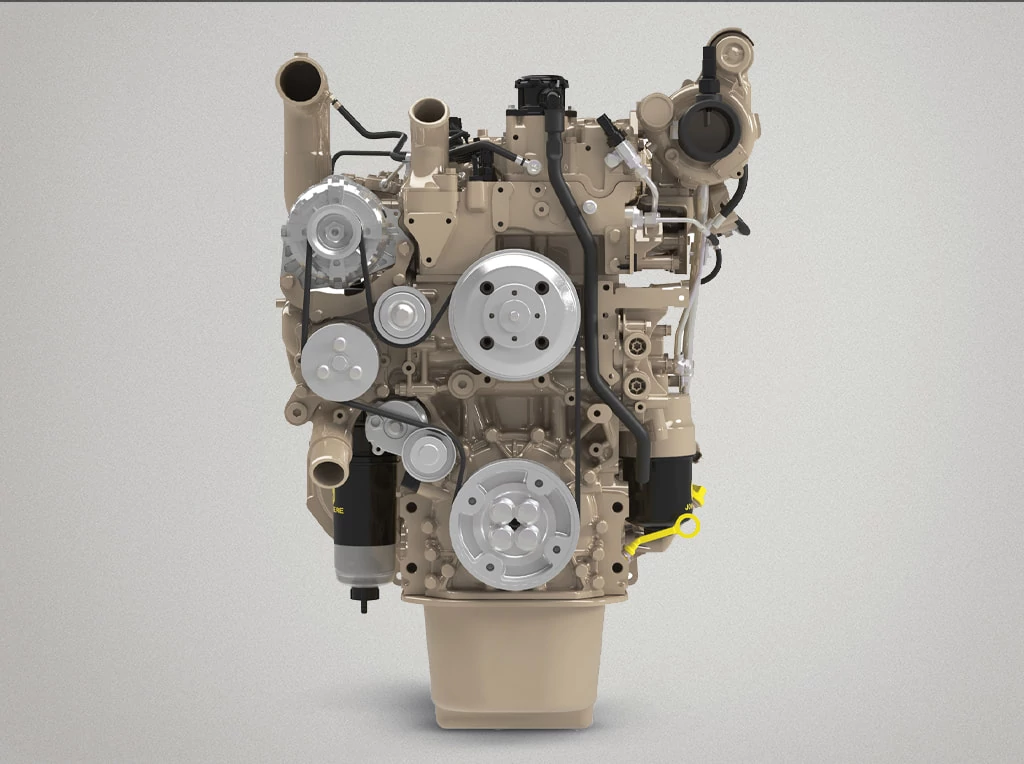

JD4G IHR
Industrial Engines
Overview:
John Deere's next generation engines are simple to integrate, easy to service, and share many common maintenance parts.
- 63 – 129 kW
- EPA Final Tier 4/EU Stage V
- Long Service Intervals
- Compact Power
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features

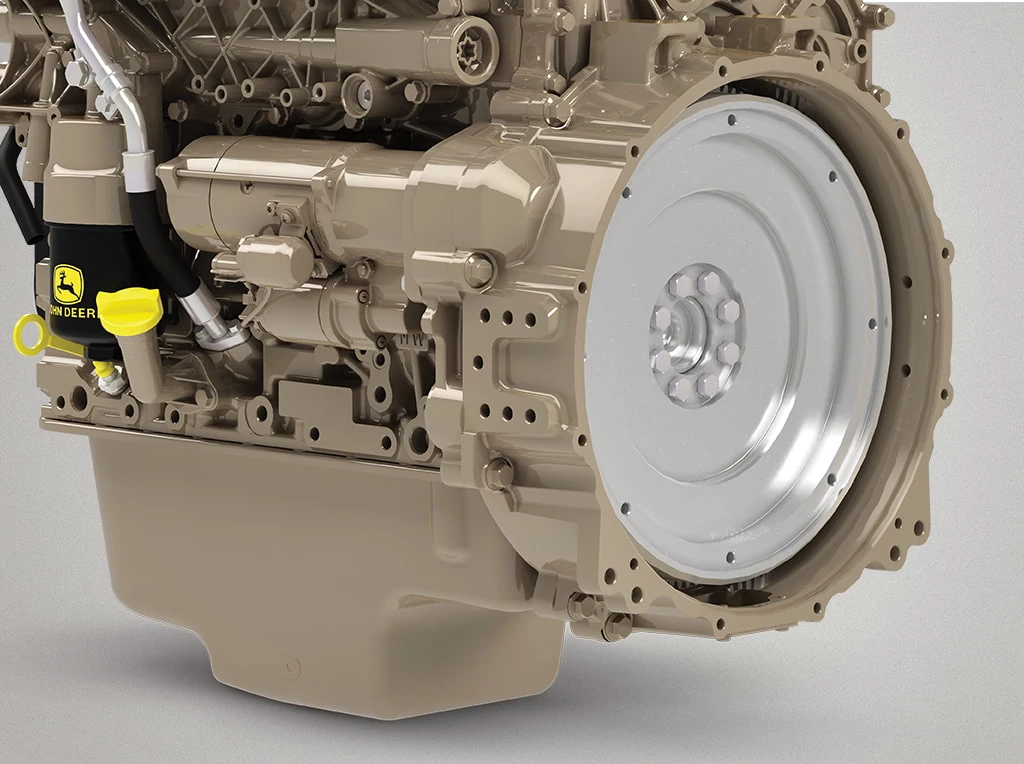

Compact Engine Package
The JD4 features a significant reduction in package size and weight compared to the John Deere 4.5L single turbo engine. This compact design offers customers improved visibility and fuel efficiency.

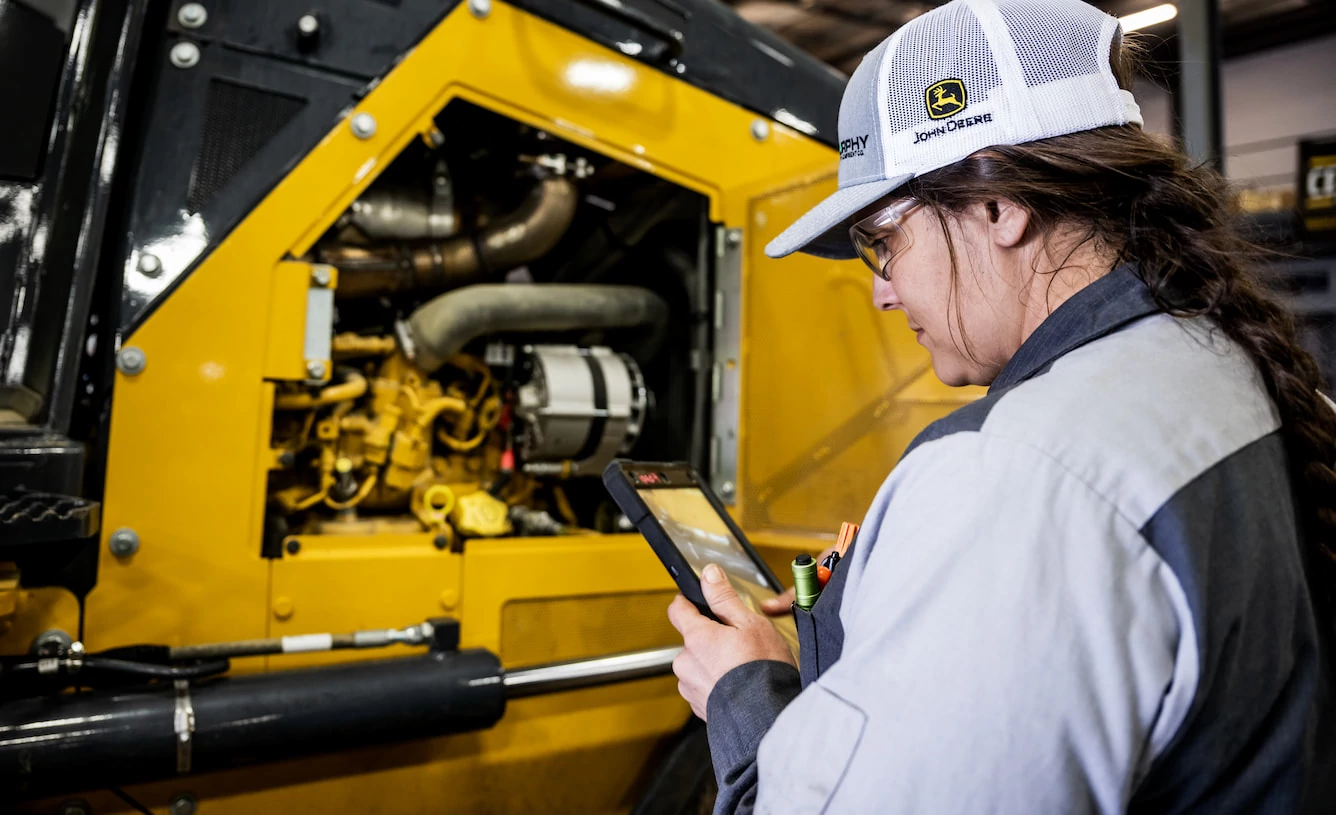

Reliability and Uptime
The JD4 offers extended fluid service intervals of 750 hours (1,000 hours possible), reducing maintenance costs for customers. Hydraulic lash adjusters decrease valve wear and eliminate valve lash maintenance.
Engine Performance
The JD4 features more power in a compact package and a rear gear train that offers customers low noise and higher PTO power. The engine also has an extended single turbo range for improved high-load capacity and productivity.
Specifications
Engine
| Number of Cylinders | 4 |
| Displacement | 3.9 L |
| Engine Type | In-line, 4-stroke |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Turbo | Wastegate (WGT) |
| Aftertreatment Options | DOC/DPF/SCR |
| Emissions Certifications | EPA Final Tier 4/EU Stage V |
| Rated Power Minimum | 84.5 hp |
| Rated Power Minimum | 63 kW |
| Rated Power Maximum | 173 hp |
| Rated Power Maximum | 129 kW |
| Rated Speed | 2200 rpm |
| Peak Torque | 268.5-528.8 lb-ft |
| Peak Torque | 364-717 Nm |
| Length | 32.4 in. |
| Length | 823 mm |
| Width | 25.8 in. |
| Width | 655 mm |
| Height | 33.2 in. |
| Height | 844 mm |
| Weight, Dry | 1045 lb. |
| Weight, Dry | 474 kg |
