John Deere JD18X IHR
Double tap to zoom

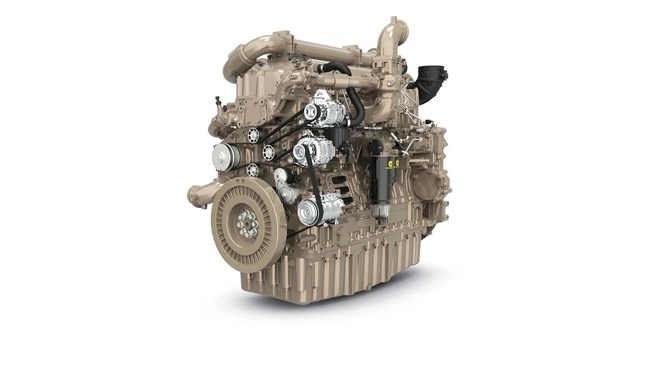

JD18X IHR
Industrial Engines
Overview:
John Deere's next generation engines are simple to integrate, easy to service, and share many common maintenance parts.
- 522–677 kW (700–908 hp)
- EPA Final Tier 4/EU Stage V
- Exceptional Power, Ultimate Performance
- No Aftertreatment
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Extended Power Range

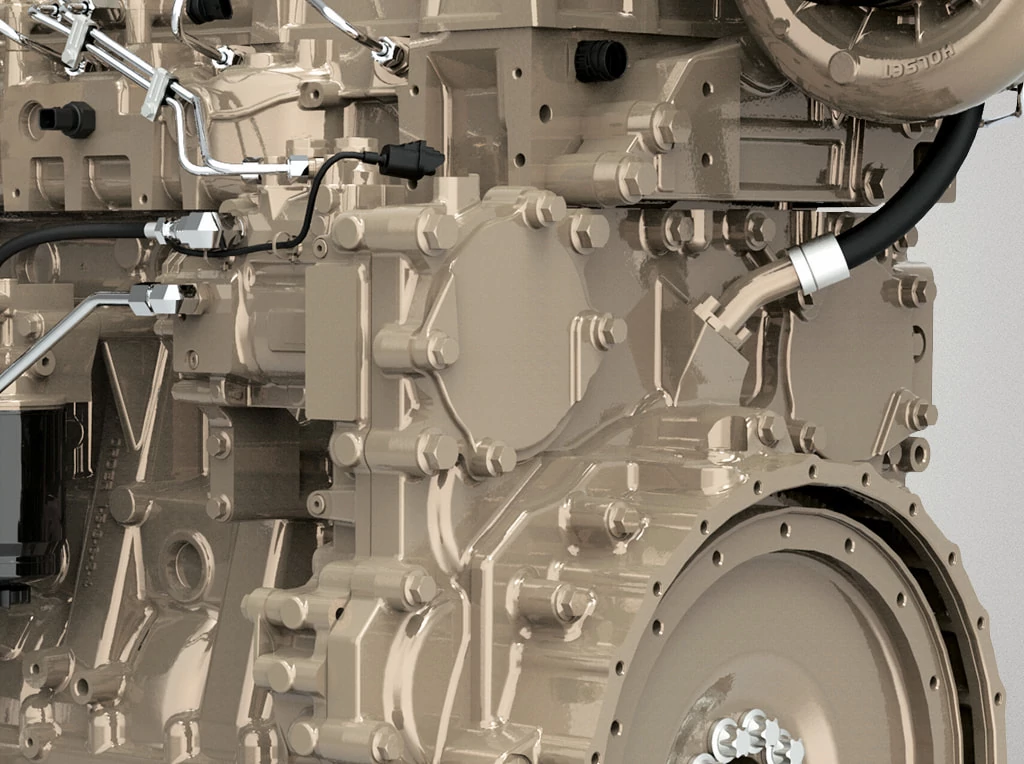

With an extended power range of 522 - 677 kW (700 - 908 hp), the option for up to two rear auxiliary drives produces a total of 902 Nm (665 lb-ft) maximum torque.
Fluid Management

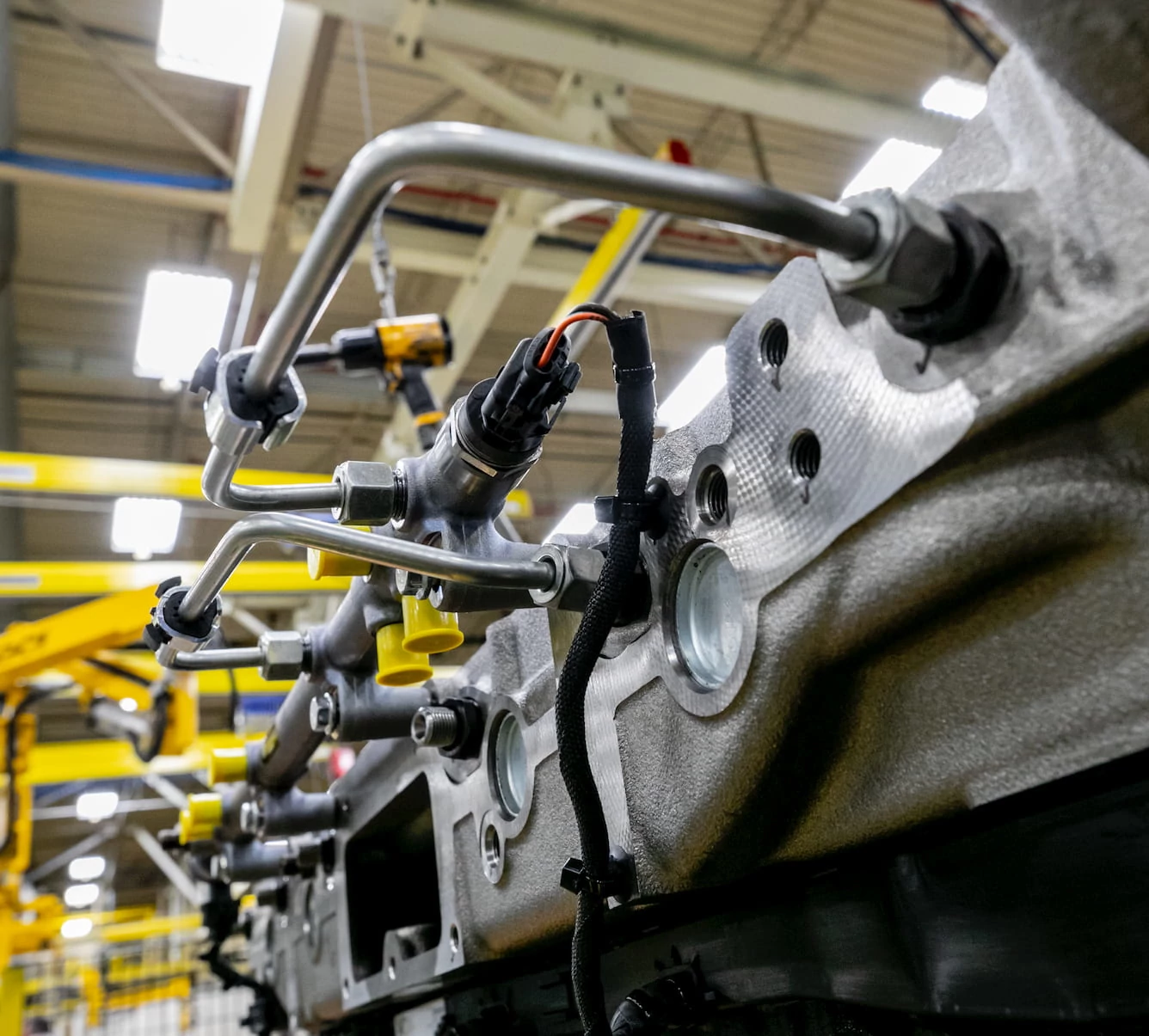

The JD18 features new combustion technology to meet emissions regulations without requiring aftertreatment, eliminating the need for DEF and reducing fluid management. The high-pressure common rail (HPCR) fuel system allows the engine to deliver optimized fluid consumption.

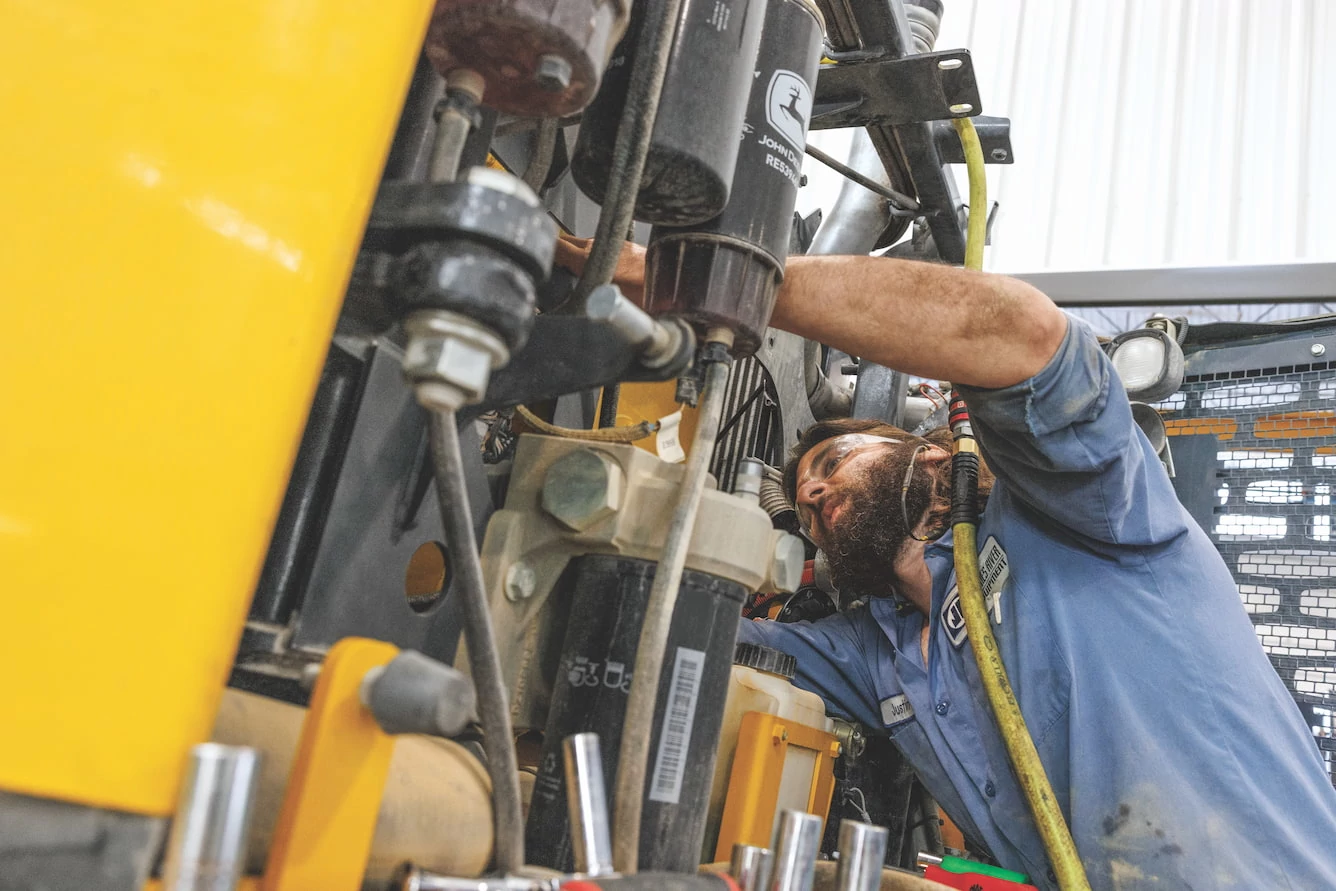

Serviceability and Repairability
Designed with ease of service and repair in mind, the JD18 boasts hydraulic lash adjusters that offer a maintenance-free valve train. Improved John Deere model-based controls offer better diagnostic capabilities, more easily and accurately diagnosing the the target source of engine performance issues and reducing downtime.
Specifications
Engine
| Number of Cylinders | 6 |
| Displacement | 18 L |
| Engine Type | In-line, 4-stroke |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Turbo | Series |
| Emissions Certifications | EPA Final Tier 4/EU Stage V |
| Rated Power Minimum | 700 hp |
| Rated Power Minimum | 522 kW |
| Rated Power Maximum | 908 hp |
| Rated Power Maximum | 677 kW |
| Rated Speed | 1900 rpm |
| Peak Torque | 3136 lb-ft |
| Peak Torque | 4250 Nm |
| Length | 68.9 in. |
| Length | 1750 mm |
| Width | 36.2 in. |
| Width | 920 mm |
| Height | 59.3 in. |
| Height | 1507 mm |
| Weight, Dry | 4671 lb. |
| Weight, Dry | 2119 kg |
