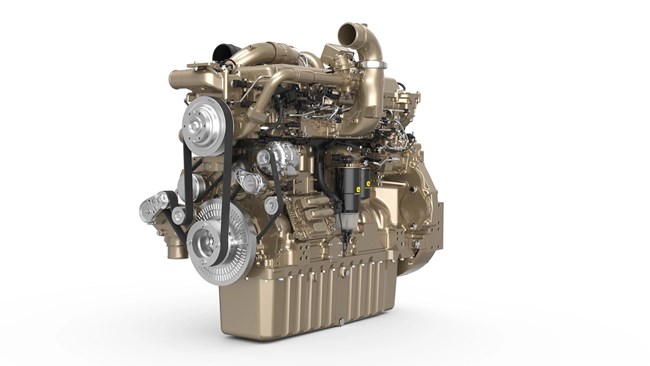

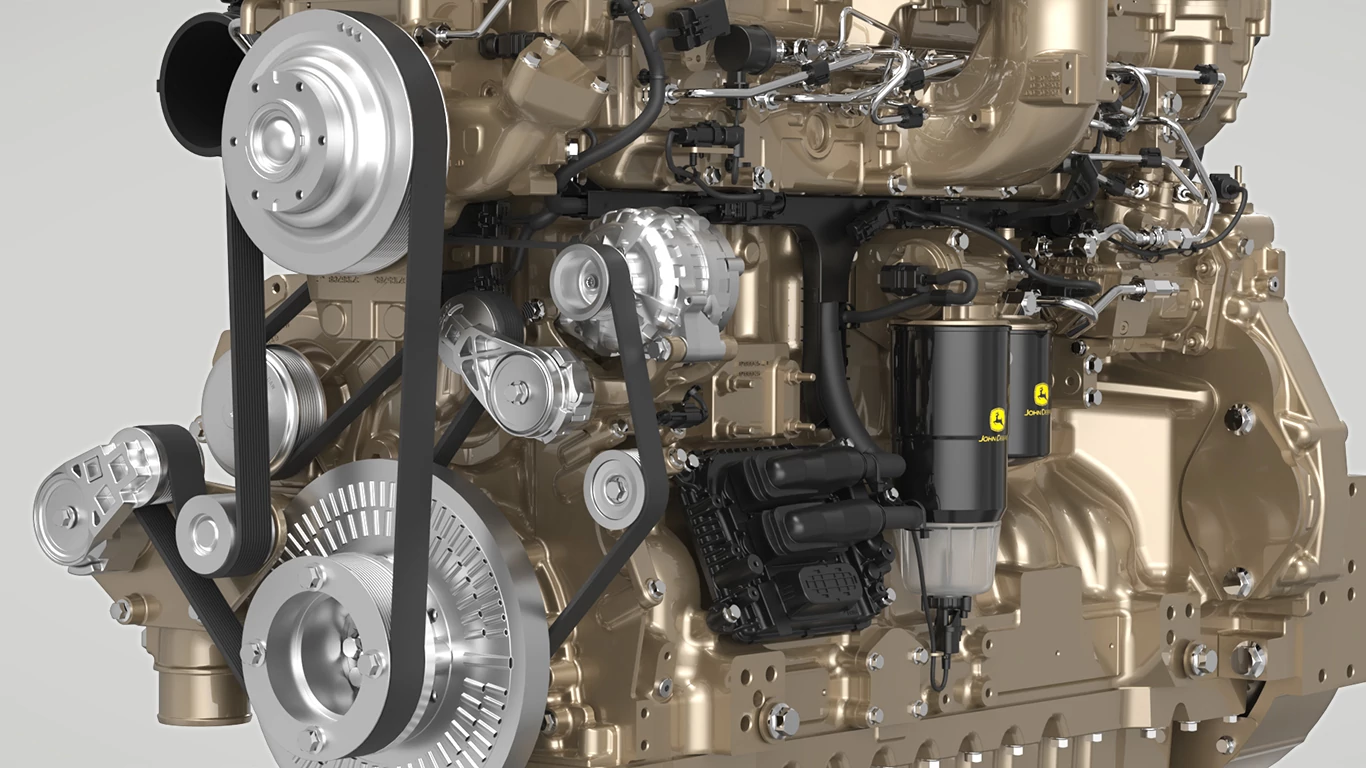

John Deere JD14X ILR
Double tap to zoom
JD14X ILR
Industrial Engines
Overview:
John Deere's next generation engines are simple to integrate, easy to service, and share many common maintenance parts.
- 391–510 kW (524–684 hp)
- EPA Tier 3/Stage lll A
- Exceptional Power, Ultimate Performance
- Quiet Operation
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Solid Performance
The JD14 offers more power per litre than 13.5L configurations with 14 times higher power and 11% increased peak torque. It allows your machines to work faster, lift more, and operate more efficiently than ever before.
Easy to Maintain
Hydraulic lash adjusters decrease valve wear and provide longer engine life while eliminating valve lash maintenance. An advanced control system analyse sensor data to keep operators working without interruption. Prognostic capabilities are built into the engine to help users identify potential problems and schedule service prior to downtime.
Operational Flexibility
Shorter and narrower to fit more machines with minimal reconfiguration, the JD14 features common connection points across emissions configurations to optimize packaging. It also offers up to two auxiliary drives with greater power capacity and integration flexibility compared to 13.5L configurations.
Specifications
Engine
| Number of Cylinders | 6 |
| Displacement | 13.6 L |
| Engine Type | Industrial Diesel |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Turbo | Series |
| Emissions Certifications | EPA Tier 3/Stage III A |
| Rated Power Minimum | 391 kW |
| Rated Power Maximum | 510 kW |
| Rated Speed | 1900 rpm |
| Peak Torque | 2495-3050 Nm |
| Length | 57.64 in. |
| Length | 1464 mm |
| Width | 33.98 in. |
| Width | 863 mm |
| Height | 53.54 in. |
| Height | 1360 mm |
| Weight, Dry | 3421 lb. |
| Weight, Dry | 1552 kg |
