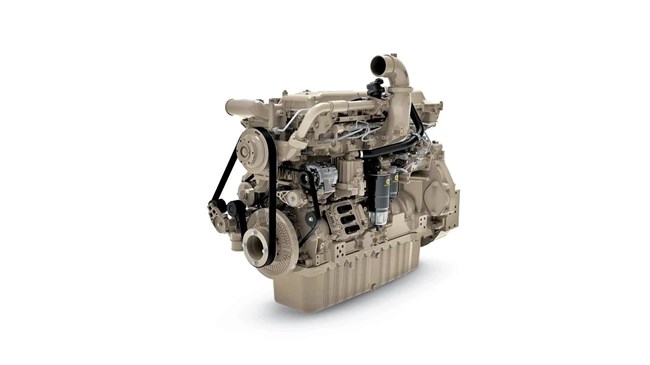

John Deere JD14P IHR
Double tap to zoom
JD14P IHR
Industrial Engines
Overview:
John Deere's next generation engines are simple to integrate, easy to service, and share many common maintenance parts.
- 300–410 kW (402–550 hp)
- EPA Final Tier 4/EU Stage V
- Balance of Performance and Cost
- Quiet Operation
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Solid Performance
The JD14 offers more power per litre than 13.5L configurations with 14 times higher power and 11% increased peak torque. It allows your machines to work faster, lift more, and operate more efficiently than ever before.
Easy to Maintain

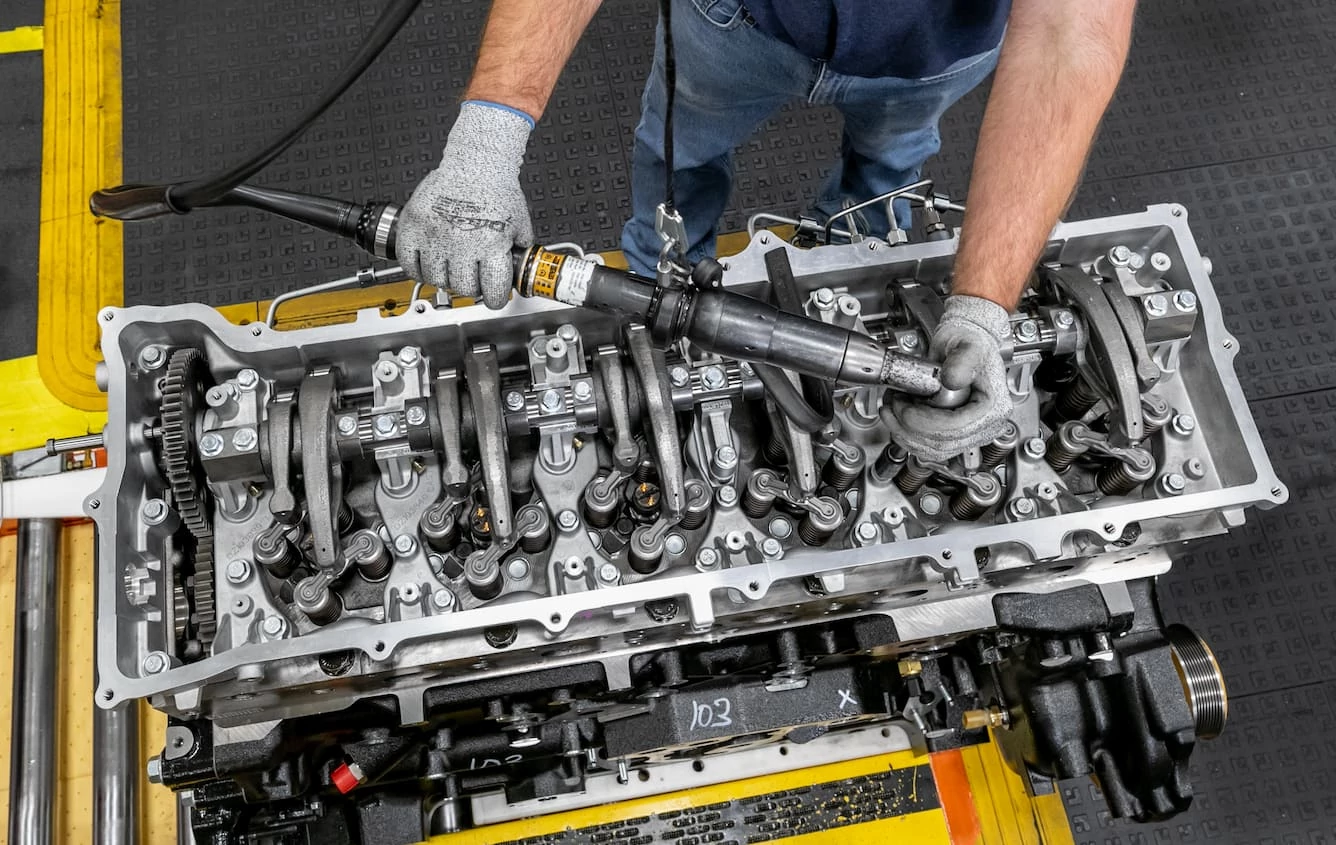

Hydraulic lash adjusters decrease valve wear and provide longer engine life while eliminating valve lash maintenance. An advanced control system analyse sensor data to keep operators working without interruption. Prognostic capabilities are built into the engine to help users identify potential problems and schedule service prior to downtime.
Operational Flexibility

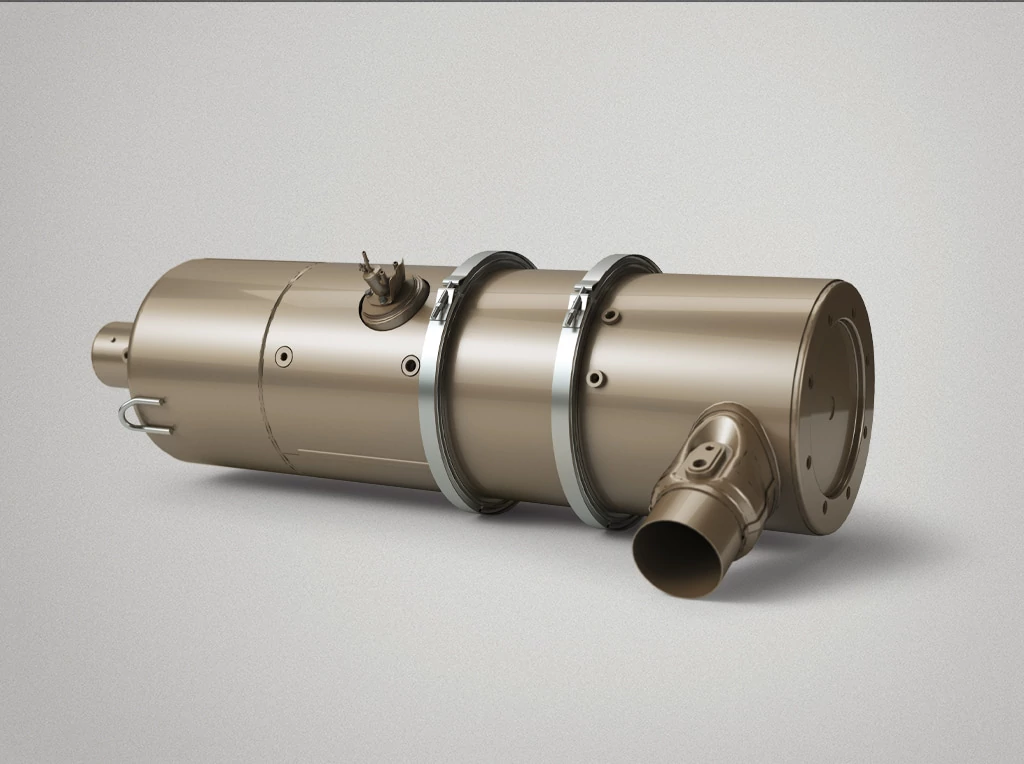

Shorter and narrower to fit in more machines with minimal configuration, the JD14's next-generation integrated control system features a durable in-line aftertreatment that provides unified packaging to reduce connection points and improve reliability. Available in single-and dual-turbo configurations.
Specifications
Engine
| Number of Cylinders | 6 |
| Displacement | 13.6 L |
| Engine Type | In-line, 4-stroke |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Turbo | Wastegate (WGT) |
| Aftertreatment Options | DOC/DPF/SCR |
| Emissions Certifications | EPA Final Tier 4/EU Stage V |
| Rated Power Minimum | 402.3 hp |
| Rated Power Minimum | 300 kW |
| Rated Power Maximum | 549 hp |
| Rated Power Maximum | 410 kW |
| Rated Speed | 1900 rpm |
| Peak Torque | 1464-1851 lb-ft |
| Peak Torque | 1986-2510 Nm |
| Length | 59 in. |
| Length | 1498 mm |
| Width | 35 in. |
| Width | 890 mm |
| Height | 53.8 in. |
| Height | 1366 mm |
| Weight, Dry | 3236 lb. |
| Weight, Dry | 1468 kg |
