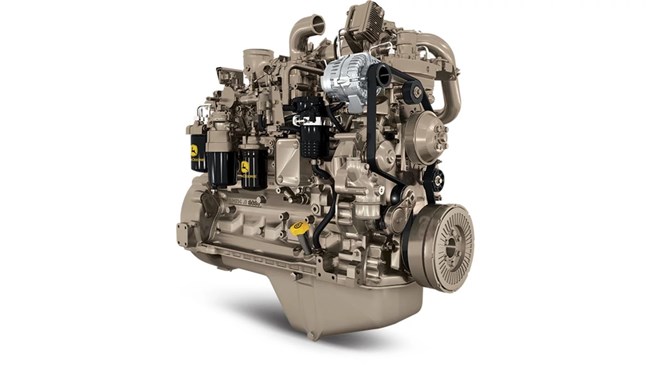

John Deere 6.8X IHR
Double tap to zoom
6.8X IHR
Industrial Engines
Overview:
John Deere industrial diesel engines are built with responsive power to give you fluid efficiency and day-to-day reliability.
- 6 Cylinder, In-Line, 4-Stroke Diesel
- 168 – 224 kW (225 – 300 hp)
- EPA Final Tier 4/EU Stage V
- Excellent Performance and Responsiveness
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
Premium Choice
Exceptional power, ultimate performance, and leading technology.
Ultimate Performance

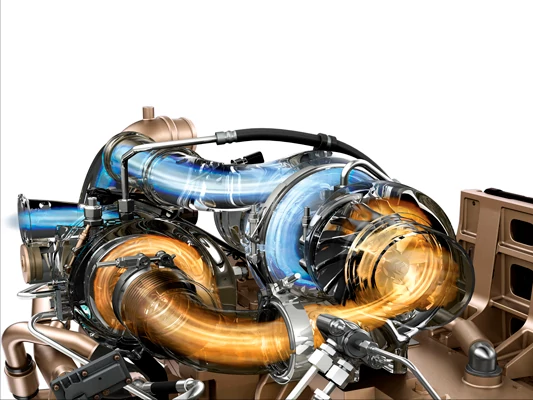

All displacements feature series turbochargers to deliver excellent performance and responsiveness.
Proven Aftertreatment
PowerTech™ PSS engines feature proven PowerTech™ Plus technology that includes a DOC/DPF and an SCR system designed specifically for off-highway applications.
Specifications
Engine
| Number of Cylinders | 6 |
| Displacement | 6.8 L |
| Engine Type | 6 cylinder, in-line, 4-stroke diesel |
| Aspiration | Turbocharged, air-to-air aftercooled |
| Turbo | Series |
| Aftertreatment Options | DOC/DPF/SCR |
| Emissions Certifications | EPA Final Tier 4/EU Stage V |
| Rated Power Minimum | 225 hp |
| Rated Power Minimum | 168 kW |
| Rated Power Maximum | 300 hp |
| Rated Power Maximum | 224 kW |
| Rated Speed | 2200-2400 rpm |
| Peak Torque | 737-842 lb-ft |
| Peak Torque | 1000-1141 Nm |
| Length | 46 in. |
| Length | 1160 mm |
| Width | 31 in. |
| Width | 780 mm |
| Height | 47 in. |
| Height | 1205 mm |
| Weight, Dry | 1731 lb. |
| Weight, Dry | 785 kg |
