John Deere 1400 Series
Double tap to zoom
1400 Series

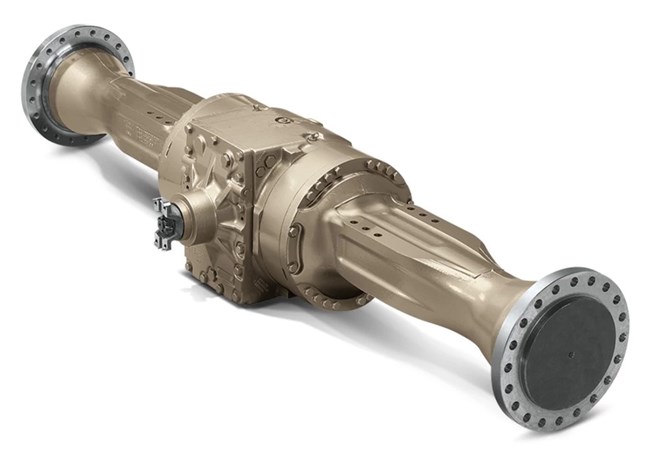

Axles
Overview:
John Deere axles are designed to operate in a wide range of rugged off-highway conditions, backed by a reputation of reliability and customer service.
- Built-In Durability
- Engineered for Heavy Loads
- Customizable to Your Needs
- Long Life, Less Maintenance
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Share This Product:
Features
High Torque, Low Speed
TeamMate II axles are designed for heavy-duty use in industries like forestry, mining, and construction. Our high-torque, low-speed axles use a building-block concept that enables us to offer thousands of configurations.
SWEDA
The Super Wide Extreme Duty Axle (SWEDA) minimizes ground disturbance with a 2540-mm flange-to-flange width, large axle shafts, and high outboard bearing capacities. Metal-to-metal face seals protect against leaks and debris in demanding conditions.
Advanced Braking and Differential Options
Multiple inboard wet disc brakes for cool, long-lasting operation and spark-free braking for hazardous environments. Choose from Standard, No-Spin, or operator-controlled John Deere DIF-LOK differentials for enhanced traction, maneuverability, and tire life.
Specifications
General Axle Data
| Peak Vertical Load | 300000 N |
| Peak Vertical Load | 67000 lb. |
| Peak Axle Output Torque (Per Axle Shaft) | 47400 Nm |
| Peak Axle Output Torque (Per Axle Shaft) | 420000 lb-in |
| Reduction Ratio, Minimum | 16.208 |
| Reduction Ratio, Maximum | 32.914 |
| Oil Capacity | 28 L |
| Oil Capacity | 30 qt |
| Flange To Flange Narrow | 1700 mm |
| Flange To Flange Narrow | 66.9 in. |
| Flange To Flange Narrow, 6.4:1 FD | 1810 mm |
| Flange To Flange Narrow, 6.4:1 FD | 72.3 in. |
| Flange To Flange Standard | 1953 mm |
| Flange To Flange Standard | 76.9 in. |
| Flange To Flange Standard, 6.4:1 FD | 2063 mm |
| Flange To Flange Standard, 6.4:1 FD | 81.2 in. |
| Flange To Flange, SWEDA | 2540 mm |
| Flange To Flange, SWEDA | 100 in. |
| Approximate Dry Weight | 862 kg |
| Approximate Dry Weight | 1900 lb. |
